Oscilloscope Probes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Attenuation Value | Bandwidth | Resistance - Input | Voltage - Max | Capacitance - Input | Cable Length | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

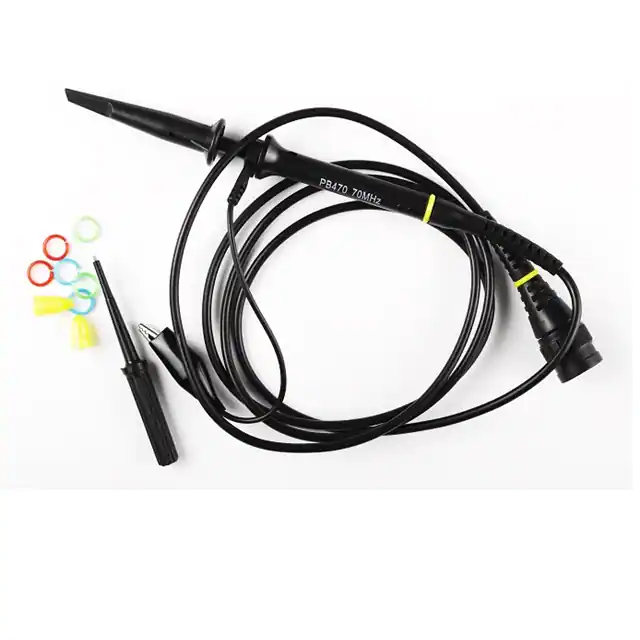

PB470OSCILLOSCOPE PROBE- 70 MHZ |
2 |
|
Datasheet |
- | Box | Active | Passive | 10:1 | 70MHz | 1M, 10M | 600V | 14pF | - | Black |
|

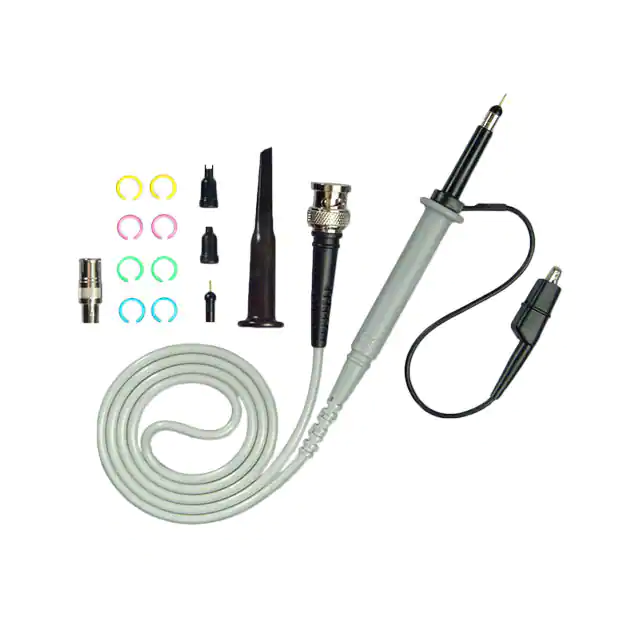

GE1501OSCOPE PROBE X1 30MHZ 1M |
0 |
|
Datasheet |
GE, Elditest™, Cal Test | Bulk | Obsolete | Passive | 1:1 | 30MHz | 1M | CAT II 300V | 45pF | 47.244" (1200.00mm) | Black and Gray |
|

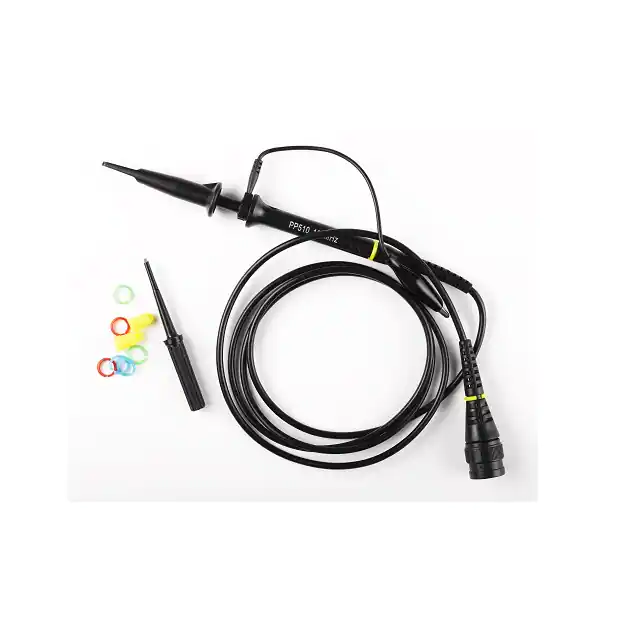

PP510OSCILLOSCOPE PROBE- 100 MHZ |
4 |
|
Datasheet |
- | Box | Active | Passive | 10:1 | 100MHz | 1M, 10M | 600V | 14pF | - | Black |
|

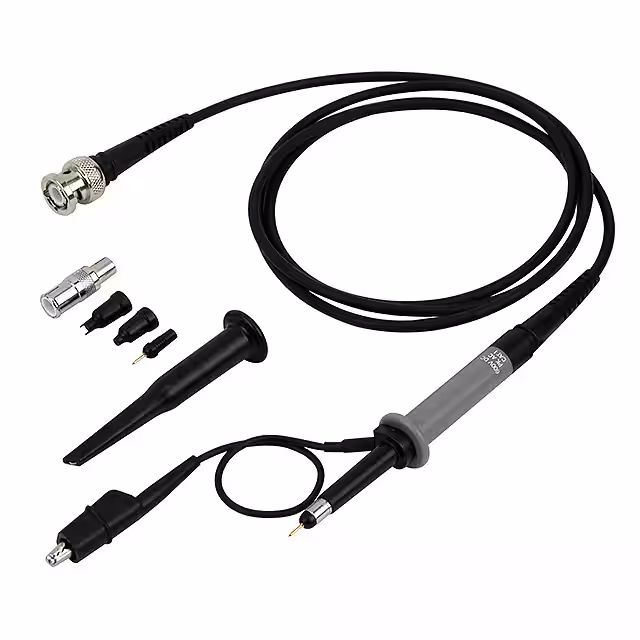

CT2678OSCOPE PROBE X1 15MHZ 1M |
0 |
|
Datasheet |
Cal Test | Bulk | Obsolete | Passive | 1:1 | 15MHz | 1M | CAT II 300V | 46pF | 47.244" (1200.00mm) | Black and Gray |
|
GE1502OSCOPE PROBE X1 21MHZ 1M |
0 |
|
Datasheet |
GE, Elditest™, Cal Test | Bulk | Active | Passive | 1:1 | 21MHz | 1M | CAT II 300V | 65pF | 78.740" (2000.00mm) | Black and Gray |
|
1P20B2OSCOPE PROBE X1 20MHZ 1M |
0 |
|
- |
1P20B | Bag | Active | Passive | 1:1 | 20MHz | 1M | 150V | 47pF | 78.740" (2000.00mm) | - |
|

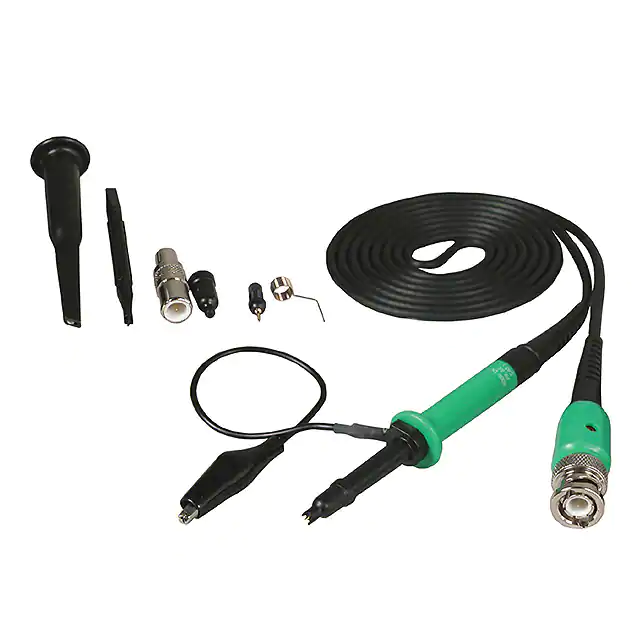

CT2676AOSCOPE PROBE X10 100MHZ 10M |
0 |
|
Datasheet |
Cal Test | Bulk | Obsolete | Passive | 10:1 | 100MHz | 10M | CAT II 300V | 16pF | 47.244" (1200.00mm) | Black and Green |
|
|
1P20B3OSCOPE PROBE X1 20MHZ 1M |
0 |
|
- |
1P20B | Bag | Active | Passive | 1:1 | 20MHz | 1M | 150V | 47pF | 118.000" (2997.20mm) | - |
|
|
UT-P06UNI-T UT-P06 Passive Scope Probe |
1 |
|
Datasheet |
UT-P00 | Retail Package | Active | Passive | 10:1 | 300MHz | 1M, 10M | 600V | 85pF ~ 115pF, 14.5pF ~ 17.5pF | 51.181" (1300.00mm) | Black |
|

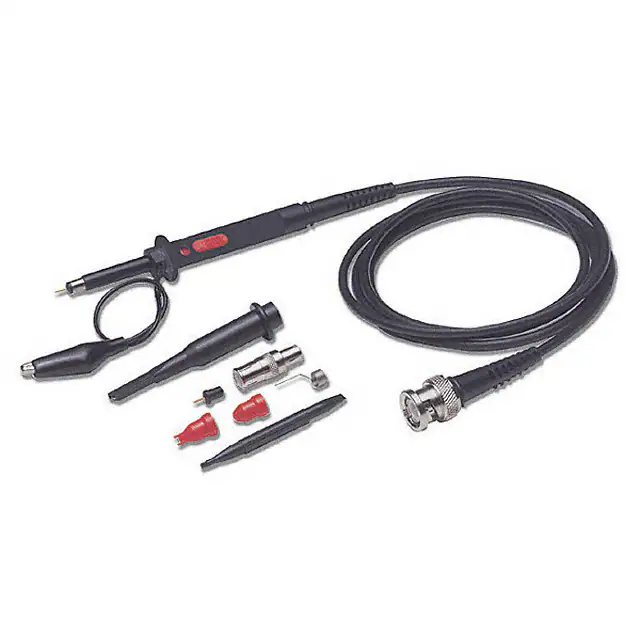

PR 33AOSCOPE P X1/X10 15/90MHZ 1M/10M |
0 |
|
Datasheet |
PR | Box | Obsolete | General Purpose | 1:1, 10:1 | 15MHz, 90MHz | 1M, 10M | 600V (DC + ACmax) | 46pF, 16pF | 48.000" (1219.20mm) | Black |
|
|
GE2502OSCOPE PROBE X1 35MHZ 1M |
0 |
|
Datasheet |
GE, Elditest™, Cal Test | Bulk | Active | Passive | 1:1 | 35MHz | 1M | CAT II 300V | 65pF | 78.740" (2000.00mm) | Black and Gray |
|
|
783539-01SET OF 6 LOGIC ANALYZER GRABBERS |
0 |
|
- |
- | Box | Active | Passive | - | - | - | - | - | - | - |
|
|
GE1511OSCOPE PROBE X10 150MHZ 10M |
0 |
|
Datasheet |
GE, Elditest™, Cal Test | Bulk | Obsolete | Passive | 10:1 | 150MHz | 10M | CAT II 300V | 12pF | 47.244" (1200.00mm) | Black and Gray |
|

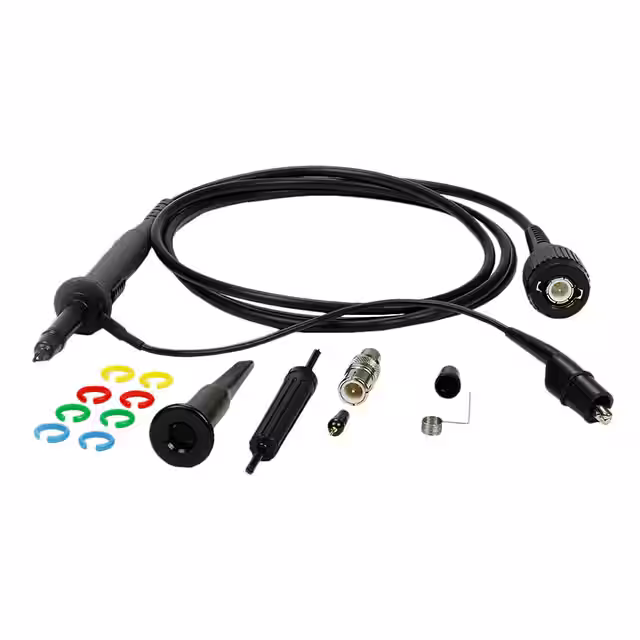

GE1521SAOSCOPE PRB X1/X10 150MHZ 1M/10M |
0 |
|
- |
GE, Elditest™, Cal Test | Bulk | Obsolete | Passive | 1:1, 10:1 | 150MHz | 1M, 10M | CAT II 300V | 45pF, 12pF | 47.244" (1200.00mm) | Black and Gray |
|

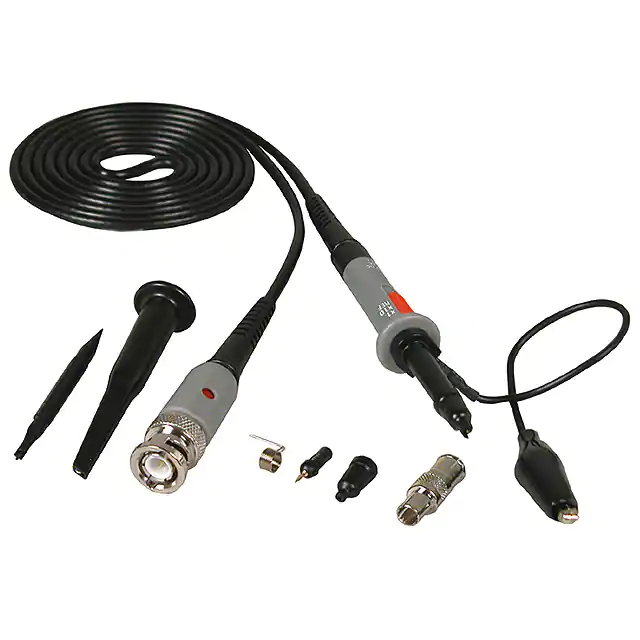

CT2850OSCOPE P X1/X10/REF 250MHZ 1/10M |
0 |
|
Datasheet |
Cal Test | Bulk | Obsolete | Passive | 1:1, 10:1, Ref | 250MHz | 1M, 10M | CAT II 300V | 90pF, 14pF | 47.244" (1200.00mm) | Black and Gray |
|

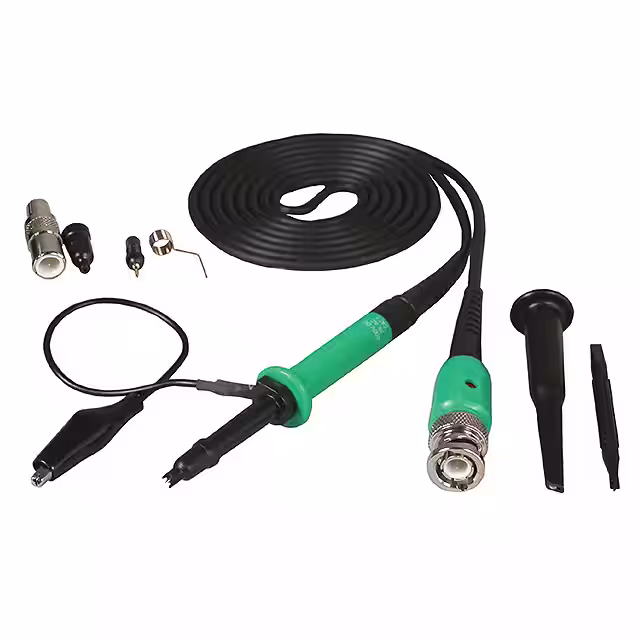

CT2840OSCOPE PROBE X10 250MHZ 10M |
0 |
|
Datasheet |
Cal Test | Bulk | Obsolete | Passive | 10:1 | 250MHz | 10M | CAT II 300V | 14pF | 47.244" (1200.00mm) | Black and Green |
|
|
GE2511OSCOPE PROBE X10 250MHZ 10M |
0 |
|
Datasheet |
GE, Elditest™, Cal Test | Bulk | Obsolete | Passive | 10:1 | 250MHz | 10M | CAT II 300V | 12pF | 47.244" (1200.00mm) | Black and Gray |
|
|
1155-0613PROBE KIT,STAKE-GROUNDING |
0 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - |
|
CT2677AOSCOPE PROBE X10 200MHZ 10M |
0 |
|
- |
Cal Test | Bulk | Active | Passive | 10:1 | 200MHz | 10M | CAT II 300V | 15pF | 47.244" (1200.00mm) | Black and Green |
|

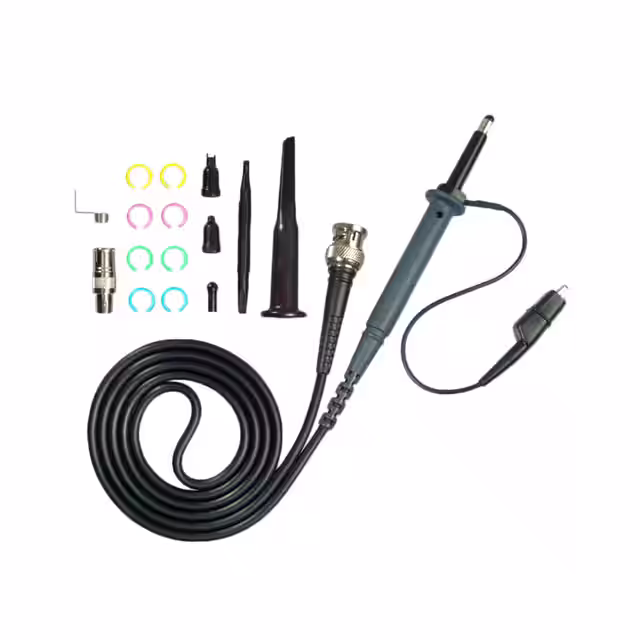

GE1512OSCOPE PROBE X10 135MHZ 10M |
0 |
|
Datasheet |
GE, Elditest™, Cal Test | Bulk | Active | Passive | 10:1 | 135MHz | 10M | CAT II 300V | 14pF | 47.244" (1200.00mm) | Black and Gray |
