Oscilloscopes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Bandwidth | Channels | Display Type | Interface | Memory Size | Function | Probe Type | Sampling Rate (Per Second) | Input Impedance | Rise Time (Typ) | Voltage - Input (Max) | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XDS3064AEO-SCOPE 60MHZ 4 CH 1GS/S |
49 |
|
Datasheet |
XDS3000-E | Box | Active | Bench | 60 MHz | 4 | LCD - Color | Ethernet, USB | 40Mpts | Record, DMM | Passive 10:1 (4) | 125M | 1M - 15pF | 5.8 ns | - | 100 ~ 240VAC |
|
MSO7102TDO-SCOPE 100MHZ 2 CH 1GS/S |
48 |
|
Datasheet |
MSO | Box | Active | Bench | 100 MHz | 2 | LCD - Color | USB | 2Mpts | Record | Passive 10:1 (2) | 1G | 1M - 15pF | 3.5 ns | 400V | 100 ~ 240VAC |
|
TAO3104TABLET O-SCOPE, 4CH/100MHZ/8-BIT |
43 |
|
Datasheet |
TAO3000 | Box | Active | Handheld | 100 MHz | 4 | LCD - Color (Touch) | LAN, USB | - | Record, Save, Recall | Passive 10:1 (2) | 1G | 1M | 3.5 ns | CAT II 400V | 100 ~ 240VAC |
|
XDS3064AEVO-SCOPE 60MHZ 4 CH 1GS/S |
50 |
|
Datasheet |
XDS3000 | Box | Active | Bench | 60 MHz | 4 | LCD - Color | Ethernet, RS232, USB | - | Record | - | 1G | 1M - 15pF | 5.8 ns | CAT II 400V | 100 ~ 240VAC |
|
XDS3102AVMAG21O-SCOPE 100MHZ 2 CH 1GS/S |
50 |
|
Datasheet |
XDS3000 | Box | Active | Bench | 100 MHz | 2 | LCD - Color | Ethernet, RS232, USB | - | Record | - | 1G | 1M - 15pF | 3.5 ns | CAT II 300V | 100 ~ 240VAC |
|
TAO3102ATABLET O-SCOPE,2CH/100MHZ/14-BIT |
49 |
|
Datasheet |
TAO3000 | Box | Active | Handheld | 100 MHz | 2 | LCD - Color (Touch) | LAN, USB | - | Record, Save, Recall | Passive 10:1 (2) | 1G | 1M | 3.5 ns | CAT II 400V | 100 ~ 240VAC |
|
TAO3072ATABLET O-SCOPE, 2CH/70MHZ/14-BIT |
49 |
|
Datasheet |
TAO3000 | Box | Active | Handheld | 70 MHz | 2 | LCD - Color (Touch) | LAN, USB | - | Record, Save, Recall | Passive 10:1 (2) | 1G | 1M | 5 ns | CAT II 400V | 100 ~ 240VAC |
|
DHO924S250MHz, 1.25GSa/s, 4 channels, 1 |
338 |
|
Datasheet |
DHO900 | Box | Active | Bench | 250 MHz | 4 Analog | LCD - Color | RS232, USB | 50Mpts | Record, Playback | Passive (4) | 1.25G | 1M - 15pF | 1.4 ns | CAT I 300V | 12VDC |
|
|
XDS3104AEO-SCOPE 100MHZ 4 CH 1GS/S |
90 |
|
Datasheet |
XDS3000-E | Box | Active | Bench | 100 MHz | 4 | LCD - Color | Ethernet, USB | 40Mpts | Record, DMM | Passive 10:1 (4) | 125M | 1M - 15pF | 3.5 ns | - | 100 ~ 240VAC |
|
MSO5074OSCILLOSCOPE 70MHZ DIG WITH 4CH |
77 |
|
Datasheet |
MSO5000 | Box | Active | Bench, Digital | 70 MHz | 4 Analog | LCD - Color (Touch) | Ethernet, GPIB, HDMI, USB | 200Mpts | Record, Playback, Save | Passive 1:1 (4) | 8G | 1M | 5 ns | CAT I 300V | 100 ~ 240VAC |
|
|
MSO8102TO-SCOPE 100MHZ 2 CH 2GS/S |
50 |
|
Datasheet |
MSO | Box | Active | Bench | 100 MHz | 2 | LCD - Color | USB | 2Mpts | Record | Passive 10:1 (2) | 2G | 1M - 15pF | 3.5 ns | 400V | 100 ~ 240VAC |
|
SDS8202VO-SCOPE 200MHZ 2 CH 2GS/S |
47 |
|
Datasheet |
SDS | Box | Active | Bench | 200 MHz | 2 | LCD - Color | Ethernet, USB | 10Mpts | Record | Passive 10:1 (2) | 2G | 1M - 15pF | 1.7 ns | 400V | 100 ~ 240VAC |
|
HDS4202M-NO-SCOPE 200MHZ 2 CH 1GS/S |
47 |
|
Datasheet |
HDS | Box | Active | Handheld | 200 MHz | 2 | LCD - Color | USB | 6kpts | Record, Playback | Passive 10:1 (2) | 1G | 1M - 15pF | 1.7 ns | CAT II 400V | 100 ~ 240VAC |
|
TAO3074ATABLET O-SCOPE, 4CH/70MHZ/14-BIT |
47 |
|
Datasheet |
TAO3000 | Box | Active | Handheld | 70 MHz | 4 | LCD - Color (Touch) | LAN, USB | - | Record, Save, Recall | Passive 10:1 (2) | 1G | 1M | 5 ns | CAT II 400V | 100 ~ 240VAC |
|
TAO3122ATABLET O-SCOPE,2CH/120MHZ/14-BIT |
47 |
|
Datasheet |
TAO3000 | Box | Active | Handheld | 120 MHz | 2 | LCD - Color (Touch) | LAN, USB | - | Record, Save, Recall | Passive 10:1 (2) | 1G | 1M | 2.9 ns | CAT II 400V | 100 ~ 240VAC |
|
|
XDS3104AO-SCOPE 100MHZ 4 CH 1GS/S |
50 |
|
Datasheet |
XDS | Box | Active | Bench | 100 MHz | 4 | LCD - Color | Ethernet, USB | 40Mpts | Record, DMM | Passive 10:1 (4) | 250M | 1M - 15pF | 3.5 ns | 400V | 100 ~ 240VAC |
|
XDS3202O-SCOPE 200MHZ 2 CH 2GS/S |
47 |
|
Datasheet |
XDS | Box | Active | Bench | 200 MHz | 2 | LCD - Color | Ethernet, USB | 40Mpts | Record, DMM | Passive 10:1 (2) | 2G | 1M - 15pF | 1.7 ns | - | 100 ~ 240VAC |
|

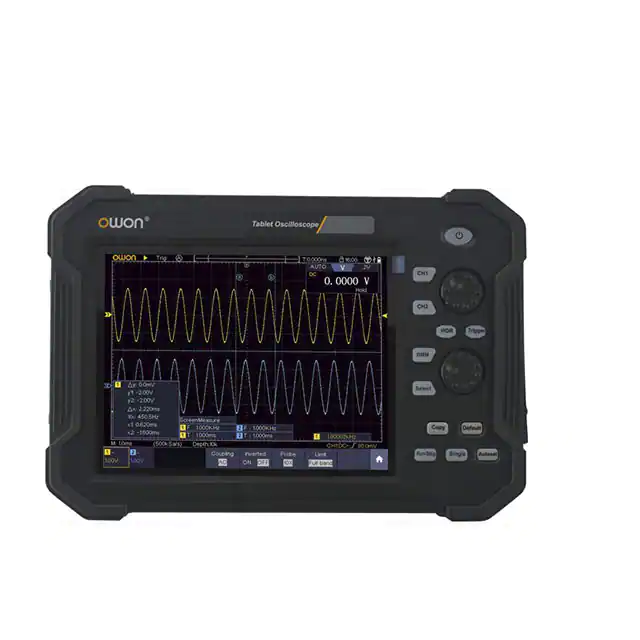

TAO3104ATABLET O-SCOPE,4CH/100MHZ/14-BIT |
36 |
|
Datasheet |
TAO3000 | Box | Active | Handheld | 100 MHz | 4 | LCD - Color (Touch) | LAN, USB | - | Record, Save, Recall | Passive 10:1 (2) | 1G | 1M | 3.5 ns | CAT II 400V | 100 ~ 240VAC |
|
XDS3204EO-SCOPE 200MHZ 4 CH 1GS/S |
48 |
|
Datasheet |
XDS3000 | Box | Active | Bench | 200 MHz | 4 | LCD - Color | Ethernet, RS232, USB | - | Record | - | 1G | 1M - 15pF | 1.75 ns | CAT II 400V | 100 ~ 240VAC |
|
|
DHO1104High Resolution 4 Channel, 100 M |
37 |
|
Datasheet |
DHO1000 | Box | Active | Bench | 100 MHz | 4 Analog | LCD - Color | RS232, USB | 100Mpts | Record, Playback | Passive (2) | 2G | 1M - 19pF | 3.5 ns | CAT I 300V | 100 ~ 240VAC |
