Oscilloscopes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Bandwidth | Channels | Display Type | Interface | Memory Size | Function | Probe Type | Sampling Rate (Per Second) | Input Impedance | Rise Time (Typ) | Voltage - Input (Max) | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109990016DSO QUAD ALUMINIUM ALLOY SILVER |
0 |
|
Datasheet |
DSO | Bulk | Obsolete | Handheld | 1 MHz | 2 Analog, 2 Digital | - | USB | 16kpts | - | - | 72M | - | - | 80V | - |
|
109990013DSO NANO V3 |
0 |
|
Datasheet |
DSO | Bulk | Discontinued at Digi-Key | Handheld | 200 kHz | 1 | LCD - Color | - | - | Save | Passive 1:1, 10:1 (2) | 1M | 500k | - | 80V | - |
|
109990026DIGITAL STORAGE OSCILLOSCOPE WIT |
0 |
|
- |
DSO | Bulk | Obsolete | Handheld | 1 MHz | 1 | LCD - Monochrome | - | - | Save | - | - | 1M | - | 50V | - |
|
SDS2202X-EOSCILLOSCOPE 2 CH 200 MHZ 7"TFT |
0 |
|
Datasheet |
SDS2000X-E | Box | Active | Bench, Digital | 200 MHz | 2 | LCD - Color | Ethernet, USB | 28Mpts | - | Passive (2) | 2G | - | - | CAT II 600V | - |
|
|

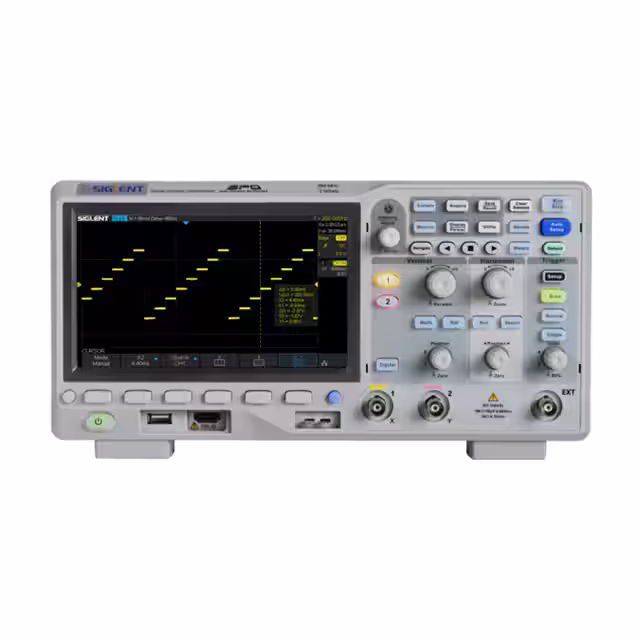

SDS2352X-EOSCILLOSCOPE 2CH 350 MHZ 7"TFT |
0 |
|
Datasheet |
SDS2000X-E | Box | Active | Bench, Digital | 350 MHz | 2 | LCD - Color | Ethernet, GPIB, USB | - | Record, Playback, Save | - | 2G | 1M | - | - | - |
|
SDS5032XOSCILLOSCOPE 4 CH 350 MHZ 10"TFT |
0 |
|
Datasheet |
SDS5000X | Box | Active | Bench, Digital | 350 MHz | 2 | LCD - Color | - | 250Mpts | - | - | 5G | - | - | - | - |
|
|
SDS5104XOSCILLOSCOPE 4 CH 1 GHZ 10"TFT |
0 |
|
Datasheet |
SDS5000X | Box | Active | Bench, Digital | 1 GHz | 4 Analog, 16 Digital | LCD - Color | USB | 250Mpts | Record, Save | - | 5G | - | - | - | - |
|

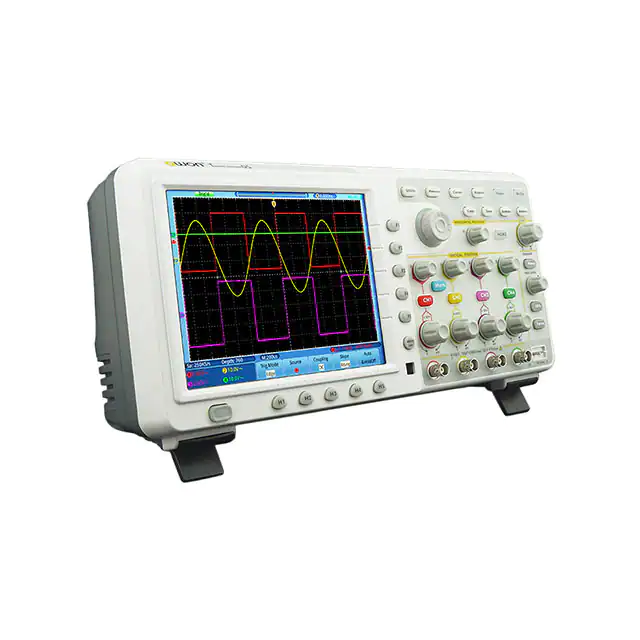

TDS8204O-SCOPE 200MHZ 4 CH 2GS/S |
0 |
|
Datasheet |
TDS | Box | Active | Bench | 200 MHz | 4 | LCD - Color | USB, VGA | 7.6Mpts | Record | Passive 10:1 (4) | 2G | 1M - 15pF | 1.7 ns | 400V | 100 ~ 240VAC |
|
MSO8202TO-SCOPE 200MHZ 2 CH 2GS/S |
0 |
|
Datasheet |
MSO | Box | Active | Bench | 200 MHz | 2 | LCD - Color | USB | 2Mpts | Record | Passive 10:1 (2) | 2G | 1M - 15pF | 1.7 ns | 400V | 100 ~ 240VAC |
|
|
TDS8104O-SCOPE 100MHZ 4 CH 2GS/S |
0 |
|
Datasheet |
TDS | Box | Active | Bench | 100 MHz | 4 | LCD - Color | USB, VGA | 7.6Mpts | Record | Passive 10:1 (4) | 2G | 1M - 15pF | 3.5 ns | 400V | 100 ~ 240VAC |
|
|
TDS7104O-SCOPE 100MHZ 4 CH 1GS/S |
0 |
|
Datasheet |
TDS | Box | Active | Bench | 100 MHz | 4 | LCD - Color | USB, VGA | 7.6Mpts | Record | Passive 10:1 (4) | 1G | 1M - 15pF | 3.5 ns | 400V | 100 ~ 240VAC |
|
VT-DSO-2810USB OSCILLOSCOPE & SIGNAL GEN. |
0 |
|
Datasheet |
28 | Retail Package | Active | Bench | 40 MHz | 2 | - | USB | 40kpts | Record, Save, Signal Generation, Spectrum Analysis | Passive 1:1, 10:1 | 100M | 1M - 15pF | 8.8 ns | 50V | 5VDC, USB Powered |
|
VT-DSO-2A20EUSB OSCILLOSCOPE & SIGNAL GEN. |
0 |
|
Datasheet |
2A | Retail Package | Active | Bench | 80 MHz | 2 | - | USB | 40kpts | Record, Save, Signal Generation, Spectrum Analysis | Passive 1:1, 10:1 | 200M | 1M - 15pF | 4.4 ns | 50V | 5VDC, USB Powered |
|

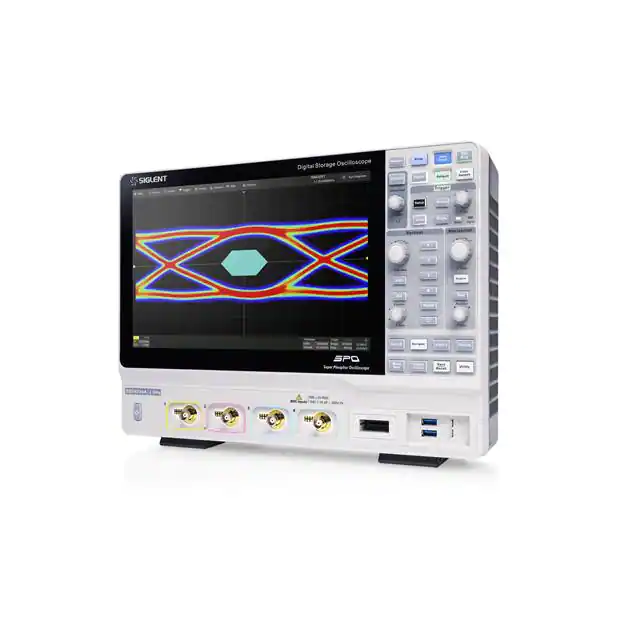

SDS6104AOSCILLOSCOPE 1 GHZ; 4 CHANNELS; |
0 |
|
Datasheet |
SDS6000A | Box | Active | Bench, Digital | 1 GHz | 4 Analog | LCD - Color (Touch) | Ethernet, USB | 16kpts | Record, Playback, Trend | Passive (1) | 5G | 1M - 20pF | 350 ps | 400V | 100 ~ 240VAC |
|
|
779945-03PCI-5152 OSCILLOSCOPE DEVICE, 30 |
0 |
|
- |
- | Box | Obsolete | Bench | 300 MHz | 2 Analog | - | - | - | - | - | 2G | - | - | - | - |
|
|
778758-02PCI-5122 OSCILLOSCOPE DEVICE, 10 |
0 |
|
- |
- | Box | Obsolete | Bench | 100 MHz | 2 Analog | - | - | 32Mpts | Record | - | 2G | 1M | - | - | - |
|
|
779466-01PXI-5114 PXI OSCILLOSCOPE, 125 M |
0 |
|
- |
- | Box | Obsolete | Bench | 125 MHz | 2 Analog | - | - | - | - | - | - | - | - | - | - |
|
|
780319-01PXI-5154 PXI OSCILLOSCOPE, 1 GHZ |
0 |
|
- |
- | Box | Obsolete | Bench | 1 GHz | - | - | - | - | - | - | 2G | - | - | - | - |
|
|
779686-01PCI-5105 OSCILLOSCOPE DEVICE, 60 |
0 |
|
- |
- | Box | Obsolete | Bench | 60 MHz | 8 Analog | - | - | - | - | - | - | - | - | - | - |
|
|
779587-01PXI-5142 PXI OSCILLOSCOPE, 100 M |
0 |
|
- |
- | Box | Obsolete | Bench, Digital | 100 MHz | 2 Digital | - | - | - | - | - | - | - | - | - | - |
