Oscilloscopes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Bandwidth | Channels | Display Type | Interface | Memory Size | Function | Probe Type | Sampling Rate (Per Second) | Input Impedance | Rise Time (Typ) | Voltage - Input (Max) | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HDO4054DGTL OSCOPE 12BIT 500MHZ 4CH |
0 |
|
Datasheet |
HDO4000 | Box | Obsolete | Bench, Digital | 500 MHz | 4 | LCD - Color (Touch) | Ethernet, USB | 25Mpts | Record, Save, Trend | Passive 10:1 (4) | 2.5G | 1M - 15pF | 700 ps | 400V | 100 ~ 240VAC |
|
HDO4024A-MS200 MHZ, 2.5 GS/S (10 GS/S WITH |
0 |
|
Datasheet |
HDO4000A Maui | Box | Obsolete | Bench, Digital | 200 MHz | 4 Analog, 16 Digital | LCD - Color (Touch) | Ethernet, GPIB, USB | 12.5Mpts | Record, Playback, Save, Trend | Passive 10:1 (4) | 10G | 1M - 12pF | 1.75 ns | 400V | 100 ~ 240VAC |
|
785770-11PXIE-5111 PXI OSCILLOSCOPE WITH |
0 |
|
- |
- | Box | Active | Bench | 350 MHz | 2 Analog | - | - | - | - | - | 3G | - | - | - | - |
|

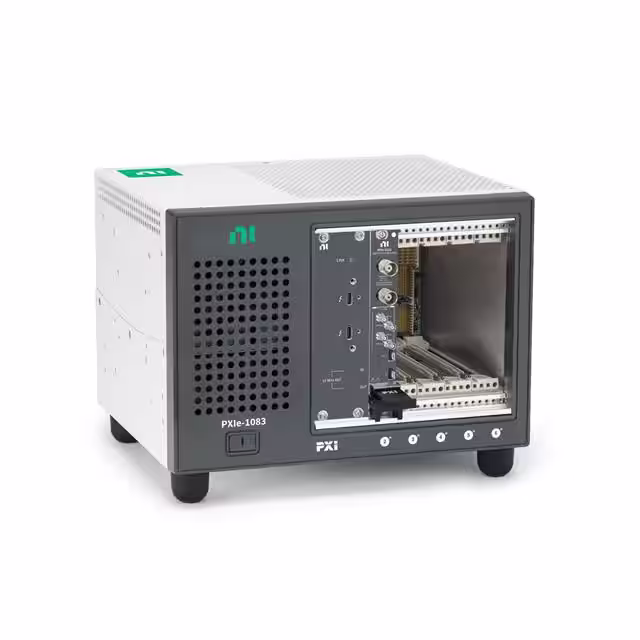

867012-01PXIE-5111 OSCOPE BUNDLE, 350 MHZ |
0 |
|
Datasheet |
NI PXI | Bulk | Active | Bench, Digital | 350 MHz | 2 | - | Thunderbolt™ 3 | - | Automation, Frequency Domain Analysis, Playback, Record, Save, Trend, Triggering | - | 3G | 50, 1M | 1 ns | 40V | 100 ~ 240VAC |
|
|
867012-02EXPANDABLE PXI BUNDLE BASED ON P |
0 |
|
- |
- | Bulk | Active | Bench | 350 GHz | 2 | - | - | - | - | - | - | - | - | - | - |
|
|
867012-04EXPANDABLE PXI BUNDLE BASED ON P |
0 |
|
- |
- | Bulk | Active | Bench | 350 MHz | 2 | - | - | - | - | - | - | - | - | - | - |
|
|
867012-03EXPANDABLE PXI BUNDLE BASED ON P |
0 |
|
- |
- | Bulk | Active | Bench | 350 MHz | 2 | - | - | - | - | - | - | - | - | - | - |
|
MSO 44MXS-BDGTL O-SCOPE MIX SGL 400MHZ DSO |
0 |
|
Datasheet |
WaveSurfer® MSO | Box | Obsolete | Bench, Digital | 400 MHz | 4 Analog, 18 Digital | LCD - Color (Touch) | Ethernet, GPIB, RS232, USB | 64Mpts | Record, Save, Trend | Passive 10:1 (4) | 5G | 1M - 16pF | 875 ps | 400V | 90 ~ 264VAC |
|

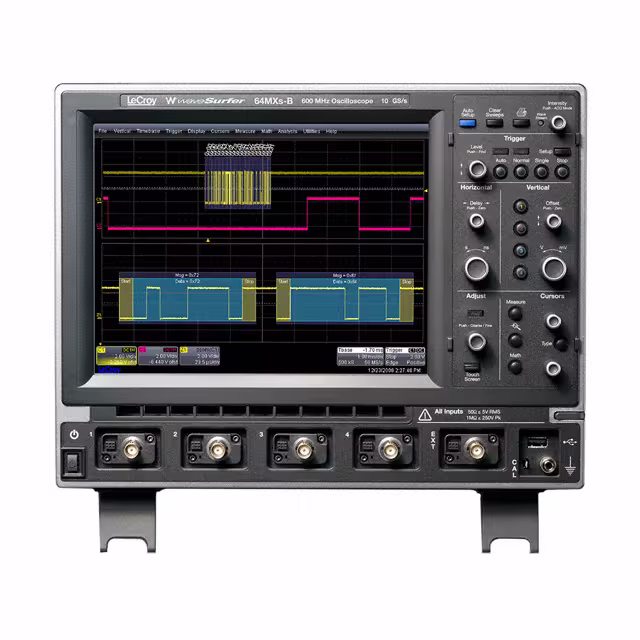

WAVESURFER 64MXS-BDGTL O-SCOPE 600MHZ 5GS/S 4CH |
0 |
|
Datasheet |
WaveSurfer®, Maui | Box | Obsolete | Bench, Digital | 600 MHz | 4 | LCD - Color (Touch) | Ethernet, GPIB, RS232, USB | 64Mpts | Record, Save, Trend | Passive 10:1 (4) | 5G | 1M - 16pF | 525 ps | 400V | 90 ~ 264VAC |
|
|
T3DSO4054L-HD500MHZ 10GS/S ESR 4CH 500MPTS/CH |
0 |
|
Datasheet |
T3DSO4000L-HD | Box | Active | Bench | 500 MHz | 4 Analog | LCD - Color | USB | 500Mpts | Record, Playback, Save, Trend | Passive 1:1, 10:1 | 10G | 1M - 20pF | 550 ps | 400V | 100 ~ 240VAC |
|

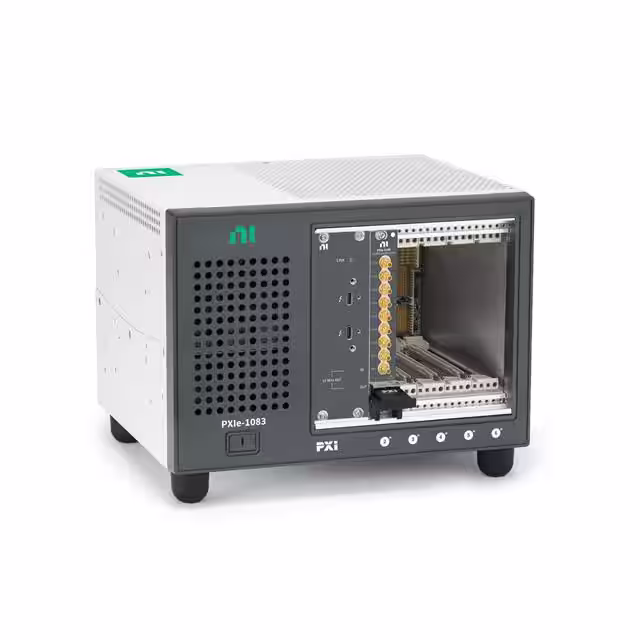

867010-01PXIE-5105 OSCOPE BUNDLE, 60 MHZ, |
1 |
|
Datasheet |
NI PXI | Bulk | Active | Bench, Digital | 60 MHz | 8 | - | Thunderbolt™ 3 | - | Automation, Frequency Domain Analysis, Playback, Record, Save, Trend, Triggering | - | 60M | 50, 1M | 5.83 ns | 30V | 100 ~ 240VAC |
|
|
786375-11PXIE-5113 PXI OSCILLOSCOPE WITH |
0 |
|
- |
- | Box | Active | Bench | 500 MHz | 2 Analog | - | - | - | - | - | 3G | - | - | - | - |
|
|
867010-04EXPANDABLE PXI BUNDLE BASED ON P |
0 |
|
- |
- | Bulk | Active | Bench | 60 MHz | 8 | - | - | - | - | - | - | - | - | - | - |
|
|
867010-02EXPANDABLE PXI BUNDLE BASED ON P |
0 |
|
- |
- | Bulk | Active | Bench | 60 MHz | 8 | - | - | - | - | - | - | - | - | - | - |
|
|
867010-03EXPANDABLE PXI BUNDLE BASED ON P |
0 |
|
- |
- | Bulk | Active | Bench | 60 MHz | 8 | - | - | - | - | - | - | - | - | - | - |
|
|
783690-01PXIE-5170 PXI OSCILLOSCOPE, 100 |
0 |
|
- |
- | Box | Active | Bench | 100 MHz | - | - | - | - | - | - | - | - | - | - | - |
|

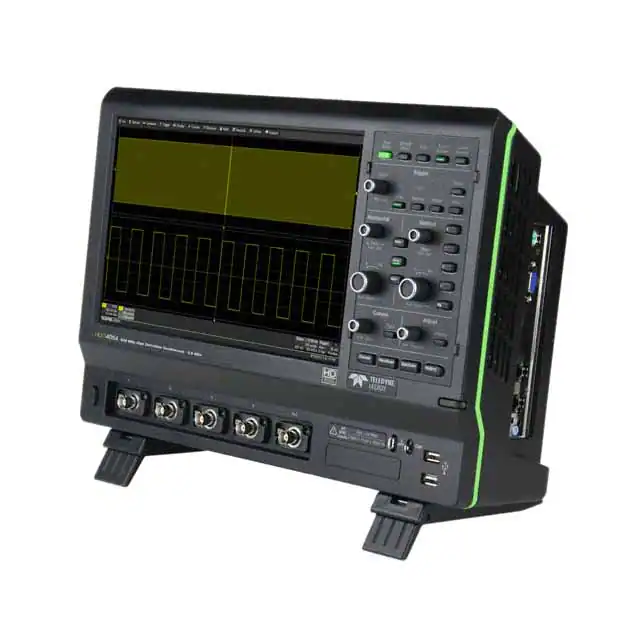

HDO4054-MSHD O-SCOPE 500MHZ 4CH 2.5GS/S |
0 |
|
Datasheet |
HDO4000 | Box | Obsolete | Bench, Digital | 500 MHz | 4 Analog, 16 Digital | LCD - Color (Touch) | Ethernet, USB | 25Mpts | Record, Save, Trend | Passive 10:1 (4) | 2.5G | 1M - 15pF | 700 ps | 400V | 100 ~ 240VAC |
|
|
785037-04NI VIRTUALBENCH (VB-8054) WITH E |
0 |
|
- |
- | Box | Obsolete | Bench | 500 MHz | 4 | - | - | - | - | - | - | - | - | - | - |
|
|
785037-01NI VIRTUALBENCH (VB-8054) WITH U |
0 |
|
- |
- | Box | Obsolete | Bench | 500 MHz | 4 | - | - | - | - | - | - | - | - | - | - |
|
WAVESURFER 104MXS-BDGTL O-SCOPE 1GHZ 5GS/S 4CH |
0 |
|
Datasheet |
WaveSurfer®, Maui | Box | Obsolete | Bench, Digital | 1 GHz | 4 | LCD - Color (Touch) | Ethernet, GPIB, RS232, USB | 64Mpts | Record, Save, Trend | Passive 10:1 (4) | 5G | 1M - 16pF | 350 ps | 250V | 90 ~ 264VAC |
