Oscilloscopes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Bandwidth | Channels | Display Type | Interface | Memory Size | Function | Probe Type | Sampling Rate (Per Second) | Input Impedance | Rise Time (Typ) | Voltage - Input (Max) | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS2302A300 MHz, 2 Channel Oscilloscope |
25 |
|
Datasheet |
MSO/DS2000A | Tape & Box (TB) | Active | Bench | 300 MHz | 2 | LCD - Color | Ethernet, RS232, USB | - | Record | - | 1G | 1M - 15pF | 1.2 ns | CAT II 300V | 100 ~ 240VAC |
|
|
SDS824X HDOSCILLOSCOPE 12Bit 4 CH 200 MHZ |
18 |
|
Datasheet |
SDS800XHD | Box | Active | Bench | 200 MHz | 4 | TFT - Color (Touch) | LAN, USB | 100Mpts | Record, Playback, Save | Passive 10:1 (5) | 2G | 1M - 17pF | 1.8 ns | 400V | 100 ~ 240VAC |
|
|
DHO1074High Resolution 4 Channel, 70 MH |
25 |
|
Datasheet |
DHO1000 | Box | Active | Bench | 70 MHz | 4 Analog | LCD - Color | RS232, USB | 100Mpts | Record, Playback | Passive (2) | 2G | 1M - 19pF | 5 ns | CAT I 300V | 100 ~ 240VAC |
|
|
DHO1102High Resolution 2 Channel, 100 M |
23 |
|
Datasheet |
DHO1000 | Box | Active | Bench | 100 MHz | 2 Analog | LCD - Color | RS232, USB | 100Mpts | Record, Playback | Passive (2) | 2G | 1M - 19pF | 3.5 ns | CAT I 300V | 100 ~ 240VAC |
|
|
MSO507270 MHz Digital Oscilloscope with |
10 |
|
Datasheet |
MSO5000 | Box | Active | Bench | 70 MHz | 2 Analog | LCD - Color | RS232, USB | 200Mpts | Record, Playback | Passive (2) | 8G | 1M - 17pF | 15 ns | CAT I 300V | 100 ~ 240VAC |
|
|
MSO2302A300 MHz, 2 Channel Mixed Signal |
4 |
|
Datasheet |
MSO/DS2000A | Tape & Box (TB) | Active | Bench | 300 MHz | 2 | LCD - Color | Ethernet, RS232, USB | - | Record | - | 1G | 1M - 15pF | 1.2 ns | CAT II 300V | 100 ~ 240VAC |
|
|
MSO2104-SMIXED SIGNAL DGTL OSCILLOSCOPE |
11 |
|
Datasheet |
MSO/UPO2000 | Retail Package | Active | Bench | 100 MHz | 4 | - | - | - | - | - | - | 1M - 16pF | 3.5 ns | 400V | 100 ~ 240VAC |
|
|
SDS1104X HDOSCILLOSCOPE 12Bit 4 CH 100 MHZ |
25 |
|
Datasheet |
SDS1000XHD | Box | Active | Bench | 100 MHz | 4 | TFT - Color (Touch) | LAN, USB | 100Mpts | Record, Playback, Save | Passive 10:1 (5) | 2G | 1M - 17pF | 3.5 ns | 400V | 100 ~ 240VAC |
|
SDS2104X-PLUSOSCILLOSCOPE 100 MHZ, 4 CH |
9 |
|
Datasheet |
SDS2000X Plus | Box | Active | Bench, Digital | 100 MHz | 4 | LCD - Color | USB | 200Mpts | Record, Trend | Passive (4) | 2G | 1M - 17pF | 3.5 ns | 400V | 100 ~ 240VAC |
|
2540C-MSO70 MHZ, 1 GSA/S 2 CHANNEL MIXED |
2 |
|
Datasheet |
2540C | Box | Obsolete | Bench, Digital | - | 2 | LCD - Color | USB | 14Mpts | Record, Playback, Save, Trend | - | 1G | 1M - 22pF | - | 400V | 100 ~ 240VAC |
|
|
MSO2302A-S300 MHz, 2 Channel Mixed Signal |
10 |
|
Datasheet |
MSO/DS2000A | Tape & Box (TB) | Active | Bench | 300 MHz | 2 | LCD - Color | Ethernet, RS232, USB | - | Record | - | 1G | 1M - 15pF | 1.2 ns | CAT II 300V | 100 ~ 240VAC |
|
|
SDS1204X HDOSCILLOSCOPE 12BIT 2 CH 200 MHZ |
22 |
|
Datasheet |
SDS1000XHD | Box | Active | Bench | 200 MHz | 4 | TFT - Color (Touch) | LAN, USB | 100Mpts | Record, Playback, Save | Passive 10:1 (5) | 2G | 1M - 17pF | 1.8 ns | 400V | 100 ~ 240VAC |
|
|

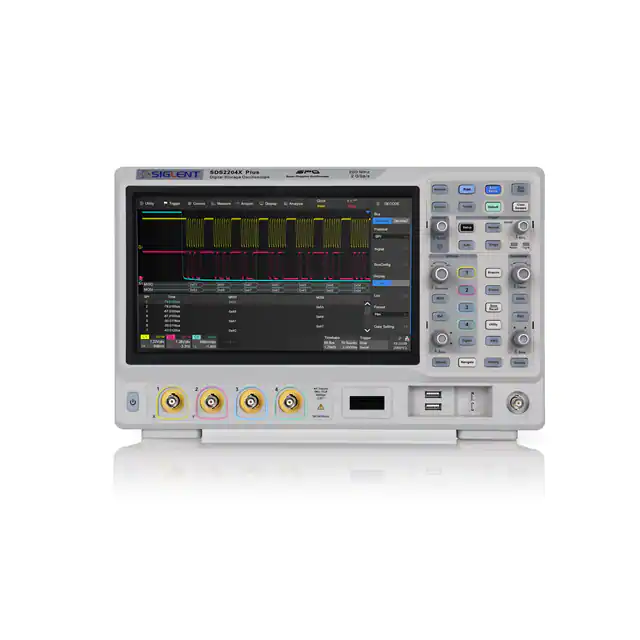

SDS2204X-PLUSOSCILLOSCOPE 200 MHZ, 4 CH |
14 |
|
Datasheet |
SDS2000X Plus | Box | Active | Bench, Digital | 200 MHz | 4 | LCD - Color | USB | 200Mpts | Record, Trend | Passive (4) | 2G | 1M - 17pF | 1.7 ns | 400V | 100 ~ 240VAC |
|
|
MSO3354EMIXED SIGNAL DGTL OSCILLOSCOPE |
6 |
|
Datasheet |
MSO/UPO3000E | Retail Package | Active | Bench | 350 MHz | 4 | - | - | - | - | - | - | 1M - 18pF | 1 ns | - | 100 ~ 240VAC |
|

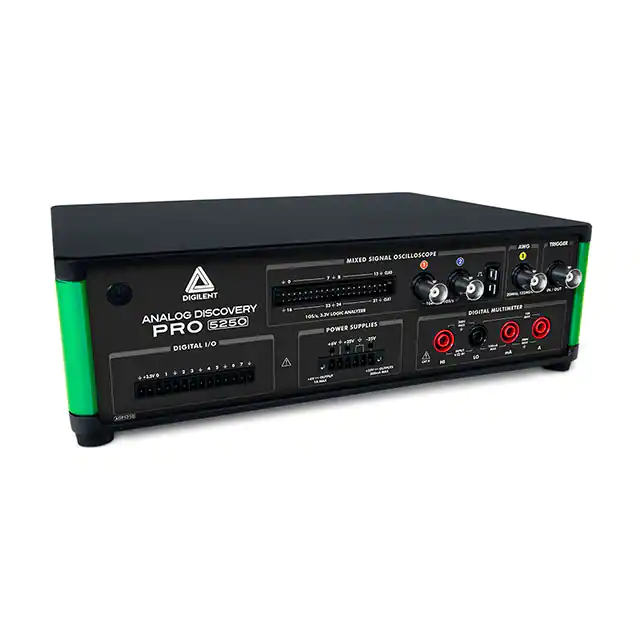

471-058ANALOG DISCOVERY PRO ADP5250 BNC |
18 |
|
Datasheet |
Discovery Pro | Box | Obsolete | Bench | 100 MHz | 2 Analog, 34 Digital | - | USB | - | Record, DMM | Passive 10:1 (5) | 1G | - | - | 40V | - |
|
|
DHO4204High Resolution 4 Channel, 200 M |
2 |
|
Datasheet |
DHO4000 | Box | Active | Bench | 200 MHz | 4 Analog | LCD - Color | RS232, USB | 250Mpts | Record, Playback | Passive (2) | 4G | 1M - 19pF | 1.75 ns | CAT I 300V | 100 ~ 240VAC |
|
|
SDS2354X-PLUSOSCILLOSCOPE 350 MHZ, 4 CH |
3 |
|
Datasheet |
SDS2000X Plus | Box | Active | Bench, Digital | 350 MHz | 4 | LCD - Color | USB | 200Mpts | Record, Trend | Passive (4) | 2G | 1M - 17pF | 3.5 ns | 400V | 100 ~ 240VAC |
|
SDS5034XOSCILLOSCOPE 4 CH 350 MHZ 10"TFT |
6 |
|
Datasheet |
SDS5000X | Box | Active | Bench, Digital | 350 MHz | 4 | LCD - Color | Ethernet, USB | 250Mpts | - | Passive (2) | 5G | - | - | - | - |
|
|
DHO4404High Resolution 4 Channel, 400 M |
9 |
|
Datasheet |
DHO4000 | Box | Active | Bench | 400 MHz | 4 Analog | LCD - Color | RS232, USB | 250Mpts | Record, Playback | Passive (2) | 4G | 1M - 19pF | 875 ps | CAT I 300V | 100 ~ 240VAC |
|
|
DHO4804High Resolution 4 Channel, 800 M |
14 |
|
Datasheet |
DHO4000 | Box | Active | Bench | 800 MHz | 4 Analog | LCD - Color | RS232, USB | 250Mpts | Record, Playback | Passive (2) | 4G | 1M - 19pF | 500 ps | CAT I 300V | 100 ~ 240VAC |
