Thermostats - Mechanical
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Circuit | Switching Temperature | Reset Temperature | Current Rating - AC | Current Rating - DC | Tolerance | Switching Cycles | Termination Style | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T22A10505DFFBG0ETHERMOSTAT 105DEG C SPST-NC WIRE |
264 |
|
Datasheet |
T22 | Shrink Cap, Potted - Wire Leads | Bag | Active | SPST-NC | 221°F (105°C) | 167°F (75°C) | 20A (250V) | - | ±9°F (±5°C) | 10K | Wire Leads - 4" (101.6mm) | Through Hole |
|
|
T22A16005DFFBG0ETHERMOSTAT 160DEG C SPST-NC WIRE |
106 |
|
Datasheet |
T22 | Shrink Cap, Potted - Wire Leads | Bag | Active | SPST-NC | 320°F (160°C) | 266°F (130°C) | 20A (250V) | - | ±9°F (±5°C) | 10K | Wire Leads - 4" (101.6mm) | Through Hole |
|
|
T22A12005DFFBG0ETHERMOSTAT 120DEG C SPST-NC WIRE |
105 |
|
Datasheet |
T22 | Shrink Cap, Potted - Wire Leads | Bag | Active | SPST-NC | 248°F (120°C) | 194°F (90°C) | 20A (250V) | - | ±9°F (±5°C) | 10K | Wire Leads - 4" (101.6mm) | Through Hole |
|
66F060THERMOSTAT 60DEG C SPST-NO 8DIP |
1,010 |
|
Datasheet |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Active | SPST-NO | 140°F (60°C) | 104°F (40°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66F050THERMOSTAT 50DEG C SPST-NO 8DIP |
347 |
|
Datasheet |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Active | SPST-NO | 122°F (50°C) | 86°F (30°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66F070THERMOSTAT 70DEG C SPST-NO 8DIP |
125 |
|
Datasheet |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Active | SPST-NO | 158°F (70°C) | 122°F (50°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|

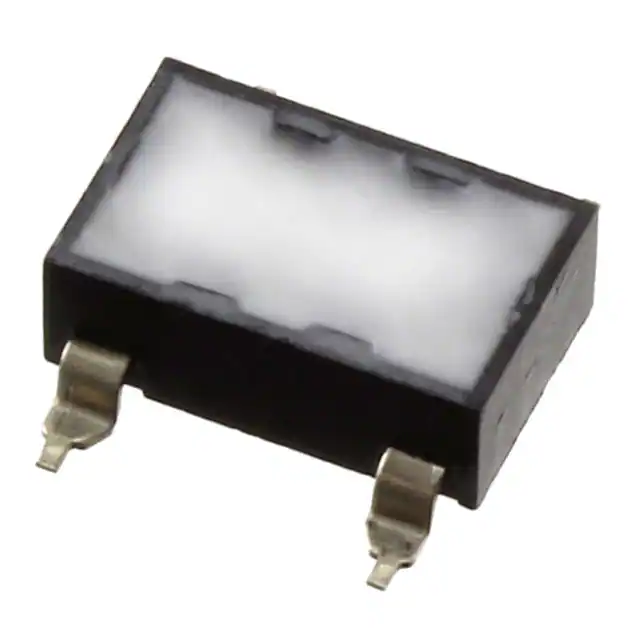

66F100-0437THERMOSTAT 100DEG C SPST-NO 4SMD |
1,590 |
|
Datasheet |
6600 | 4-SMD, Gull Wing | Tube | Active | SPST-NO | 212°F (100°C) | 158°F (70°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Surface Mount |
|
|
66L080THERMOSTAT 80DEG C SPST-NC 8DIP |
2,104 |
|
Datasheet |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Active | SPST-NC | 176°F (80°C) | 131°F (55°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66L085THERMOSTAT 85DEG C SPST-NC 8DIP |
324 |
|
Datasheet |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Active | SPST-NC | 185°F (85°C) | 131°F (55°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
OHD1-90BTHERMOSTAT 90DEG C SPST-NC AXIAL |
1,062 |
|
Datasheet |
OHD™ Thermal Guard | Axial | Tray | Active | SPST-NC | 194°F (90°C) | - | 0.3A (110V) | 0.3A (110V) | ±9°F (±5°C) | 100K | PC Pins | Through Hole |
|
|
OHD1-70BTHERMOSTAT 70DEG C SPST-NC AXIAL |
300 |
|
Datasheet |
OHD™ Thermal Guard | Axial | Tray | Active | SPST-NC | 158°F (70°C) | - | 0.3A (110V) | 0.3A (110V) | ±9°F (±5°C) | 100K | PC Pins | Through Hole |
|
|
OHD1-85BTHERMOSTAT 85DEG C SPST-NC AXIAL |
292 |
|
Datasheet |
OHD™ Thermal Guard | Axial | Tray | Active | SPST-NC | 185°F (85°C) | - | 0.3A (110V) | 0.3A (110V) | ±9°F (±5°C) | 100K | PC Pins | Through Hole |
|
|
OHD1-95BTHERMOSTAT 95DEG C SPST-NC AXIAL |
282 |
|
Datasheet |
OHD™ Thermal Guard | Axial | Tray | Active | SPST-NC | 203°F (95°C) | - | 0.3A (110V) | 0.3A (110V) | ±9°F (±5°C) | 100K | PC Pins | Through Hole |
|
|
OHD1-75BTHERMOSTAT 75DEG C SPST-NC AXIAL |
237 |
|
Datasheet |
OHD™ Thermal Guard | Axial | Tray | Active | SPST-NC | 167°F (75°C) | - | 0.3A (110V) | 0.3A (110V) | ±9°F (±5°C) | 100K | PC Pins | Through Hole |
|
|
OHD1-65BTHERMOSTAT 65DEG C SPST-NC AXIAL |
176 |
|
Datasheet |
OHD™ Thermal Guard | Axial | Tray | Active | SPST-NC | 149°F (65°C) | - | 0.3A (110V) | 0.3A (110V) | ±9°F (±5°C) | 100K | PC Pins | Through Hole |
|
|
OHD1-115BTHERMOSTAT 115DEG C SPST-NC AXL |
175 |
|
Datasheet |
OHD™ Thermal Guard | Axial | Tray | Active | SPST-NC | 239°F (115°C) | - | 0.3A (110V) | 0.3A (110V) | ±9°F (±5°C) | 100K | PC Pins | Through Hole |
|
|
OHD1-120BTHERMOSTAT 120DEG C SPST-NC AXL |
122 |
|
Datasheet |
OHD™ Thermal Guard | Axial | Tray | Active | SPST-NC | 248°F (120°C) | - | 0.3A (110V) | 0.3A (110V) | ±9°F (±5°C) | 100K | PC Pins | Through Hole |
|
|
OHD1-105BTHERMOSTAT 105DEG C SPST-NC AXL |
120 |
|
Datasheet |
OHD™ Thermal Guard | Axial | Tray | Active | SPST-NC | 221°F (105°C) | - | 0.3A (110V) | 0.3A (110V) | ±9°F (±5°C) | 100K | PC Pins | Through Hole |
|
|
OHD1-55BTHERMOSTAT 55DEG C SPST-NC AXIAL |
118 |
|
Datasheet |
OHD™ Thermal Guard | Axial | Tray | Active | SPST-NC | 131°F (55°C) | - | 0.3A (110V) | 0.3A (110V) | ±9°F (±5°C) | 100K | PC Pins | Through Hole |
|
|
OHD1-60BTHERMOSTAT 60DEG C SPST-NC AXIAL |
118 |
|
Datasheet |
OHD™ Thermal Guard | Axial | Tray | Active | SPST-NC | 140°F (60°C) | - | 0.3A (110V) | 0.3A (110V) | ±9°F (±5°C) | 100K | PC Pins | Through Hole |
