Specialized Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Applications | Composition | Resistance | Tolerance | Power (Watts) | Temperature Coefficient | Operating Temperature | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ARCS6918DL050A9RES SHUNT 50 UOHM 0.5% 25W |
111 |
|
Datasheet |
ARCS6918-L050 | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 50 µOhms | - | ±0.5% | 25W | 150ppm/°C | -50°C ~ 175°C | Shunt Fixture, 52mm Pitch |
|
|
ARCS8518DL050A9RES SHUNT 50 UOHM 0.5% 36W |
112 |
|
Datasheet |
ARCS8518-L050 | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 50 µOhms | - | ±0.5% | 36W | 150ppm/°C | -50°C ~ 175°C | Shunt Fixture, 60mm Pitch |
|
ARCS8518FL100S4RES SHUNT 100 UOHM 1% 36W |
103 |
|
Datasheet |
ARCS | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±1% | 36W | ±100ppm/°C | -50°C ~ 175°C | Shunt Fixture, 60mm Pitch |
|
|
PCBS8518A050P1SC00PCB+SHUNT 50 UOHM 350A |
146 |
|
Datasheet |
- | Tray | Active | Current Sensor | Automotive AEC-Q200 | - | 50 µOhms | - | ±5% | 6W | 100ppm/°C | -40°C ~ 125°C | Chassis Mount |
|
|
PCBS8536P050S1SC00PCB+SHUNT 50 UOHM 600A |
127 |
|
Datasheet |
- | Tray | Active | Current Sensor | Automotive AEC-Q200 | - | 50 µOhms | - | ±5% | 18W | 100ppm/°C | -40°C ~ 125°C | Chassis Mount |
|
|
PCBS8436P025T2AC00PCB+SHUNT 25 UOHM 800A |
146 |
|
Datasheet |
- | Tray | Active | Current Sensor | Automotive AEC-Q200 | - | 25 µOhms | - | ±5% | 16W | 100ppm/°C | -40°C ~ 125°C | Chassis Mount |
|
|
CSM2F-8518-L050J20RES SHUNT 8518 50 UOHM 50W 2P |
142 |
|
Datasheet |
CSM2F-8518 | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | - | 50 µOhms | - | ±5% | 36W | ±100ppm/°C | -40°C ~ 170°C | Through Hole |
|
|
CSM2F-8518-L100J21RES SHUNT 8518 100 UOHM 50W 2P |
104 |
|
Datasheet |
CSM2F-8518 | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | - | 100 µOhms | - | ±5% | 36W | ±150ppm/°C | -40°C ~ 170°C | Through Hole |
|
|
CSM2F-8518-L050J31RES SHUNT 8518 50 UOHM 50W 3P |
104 |
|
Datasheet |
CSM2F-8518 | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | - | 50 µOhms | - | ±5% | 36W | ±150ppm/°C | -40°C ~ 170°C | Through Hole |
|

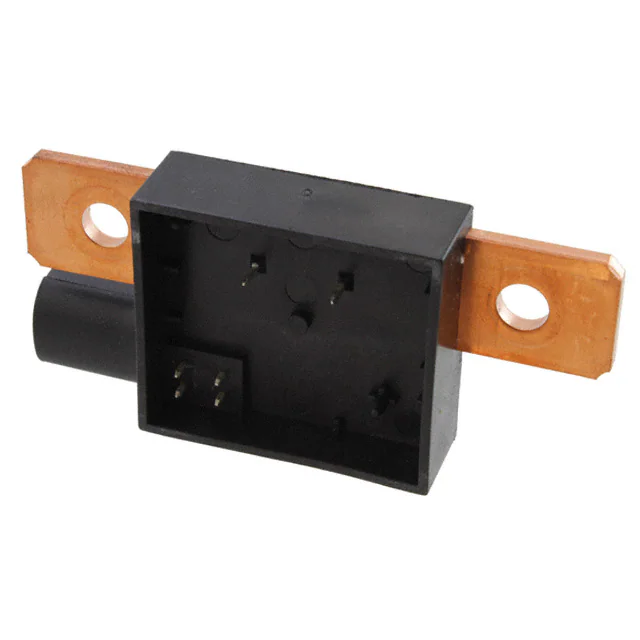

WSBM8518L1000JKRESISTOR SHUNT 100 UOHM 5% 36W |
263 |
|
Datasheet |
Power Metal Strip® | Bulk | Obsolete | Shunt, Battery | - | Metal Element | 100 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBM8518L1250JTRESISTOR SHUNT 125 UOHM 5% 36W |
106 |
|
Datasheet |
Power Metal Strip® | Tray | Obsolete | Shunt, Battery | - | Metal Element | 125 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBM8518L1000JTRESISTOR SHUNT 100 UOHM 5% 36W |
165 |
|
Datasheet |
Power Metal Strip® | Tray | Obsolete | Shunt, Battery | - | Metal Element | 100 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
CSM2F-8536-L050J21RES SHUNT 8536 50 UOHM 36W 2P |
112 |
|
Datasheet |
CSM2F-8536 | Tray | Active | - | Automotive AEC-Q200 | - | 50 µOhms | - | ±5% | 50W | ±150ppm/°C | -40°C ~ 170°C | Through Hole |
|
|
CSM2F-8536-L050J20RES SHUNT 8536 50 UOHM 36W 2P |
1,005 |
|
Datasheet |
CSM2F-8536 | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | - | 50 µOhms | - | ±5% | 50W | ±100ppm/°C | -40°C ~ 170°C | Through Hole |
|
|
HoFLQ60-65A-50mV-1% paintedRESISTOR SHUNT 0.769 mOHM 1% 65A |
5,532 |
|
Datasheet |
FLQ60 | Bulk | Active | Shunt, Battery | - | Metal Element | 769 µOhms | - | ±1% | 3.25W | ±50ppm/°C | -55°C ~ 170°C | Through Hole |
|
WSBS8518L1000JK14RESISTOR SHUNT 100 UOHM 5% 36W |
100 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8518L5000JT35RESISTOR SHUNT 500 UOHM 5% 25W |
100 |
|
Datasheet |
Power Metal Strip® | Tray | Active | Shunt, Battery | - | Metal Element | 500 µOhms | - | ±5% | 25W | ±10ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
SH8536F1K0APEP8536 SHUNT 1000A PIN |
99 |
|
Datasheet |
SHA | Box | Active | Shunt, Battery | - | - | 50 µOhms | - | ±1% | 50W | - | - | Through Hole |
|
|
WSBS85181L000JK35RESISTOR SHUNT 0.001 OHM 5% 20W |
53 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 1 mOhms | - | ±5% | 20W | ±25ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS85181L000JT35RESISTOR SHUNT 0.001 OHM 5% 20W |
53 |
|
Datasheet |
Power Metal Strip® | Tray | Active | Shunt, Battery | - | Metal Element | 1 mOhms | - | ±5% | 20W | ±25ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
