Specialized Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Applications | Composition | Resistance | Tolerance | Power (Watts) | Temperature Coefficient | Operating Temperature | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FNPZR0020ARES SHUNT 0.002 OHM 0.05% 500W |
0 |
|
Datasheet |
FNP | Bulk | Active | Shunt, Battery | - | Metal Foil | 2 mOhms | - | ±0.05% | 500W | ±1ppm/°C | -55°C ~ 125°C | Chassis Mount |
|
|
FNPZR0100ARES SHUNT 0.01 OHM 0.05% 500W |
0 |
|
Datasheet |
FNP | Bulk | Active | Shunt, Battery | - | Metal Foil | 10 mOhms | - | ±0.05% | 500W | ±1ppm/°C | -55°C ~ 125°C | Chassis Mount |
|

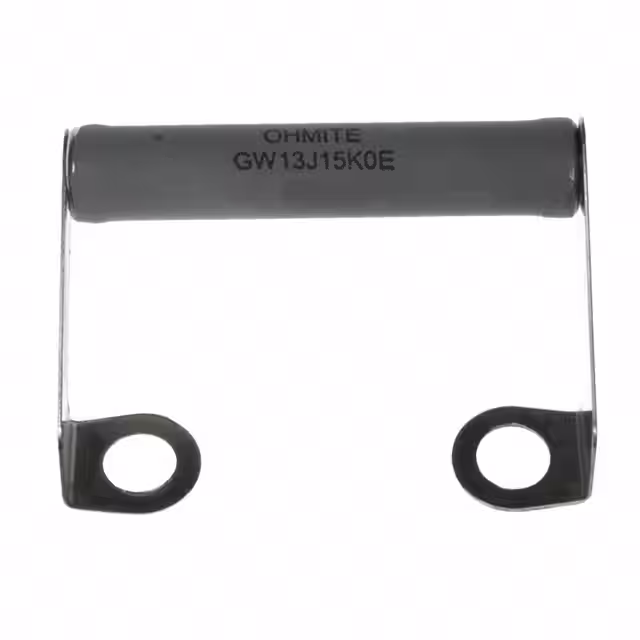

GW13J15K0ERES CAP BLEEDER 15K OHM 5% 13W |
800 |
|
Datasheet |
G | Bulk | Active | Bleeder, Capacitor | Capacitor Discharge | Wirewound | 15 kOhms | - | ±5% | 13W | ±100ppm/°C | -55°C ~ 200°C | Capacitor, 31.8mm Pitch |
|

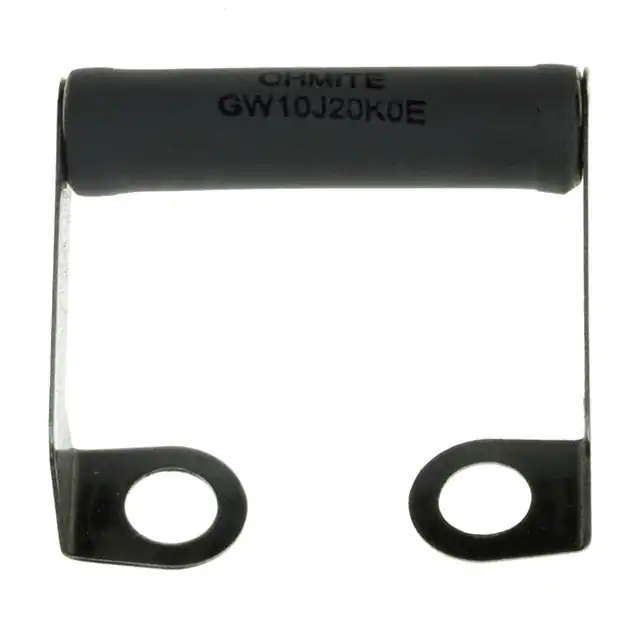

GW10J20K0ERES CAP BLEEDER 20K OHM 5% 10W |
415 |
|
Datasheet |
G | Bulk | Active | Bleeder, Capacitor | Capacitor Discharge | Wirewound | 20 kOhms | - | ±5% | 10W | ±100ppm/°C | -55°C ~ 200°C | Capacitor, 22mm Pitch |
|
ERA-S15J100VRES TEMP SENS 10 OHM 5% 1/10W |
0 |
|
Datasheet |
ERAS | Tape & Reel (TR) | Obsolete | Temperature Sensitive | Temperature Correction Circuits | Metal Film | 10 Ohms | - | ±5% | 0.1W, 1/10W | 1500ppm/°C | -40°C ~ 125°C | Surface Mount |
|
|
ERA-S15J120VRES TEMP SENS 12 OHM 5% 1/10W |
0 |
|
Datasheet |
ERAS | Tape & Reel (TR) | Obsolete | Temperature Sensitive | Temperature Correction Circuits | Metal Film | 12 Ohms | - | ±5% | 0.1W, 1/10W | 1500ppm/°C | -40°C ~ 125°C | Surface Mount |
|
|
ERA-S15J180VRES TEMP SENS 18 OHM 5% 1/10W |
0 |
|
Datasheet |
ERAS | Tape & Reel (TR) | Obsolete | Temperature Sensitive | Temperature Correction Circuits | Metal Film | 18 Ohms | - | ±5% | 0.1W, 1/10W | 1500ppm/°C | -40°C ~ 125°C | Surface Mount |
|
|
ERA-S15J220VRES TEMP SENS 22 OHM 5% 1/10W |
0 |
|
Datasheet |
ERAS | Tape & Reel (TR) | Obsolete | Temperature Sensitive | Temperature Correction Circuits | Metal Film | 22 Ohms | - | ±5% | 0.1W, 1/10W | 1500ppm/°C | -40°C ~ 125°C | Surface Mount |
|
|
ERA-S15J270VRES TEMP SENS 27 OHM 5% 1/10W |
0 |
|
Datasheet |
ERAS | Tape & Reel (TR) | Obsolete | Temperature Sensitive | Temperature Correction Circuits | Metal Film | 27 Ohms | - | ±5% | 0.1W, 1/10W | 1500ppm/°C | -40°C ~ 125°C | Surface Mount |
|
|
ERA-S15J390VRES TEMP SENS 39 OHM 5% 1/10W |
0 |
|
Datasheet |
ERAS | Tape & Reel (TR) | Obsolete | Temperature Sensitive | Temperature Correction Circuits | Metal Film | 39 Ohms | - | ±5% | 0.1W, 1/10W | 1500ppm/°C | -40°C ~ 125°C | Surface Mount |
|
|
ERA-S15J470VRES TEMP SENS 47 OHM 5% 1/10W |
0 |
|
Datasheet |
ERAS | Tape & Reel (TR) | Obsolete | Temperature Sensitive | Temperature Correction Circuits | Metal Film | 47 Ohms | - | ±5% | 0.1W, 1/10W | 1500ppm/°C | -40°C ~ 125°C | Surface Mount |
|
|
ERA-S15J121VRES TEMP SENS 120 OHM 5% 1/10W |
0 |
|
Datasheet |
ERAS | Tape & Reel (TR) | Obsolete | Temperature Sensitive | Temperature Correction Circuits | Metal Film | 120 Ohms | - | ±5% | 0.1W, 1/10W | 1500ppm/°C | -40°C ~ 125°C | Surface Mount |
|
|
ERA-S15J151VRES TEMP SENS 150 OHM 5% 1/10W |
0 |
|
Datasheet |
ERAS | Tape & Reel (TR) | Obsolete | Temperature Sensitive | Temperature Correction Circuits | Metal Film | 150 Ohms | - | ±5% | 0.1W, 1/10W | 1500ppm/°C | -40°C ~ 125°C | Surface Mount |
|
|
ERA-S15J271VRES TEMP SENS 270 OHM 5% 1/10W |
0 |
|
Datasheet |
ERAS | Tape & Reel (TR) | Obsolete | Temperature Sensitive | Temperature Correction Circuits | Metal Film | 270 Ohms | - | ±5% | 0.1W, 1/10W | 1500ppm/°C | -40°C ~ 125°C | Surface Mount |
|
|
ERA-S15J681VRES TEMP SENS 680 OHM 5% 1/10W |
0 |
|
Datasheet |
ERAS | Tape & Reel (TR) | Obsolete | Temperature Sensitive | Temperature Correction Circuits | Metal Film | 680 Ohms | - | ±5% | 0.1W, 1/10W | 1500ppm/°C | -40°C ~ 125°C | Surface Mount |
|
|
ERA-S15J821VRES TEMP SENS 820 OHM 5% 1/10W |
0 |
|
Datasheet |
ERAS | Tape & Reel (TR) | Obsolete | Temperature Sensitive | Temperature Correction Circuits | Metal Film | 820 Ohms | - | ±5% | 0.1W, 1/10W | 1500ppm/°C | -40°C ~ 125°C | Surface Mount |
|
|
ERA-S15J122VRES TEMP SENS 1.2K OHM 5% 1/10W |
0 |
|
Datasheet |
ERAS | Tape & Reel (TR) | Obsolete | Temperature Sensitive | Temperature Correction Circuits | Metal Film | 1.2 kOhms | - | ±5% | 0.1W, 1/10W | 1500ppm/°C | -40°C ~ 125°C | Surface Mount |
|
|
ERA-S15J152VRES TEMP SENS 1.5K OHM 5% 1/10W |
0 |
|
Datasheet |
ERAS | Tape & Reel (TR) | Obsolete | Temperature Sensitive | Temperature Correction Circuits | Metal Film | 1.5 kOhms | - | ±5% | 0.1W, 1/10W | 1500ppm/°C | -40°C ~ 125°C | Surface Mount |
|
|
ERA-S15J182VRES TEMP SENS 1.8K OHM 5% 1/10W |
0 |
|
Datasheet |
ERAS | Tape & Reel (TR) | Obsolete | Temperature Sensitive | Temperature Correction Circuits | Metal Film | 1.8 kOhms | - | ±5% | 0.1W, 1/10W | 1500ppm/°C | -40°C ~ 125°C | Surface Mount |
|
|
ERA-S15J222VRES TEMP SENS 2.2K OHM 5% 1/10W |
0 |
|
Datasheet |
ERAS | Tape & Reel (TR) | Obsolete | Temperature Sensitive | Temperature Correction Circuits | Metal Film | 2.2 kOhms | - | ±5% | 0.1W, 1/10W | 1500ppm/°C | -40°C ~ 125°C | Surface Mount |
