Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EG2205ASWITCH SLIDE DPDT 300MA 30V |
0 |
|
Datasheet |
EG | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 300mA (DC) | - | 30 V | Standard | 2.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
EG2215ASWITCH SLIDE DPDT 200MA 30V |
0 |
|
Datasheet |
EG | Bulk | Active | DPDT | Not Specified | On-On | 200mA (DC) | - | 30 V | Standard | 6.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|
|
EG2301CSWITCH SLIDE DP3T 200MA 30V |
0 |
|
Datasheet |
EG | Bulk | Obsolete | DP3T | Not Specified | On-On-On | 200mA (DC) | - | 30 V | Standard | 12.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
EG2303SWITCH SLIDE DP3T 200MA 30V |
0 |
|
Datasheet |
EG | Bulk | Active | DP3T | Not Specified | On-On-On | 200mA (DC) | - | 30 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
EG2325SWITCH SLIDE DP3T 100MA 12V |
0 |
|
Datasheet |
EG | Bulk | Obsolete | DP3T | Shorting (MBB) | On-On-On | 100mA (DC) | - | 12 V | Standard | 2.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|
|
EG2325ASWITCH SLIDE DP3T 100MA 12V |
0 |
|
Datasheet |
EG | Bulk | Active | DP3T | Shorting (MBB) | On-On-On | 100mA (DC) | - | 12 V | Standard | 6.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|
|
EG2601CSWITCH SLIDE DP6T 300MA 30V |
0 |
|
Datasheet |
EG | Bulk | Active | DP6T | Not Specified | - | 300mA (DC) | - | 30 V | Standard | 6.50mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
C56313L1XSWITCH SLIDE DP3T 500MA 125V |
0 |
|
Datasheet |
56300 | Bulk | Active | DP3T | Non-Shorting (BBM) | On-On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 4.75mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
C62206LXSWITCH SLIDE DPDT 500MA 125V |
0 |
|
Datasheet |
62200 | Tray | Active | DPDT | Non-Shorting (BBM) | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.16mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|
C46206LFRXSWITCH SLIDE DPDT 3A 125V |
0 |
|
Datasheet |
46200R | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On (Line Voltage Selector) | 3A (AC), 500mA (DC) | 125 V | 125 V | Screwdriver Slot | Flush | Copper Alloy | - | Through Hole | PC Pin | 115V-230V Marking |
|
MSS22SWITCH SLIDE DPDT 300MA 125V |
0 |
|
- |
MSS | Bulk | Obsolete | DPDT | Not Specified | On-On | 300mA (AC/DC) | 125 V | 30 V | Standard | 2.30mm | - | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
MSS22GSWITCH SLIDE DPDT 0.4VA 20V |
0 |
|
- |
MSS | Bulk | Obsolete | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.30mm | - | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
MSS225RGSWITCH SLIDE DPDT 0.4VA 20V |
0 |
|
- |
MSS | Bulk | Obsolete | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 9.50mm | - | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
MHS122SWITCH SLIDE SPDT 300MA 30V |
0 |
|
Datasheet |
MHS | Bulk | Obsolete | SPDT | Not Specified | On-On | 300mA (DC) | - | 30 V | Standard | 4.50mm | Brass | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
MHS123SWITCH SLIDE SPDT 300MA 30V |
0 |
|
Datasheet |
MHS | Bulk | Obsolete | SPDT | Not Specified | On-Off-On | 300mA (DC) | - | 30 V | Standard | 4.50mm | Brass | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
MHS233SWITCH SLIDE DP3T 300MA 30V |
0 |
|
Datasheet |
MHS | Bulk | Obsolete | DP3T | Not Specified | On-On-On | 300mA (DC) | - | 30 V | Standard | 4.50mm | Brass | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

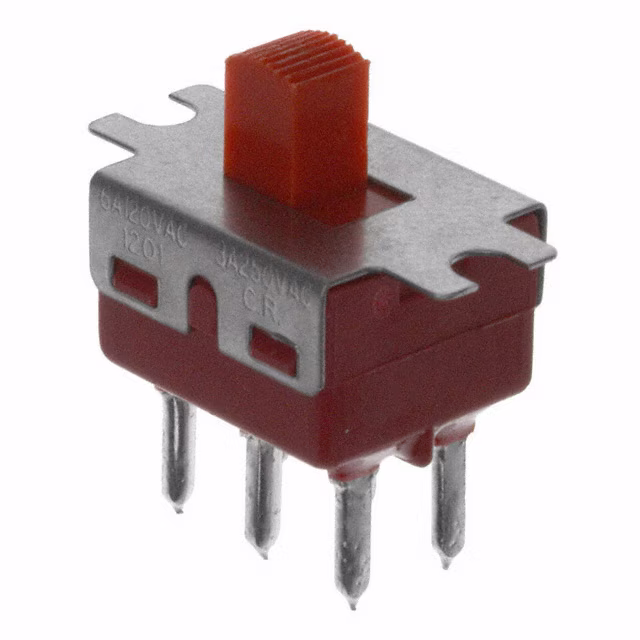

1201M1S3CME3SWITCH SLIDE DPDT 6A 120V |
0 |
|
Datasheet |
1000 | Bulk | Obsolete | DPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 5.08mm | Copper | Silver | Panel Mount | PC Pin | Epoxy Sealed Terminals, Red Actuator |
|
|
MS12ASG30/USWITCH SLIDE SPDT 0.4VA 28V |
0 |
|
Datasheet |
MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

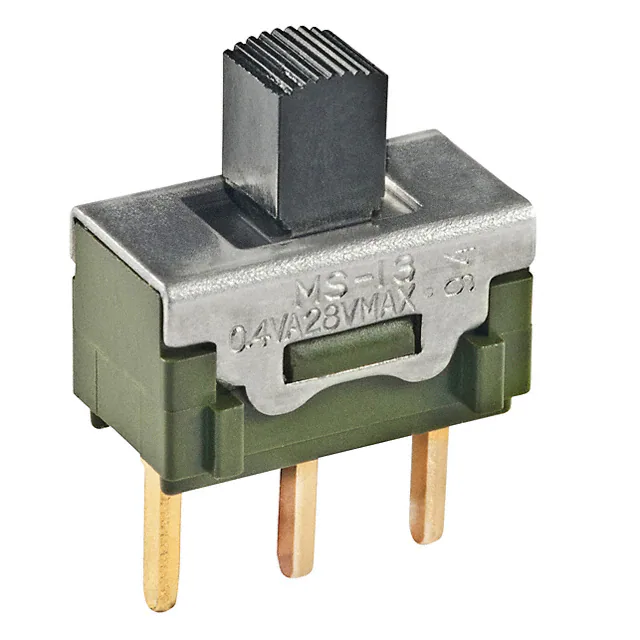

MS13ANG03SWITCH SLIDE SPDT 0.4VA 28V |
0 |
|
Datasheet |
MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

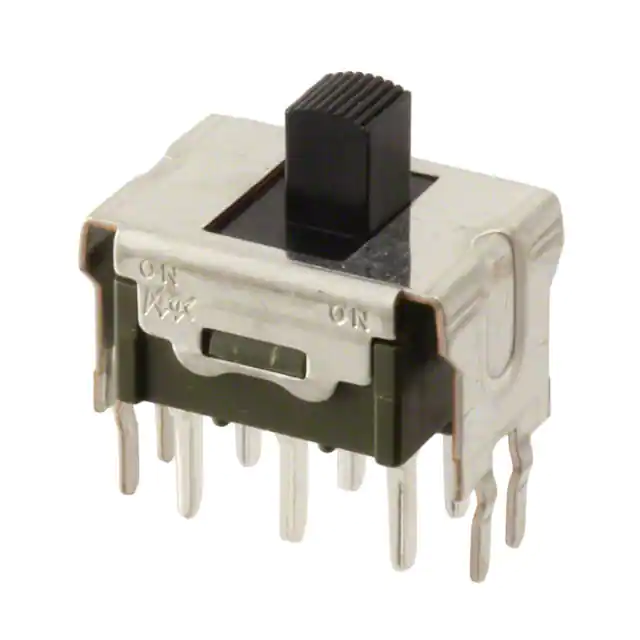

MS22ASW13/CSWITCH SLIDE DPDT 6A 125V |
0 |
|
Datasheet |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
