Selector Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Number of Positions | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Mounting Type | Termination Style | Panel Cutout Dimensions | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9001SK43J1RH2SWITCH SELECTOR 3POS SPDT Schneider Electric |
1 |
|
Datasheet |
Harmony 9001SK | Box | Active | Standard | SPDT | 3 | On-Off-On | - | - | - | Illuminated | Neon, Red | 110 VAC | Panel Mount | Screw Terminal | Circular - 30.00mm Dia | IP66 - Dust Tight, Water Resistant | - | -25°C ~ 70°C |
|
K50E003WPSWITCH SELECTOR 2POS 3PDT Schneider Electric |
1 |
|
Datasheet |
Harmony K | Box | Active | Standard | 3PDT | 2 | On-Off | - | - | - | Non-Illuminated | - | - | Panel Mount | Screw Terminal | - | IP40 | - | -25°C ~ 55°C |
|
XB6ECD222PSWITCH SELECT 2P DPDT 1.5A 120V Schneider Electric |
5 |
|
Datasheet |
Harmony XB6 | Box | Active | Standard | DPDT | 2 | On-On | 1.5A (AC), 1A (DC) | 120 V | 24 V | Non-Illuminated | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65 - Dust Tight, Water Resistant | - | -10°C ~ 55°C |
|
|
9001SK43J35RH2SWITCH SELECTOR 3POS DPDT Schneider Electric |
1 |
|
Datasheet |
Harmony 9001SK | Box | Active | Standard | DPDT | 3 | On-Off-On | - | - | - | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 30.00mm Dia | IP66 - Dust Tight, Water Resistant | - | -25°C ~ 70°C |
|
ZA2BD3SWITCH SELECTOR 3POS Schneider Electric |
5 |
|
Datasheet |
Harmony XAC | Box | Active | Standard | - | 3 | - | - | - | - | Non-Illuminated | - | - | Panel Mount | Screw Terminal | - | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 70°C |
|

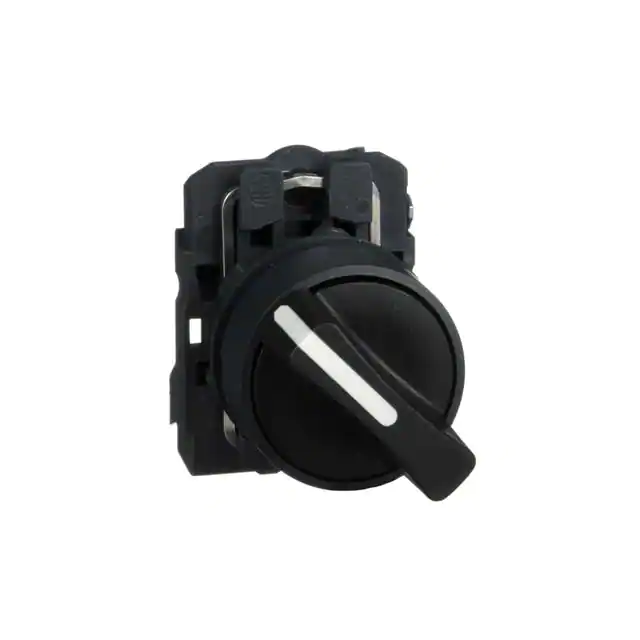

XB5AD21SWITCH SELECT 2POS SPST 6A 120V Schneider Electric |
0 |
|
Datasheet |
Harmony XB5 | Box | Active | Standard | SPST-NO | 2 | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 70°C |
|
XB4BD41SWITCH SELECT 2POS SPST 6A 120V Schneider Electric |
1 |
|
Datasheet |
Harmony XB4 | Box | Active | Standard | SPST-NO | 2 | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 70°C |
|
XB5AD41SWITCH SELECT 2POS SPST 6A 120V Schneider Electric |
1 |
|
Datasheet |
Harmony XB5 | Box | Active | Standard | SPST-NO | 2 | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | IP67 - Dust Tight, Waterproof | - | -40°C ~ 70°C |
|
XB4BJ33SWITCH SELECT 3POS DPST 6A 120V Schneider Electric |
1 |
|
Datasheet |
Harmony XB4 | Box | Active | Standard | DPST-NO | 3 | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 70°C |
|

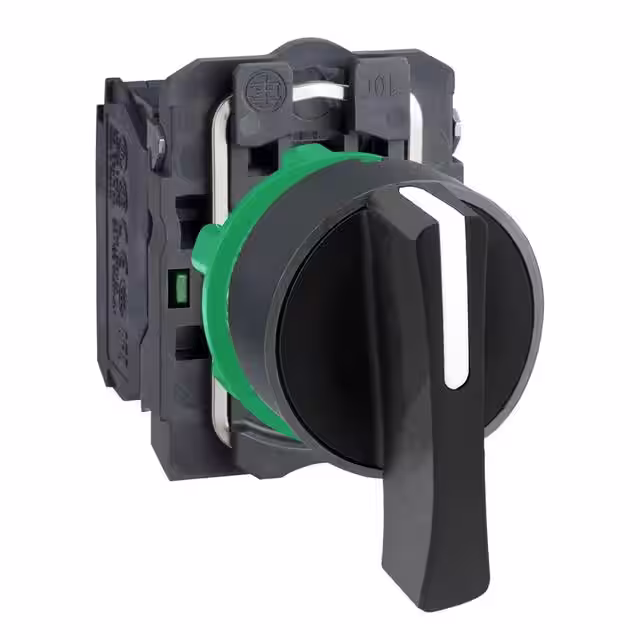

XB5AJ33SWITCH SELECT 3POS DPST 6A 120V Schneider Electric |
1 |
|
Datasheet |
Harmony XB5 | Box | Active | Standard | DPST-NO | 3 | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 70°C |
