Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

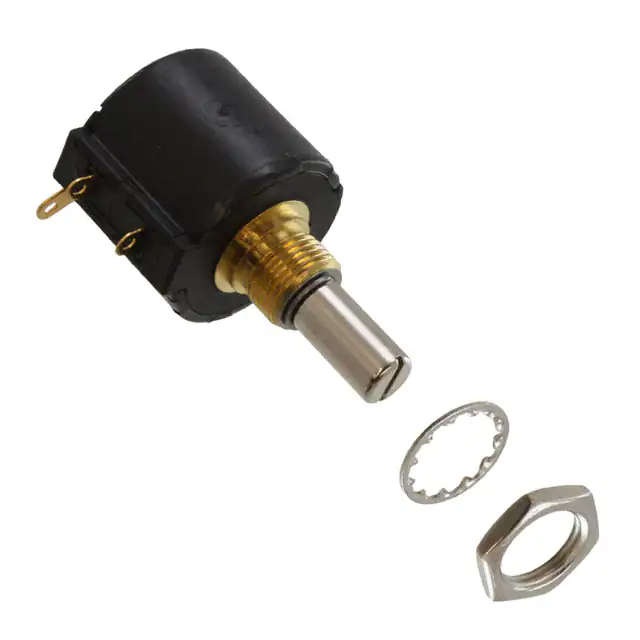

3549S-1AA-202APOT 2K OHM 2W WIREWOUND LINEAR |
110 |
|
Datasheet |
3549 | Tray | Active | 2k | ±3% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

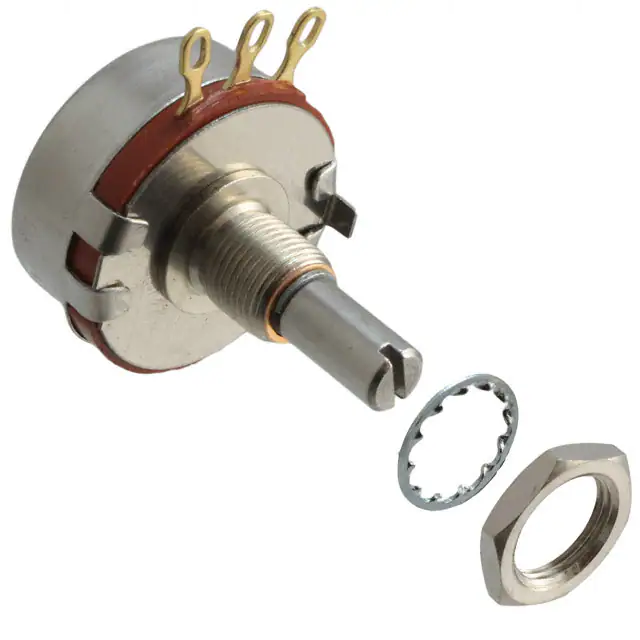

KA5041S28POT 500K OHM 2W CARBON LOG |
166 |
|
Datasheet |
K | Bulk | Active | 500k | ±10% | 2W | None | 1.0 | - | Logarithmic | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|

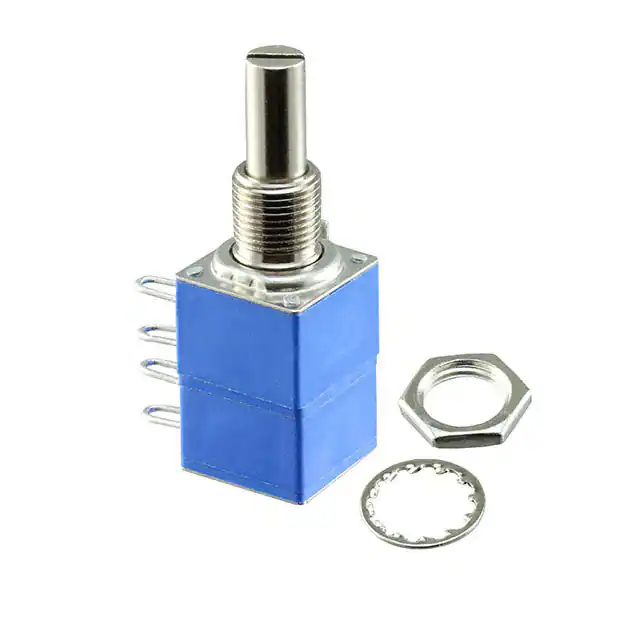

82A2A-B28-A15/A15LPOT 10K OHM 1W CERMET LINEAR |
128 |
|
Datasheet |
82 | Tray | Active | 10k | ±10% | 1W | None | 1.0 | - | Linear | 2 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Hook | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

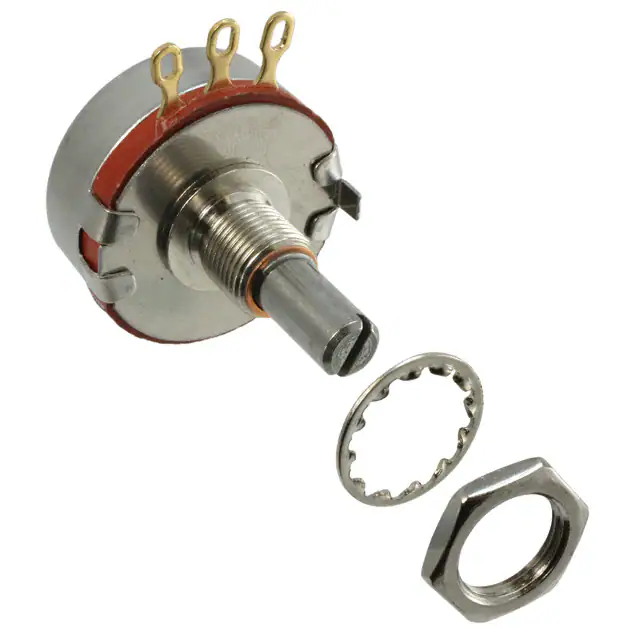

KA1031S28POT 10K OHM 2W CARBON LOG |
439 |
|
Datasheet |
K | Bulk | Active | 10k | ±10% | 2W | None | 1.0 | - | Logarithmic | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
CU1031EPOT 10K OHM 2W CARBON LINEAR |
196 |
|
Datasheet |
CU | Bulk | Active | 10k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 312° | Carbon | Solder Lug | Round | 2.000" (50.80mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
3549S-1AC-103BPOT 10K OHM 2W WIREWOUND LINEAR |
108 |
|
Datasheet |
3549 | Tray | Active | 10k | ±3% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3540S-1-102LPOT 1K OHM 2W WIREWOUND LINEAR |
241 |
|
Datasheet |
3540 | Tray | Active | 1k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
534B1102JLPOT 1K OHM 2W WIREWOUND LINEAR |
102 |
|
Datasheet |
534 | Bulk | Active | 1k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
RV4NAYSD151APOT 150 OHM 2W CARBON LINEAR |
141 |
|
Datasheet |
RV4 | Bulk | Active | 150 | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
534B1104JCPOT 100K OHM 2W WIREWOUND LINEAR |
189 |
|
Datasheet |
534 | Bulk | Active | 100k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
MW22B-10-20KPOT 20K 10-TURN 2W WIRE LINEAR |
125 |
|
Datasheet |
MW22B | Bulk | Active | 20k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.820" (20.83mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
CU5021EPOT 5K OHM 2W CARBON LINEAR |
102 |
|
Datasheet |
CU | Bulk | Active | 5k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 312° | Carbon | Solder Lug | Round | 2.000" (50.80mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

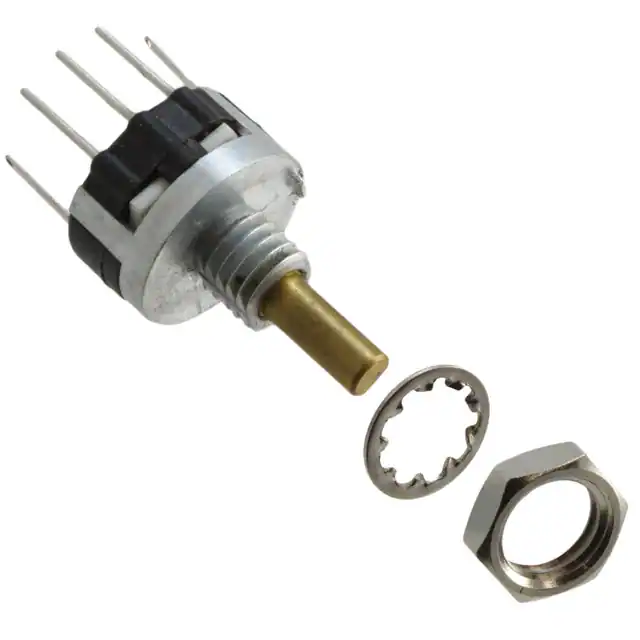

39LB-1PB-103POT 10K OHM 1/4W PLASTIC LINEAR |
193 |
|
Datasheet |
39 | Tray | Active | 10k | ±20% | 0.25W, 1/4W | Momentary Push, SPST | 1.0 | - | Linear | 1 | Top Adjustment | - | 230° | Conductive Plastic | PC Pins | Flatted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-28 | Panel Mount |
|
3543S-1-202LPOT 2K OHM 1W WIREWOUND LINEAR |
541 |
|
Datasheet |
3543 | Bulk | Active | 2k | ±5% | 1W | None | 3.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 1080° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
83A1D-B24-J15LPOT 10K OHM 1W WIREWOUND LINEAR |
163 |
|
Datasheet |
83 | Tray | Active | 10k | ±5% | 1W | None | 10.0 | - | Linear | 1 | Side Adjustment | ±50ppm/°C | 3600° | Wirewound | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
RV6LAYSA503APOT 50K OHM 1/2W CARBON LINEAR |
340 |
|
Datasheet |
RV6 | Bulk | Active | 50k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | User Defined | - | 295° | Carbon | Solder Lug | Slotted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|

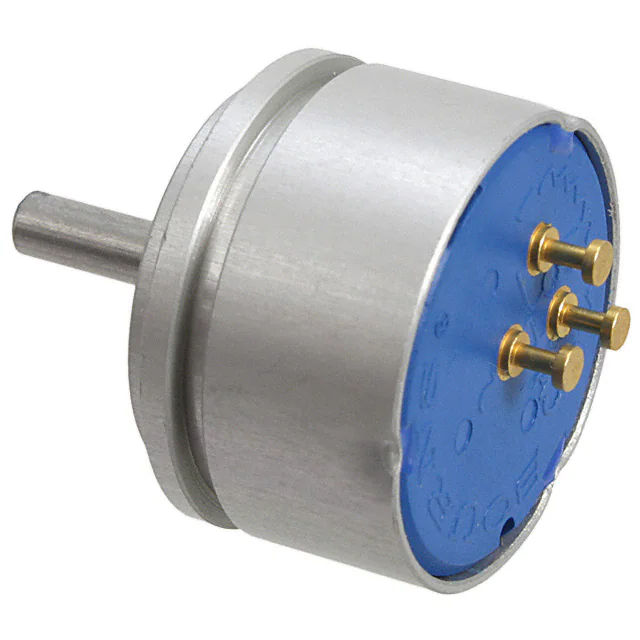

6539S-1-202POT 2K OHM 1W PLASTIC LINEAR |
48 |
|
Datasheet |
6539 | Bulk | Active | 2k | ±15% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.500" (12.70mm) | 0.1248" (3.17mm) | - | Servo Mount |
|

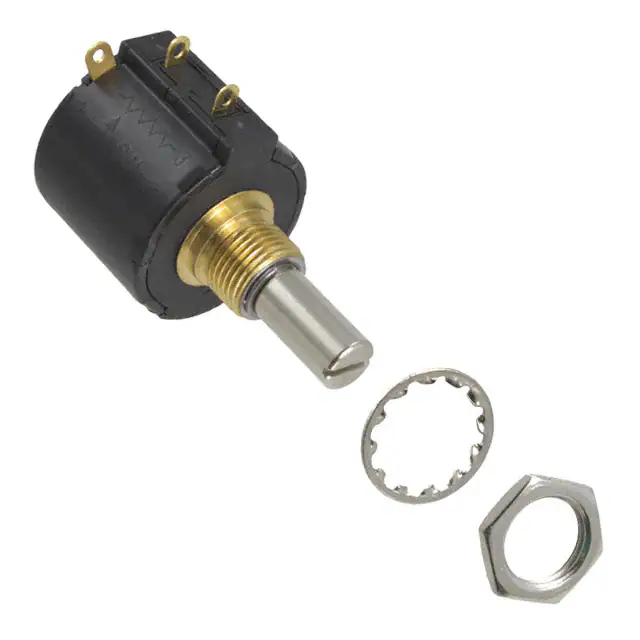

3549H-1BA-502BPOT 5K OHM 2W HYBRITRON LINEAR |
50 |
|
Datasheet |
Hybritron® 3549 | Tray | Active | 5k | ±10% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 3600° | Hybritron® | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

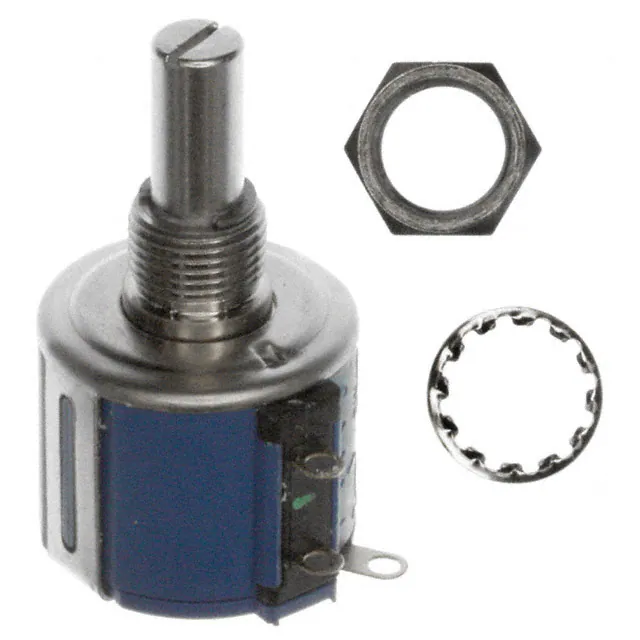

3541H-1-203LPOT 20K OHM 2W HYBRITRON LINEAR |
43 |
|
Datasheet |
Hybritron® 3541 | Tray | Active | 20k | ±10% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 3600° | Hybritron® | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

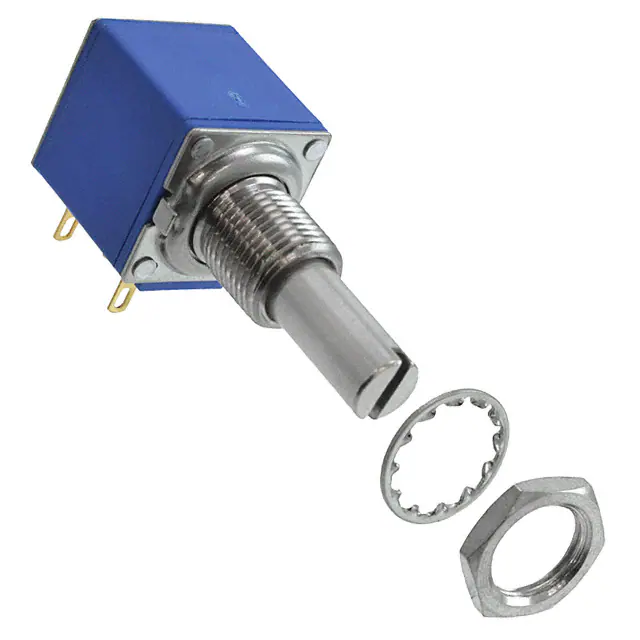

84A1A-B28-J15LPOT 10K OHM 1W WIREWOUND LINEAR |
375 |
|
Datasheet |
84 | Tray | Active | 10k | ±5% | 1W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
