RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GPDF6010.ACIRCULAR TRIPLE BAND DUAL FEED S Taoglas Limited |
77 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.17645GHz, 1.2276GHz, 1.278GHz, 1.525GHz, 1.561GHz, 1.57542GHz, 1.602GHz | - | Ceramic Patch | 7 | 1.5 | - | -1.5dBic, 1.8dBic, -1.5dBic, 2.6dBic, 4.2dBic, 4dBic, 2.7dBic | - | - | Solder | - | - | - | Surface Mount | 0.394" (10.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
MAT.176A4-IN-1 5G MULTI-ANTENNA BOARD (6 Taoglas Limited |
42 |
|
- |
- | Bulk | Active | Cellular | Wide Band | 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz, 3.4GHz, 3.925GHz, 5.537GHz | 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.2GHz ~ 3.5GHz, 3.3GHz ~ 4.65GHz, 5.15GHz ~ 5.925GHz | PCB Trace | 7 | 3 | - | 6.37dBi, 6.3dBi, 5.89dBi, 5.29dBi, 3.59dBi, 5.79dBi, 6.34dBi | - | Cable - 100mm | I-PEX MHF4L | - | - | - | Surface Mount | 0.157" (4.00mm) | 5G, HSPA, HSPA+, LTE, WCDMA |
|

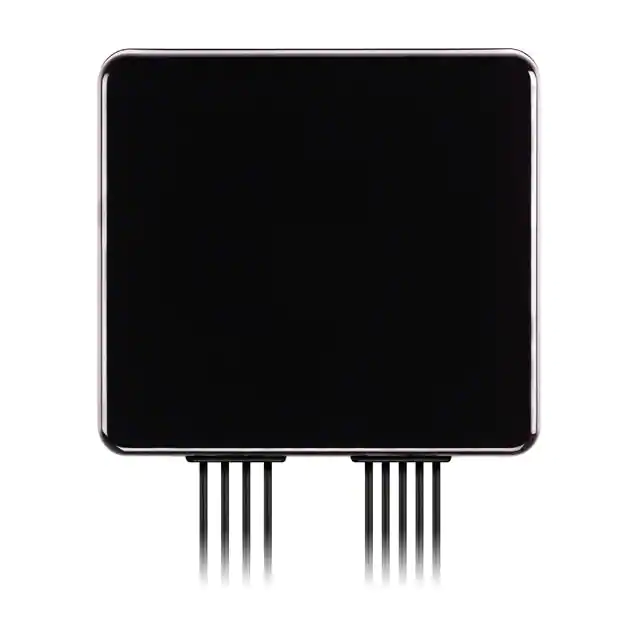

MA990.A.0019IN1 COMBO ANTENNA Taoglas Limited |
26 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 788.5MHz, 1.223GHz, 1.2445GHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.5755GHz, 1.6015GHz, 1.955GHz, 2.54GHz, 4.15GHz, 5.5375GHz, 6.525GHz | 617MHz ~ 960MHz, 1.207GHz ~ 1.239GHz, 1.241GHz ~ 1.248GHz, 1.427GHz ~ 1.518GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.564GHz ~ 1.587GHz, 1.593GHz ~ 1.61GHz, 1.71GHz ~ 2.2GHz, 2.39GHz ~ 2.69GHz, | Module | 13 | 3 | -10dB | 2.1dBi, 4.2dBi, 3.2dBi, 2.2dBi, 0.9dBi, 3.7dBi, 3.7dBi, 0.8dBi, 4dBi, 4.5dBi, 5.4dBi, 6.6dBi | - | Cable - 1m, LNA, Filter | SMA Male (2) | IP67 | - | - | Adhesive | 0.807" (20.50mm) | 3G, 4G, 5G, Beidou, GLONASS, GPS, GNSS, LTE, Wi-Fi |
|
|
MA351.A.BI.0013IN1 MAGNET MNT ANT 3M SMA(M) Taoglas Limited |
27 |
|
- |
Steedan | Bag | Active | Cellular, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 3.75GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.925GHz | Module | 8 | - | - | 1.1dBi, 3.5dBi, 5dBi, 5.1dBi, 6.6dBi, 6.9dBi, 5.9dBi, 3.3dBi | 10 W | Cable - 3m | SMA Male (2) | IP65 | - | - | Magnetic | 1.881" (47.78mm) | 3G, 4G, 5G, HSPA, HSPA+, LTE, WCDMA, Wi-Fi |
|
|
MA354.A.BICG.0014 IN1 MAGNET MNT ANT 3M SMA(M) Taoglas Limited |
44 |
|
- |
Steedan | Box | Active | Cellular, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.45GHz, 2.495GHz, 3.75GHz, 5.5GHz, 5.5375GHz, 6.1375GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.85GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz | Module | 11 | - | - | 1.6dBi, 3.5dBi, 5dBi, 5.1dBi, 6.6dBi, 4.2dBi, 6.9dBi, 5.9dBi, 3.3dBi, 7.7dBi, 3.9dBi | 10 W | Cable - 3m | RP-SMA Male, SMA Male | IP65 | - | - | Magnetic | 1.881" (47.78mm) | 3G, 4G, 5G, HSPA, HSPA+, LTE, WCDMA, Wi-Fi |
|

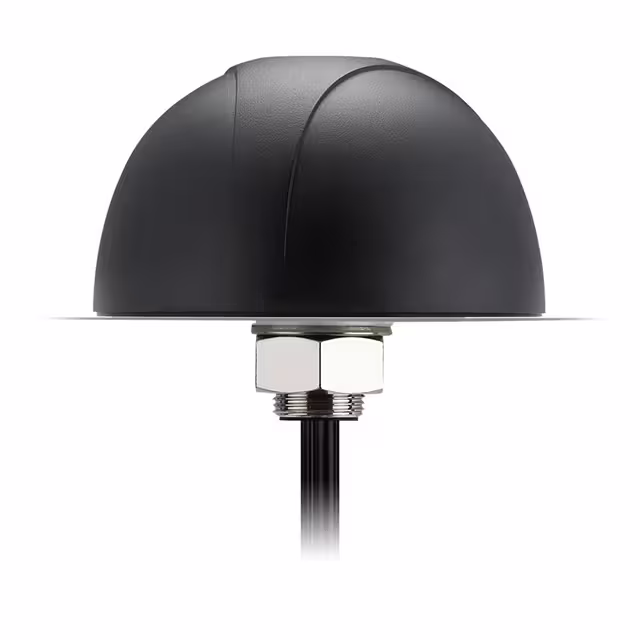

MA752.B.ABICG.001PANTHEON 3000MM GNSS-RG174 SMA(M Taoglas Limited |
64 |
|
- |
Pantheon | Box | Active | Cellular, Navigation, WiFi | Wide Band | 460MHz, 752MHz, 859MHz, 920MHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.495GHz, 5.375GHz | 450MHz ~ 470MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Dome | 12 | 2, 3 | - | -1.3dBi, 0.43dBi, 0.7dBi, 1.3dBi, 1.54dBi, 1.7dBi, 1.8dBi, 1.85dBi, 1.89dBi, 1.93dBi, 5dBi, 5.53dBi | - | Cable - 3m | RP-SMA Male | - | - | - | Panel Mount | 3.244" (82.40mm) | 2G, 3G, 4G, GLONASS, GPS, LTE, Wi-Fi |
|
|
GWLA.05GPS/GALILEO & 2.4GHZ MULTI-BAND Taoglas Limited |
947 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Bluetooth, Navigation, WiFi | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.575GHz, 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 2 | - | -5dB, -10dB | 0.28dBi, -2.17dBi, -0.82dBi, 0.24dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Bluetooth, GPS, Wi-Fi |
|

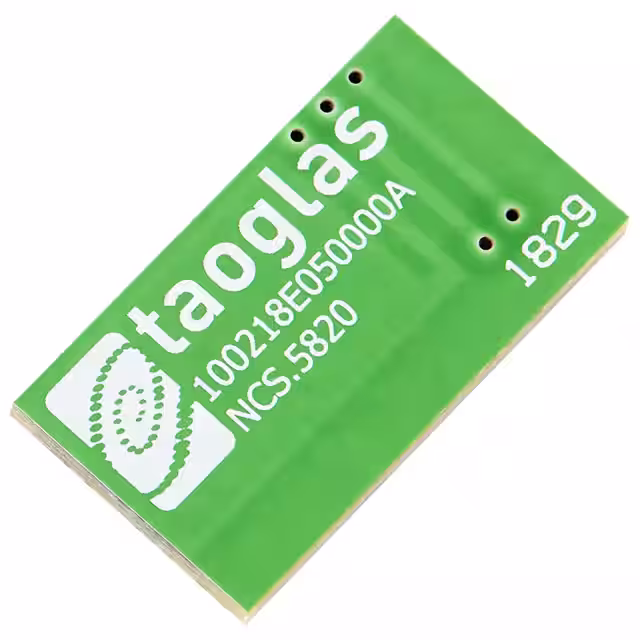

NCS.5820NB-IOT FR4 PCB ANTENNA FOR BANDS Taoglas Limited |
1,350 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 826.5MHz, 859MHz, 920MHz | 791MHz ~ 862MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz | Chip | 3 | - | -6dB, -7dB | 0.1dBi, 0.1dBi, -0.8dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | - |
|
PCS.50AACTIVE CELLULAR AND GNSS ANTENNA Taoglas Limited |
749 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular, Navigation, WiFi | Wide Band | 722MHz, 773MHz, 840MHz, 920MHz, 1.5845GHz, 2.2GHz | 698MHz ~ 746MHz, 746MHz ~ 800MHz, 800MHz ~ 880MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.61GHz, 1.71GHz ~ 2.69GHz | Chip | 6 | - | - | -4.8dBi, -2.5dBi, -3dBi, -1.1dBi, 0.8dBi, 3.2dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | 3G, 4G, 5G, Beidou, GLONASS, GPS, GNSS, LTE, Wi-Fi |
|
PC27.09.0100ARF ANT 800MHZ/900MHZ FLAT PATCH Taoglas Limited |
165 |
|
Datasheet |
TheStripe™ | Bag | Not For New Designs | Cellular | Wide Band | 800MHz, 900MHz, 1.8GHz, 1.9GHz | - | Flat Patch | 4 | 3.59, 2.02. 2.21, 2.3 | - | - | - | - | MMCX Male | - | - | - | Adhesive | 0.031" (0.80mm) | GSM |
