DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TIM 3.5-1219SMDC DC CONVERTER 9V 3.5W Traco Power |
0 |
|
Datasheet |
TIM 3.5SM (3.5W) | 16-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 9V | - | - | - | 389mA | 3.5 W | 5 kV | Medical | Remote On/Off, OVP, SCP | -40°C ~ 90°C (With Derating) | 80% | - | - | Surface Mount | - | - | - | - |
|

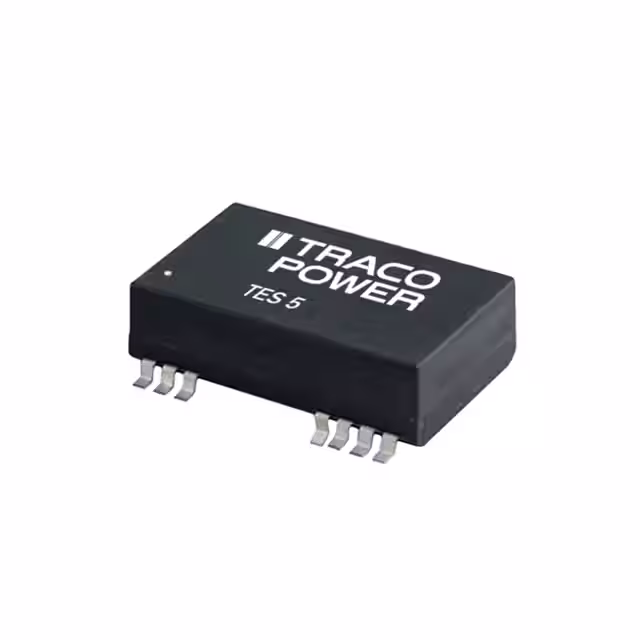

TES 5-1210DC DC CONVERTER 3.3V 4W Traco Power |
0 |
|
Datasheet |
TES 5 (5W) | 24-SMD Module, 14 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 1.2A | 4 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 76% | - | - | Surface Mount | - | - | - | - |
|
|
TES 5-4810DC DC CONVERTER 3.3V 4W Traco Power |
0 |
|
Datasheet |
TES 5 (5W) | 24-SMD Module, 14 Leads | Tube | Not For New Designs | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 1.2A | 4 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Surface Mount | - | - | - | - |
|
THL 10-4810DC DC CONVERTER 3.3V 8.3W Traco Power |
0 |
|
Datasheet |
THL 10 (10W) | 5-DIP Module, 4 Leads | Box | Active | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 2.5A | 8.3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 80°C (With Derating) | 83% | - | - | Through Hole | - | - | - | - |
|
TIM 3.5-2423DC DC CONVERTER +/-15V 3.5W Traco Power |
0 |
|
Datasheet |
TIM 3.5 (3.5W) | 16-DIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 117mA, 117mA | 3.5 W | 5 kV | Medical | Remote On/Off, OVP, SCP | -40°C ~ 90°C (With Derating) | 83% | - | - | Through Hole | - | - | - | - |
|
|
TIM 3.5-4822DC DC CONVERTER +/-12V 3.5W Traco Power |
0 |
|
Datasheet |
TIM 3.5 (3.5W) | 16-DIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 36V | 75V | 12V | -12V | - | - | 146mA, 146mA | 3.5 W | 5 kV | Medical | Remote On/Off, OVP, SCP | -40°C ~ 90°C (With Derating) | 81% | - | - | Through Hole | - | - | - | - |
|
TIM 3.5-4823DC DC CONVERTER +/-15V 3.5W Traco Power |
0 |
|
Datasheet |
TIM 3.5 (3.5W) | 16-DIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 36V | 75V | 15V | -15V | - | - | 117mA, 117mA | 3.5 W | 5 kV | Medical | Remote On/Off, OVP, SCP | -40°C ~ 90°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - |
|
THD 12-1210DC DC CONVERTER 3.3V 12W Traco Power |
0 |
|
Datasheet |
THD 12 (12W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 3.5A | 12 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | - | - | - | - |
|
TVN 3-4822DC DC CONVERTER +/-12V 3W Traco Power |
0 |
|
Datasheet |
TVN 3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 36V | 75V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 84% | - | - | Through Hole | - | - | - | - |
|
TIM 3.5-2413SMDC DC CONVERTER 15V 3.5W Traco Power |
0 |
|
Datasheet |
TIM 3.5SM (3.5W) | 16-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 234mA | 3.5 W | 5 kV | Medical | Remote On/Off, OVP, SCP | -40°C ~ 90°C (With Derating) | 83% | - | - | Surface Mount | - | - | - | - |
