Counters, Hour Meters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Operating Mode | Count Rate | Time Format | Number of Characters Per Row | Display Type | Display Characters - Height | Input Type | Output Type | Voltage - Supply | Reset | Panel Cutout Dimensions | Mounting Type | Termination Style | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
87622190COUNTER LCD 8 CHAR PANEL MOUNT |
0 |
|
Datasheet |
CTR24 | Box | Active | Time Counter (Hour Meter) | Up | - | 99999.99hrs, 9999hrs59min59sec | 8 | LCD - Black Characters, Orange Backlight | 0.314" (8.00mm) | Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
CSK4-YW-AC100COUNTER 4 CHAR 100V PANEL MOUNT |
0 |
|
Datasheet |
CSK | Bulk | Obsolete | Totalizer | Up | 15Hz | - | 4 | Decade Wheel | 0.157" (4.00mm) | Voltage | - | 100VAC | Front Panel | Rectangular - 38.00mm x 28.00mm | Panel Mount | Wire Leads | - |
|
|
CSK6-Y AC100COUNTER 6 CHAR 100V PANEL MOUNT |
0 |
|
Datasheet |
CSK | Bulk | Obsolete | Totalizer | Up | 15Hz | - | 6 | Decade Wheel | 0.157" (4.00mm) | Voltage | - | 100VAC | Front Panel | Rectangular - 49.00mm x 28.00mm | Panel Mount | Wire Wrap | - |
|
|
CSK6-YKW AC100COUNTER 6 CHAR 100V PANEL MOUNT |
0 |
|
Datasheet |
CSK | Bulk | Obsolete | Totalizer | Up | 15Hz | - | 6 | Decade Wheel | 0.157" (4.00mm) | Voltage | - | 100VAC | Front Panel | Rectangular - 49.00mm x 28.00mm | Panel Mount | Wire Leads | - |
|
|
H7ET-NV-300COUNTER LCD 7 CHAR PANEL MOUNT |
0 |
|
Datasheet |
H7ET | Bulk | Active | Time Counter (Hour Meter) | Up | - | 999999.9hrs; 3999day23.9hrs | 7 | LCD - Black Characters | 0.338" (8.60mm) | Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
LC4H-PS-R4-AC240VSCOUNTER LCD 4 CHAR 100-240V PNL |
0 |
|
Datasheet |
LC4H | Bulk | Obsolete | Preset | Up, Down, Command, Individual, Quadrature | 30Hz, 5kHz | - | 4, 4 | LCD - Dual Color Characters, Backlight | - | No Voltage | Relay | 100 ~ 240VAC | External, Front Panel | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
90215-00COUNTER HOUR METER |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

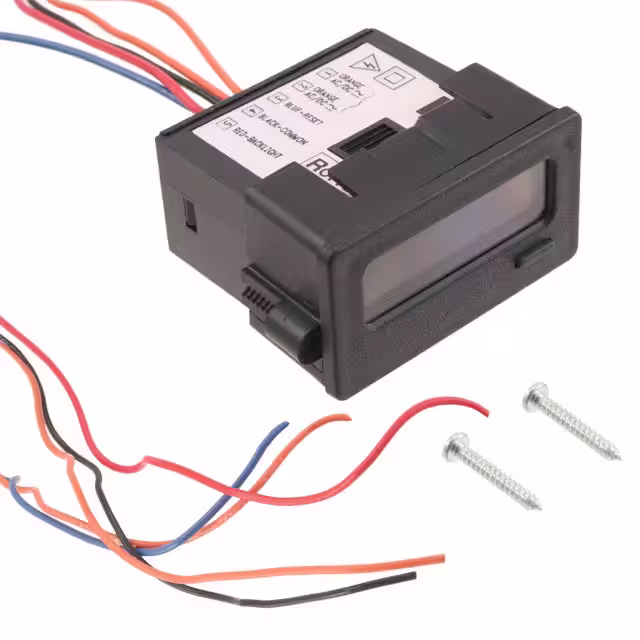

CUB7CVR0COUNTER LCD 8 CHAR 3.6V PANEL MT |
0 |
|
Datasheet |
CUB7 | Box | Active | Totalizer | Up | 30Hz, 50Hz, 5kHz, 10kHz | - | 8 | LCD - Red Characters, Backlight | 0.350" (8.90mm) | Voltage | - | Battery, 3.6VDC, 6 ~ 26VDC (Backlight) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Wire Leads | IP66 - Dust Tight, Water Resistant |
|
|
H7ER-NV1-HTACHOMETER LCD 5 CHAR PANEL MT |
0 |
|
Datasheet |
H7ER | Bulk | Active | Tachometer | Up | 10kHz | - | 5 | LCD - Black Characters, Green Backlight | 0.338" (8.60mm) | Voltage | - | None Required (Battery Included), 24VDC (Backlight) | Non-Resettable | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

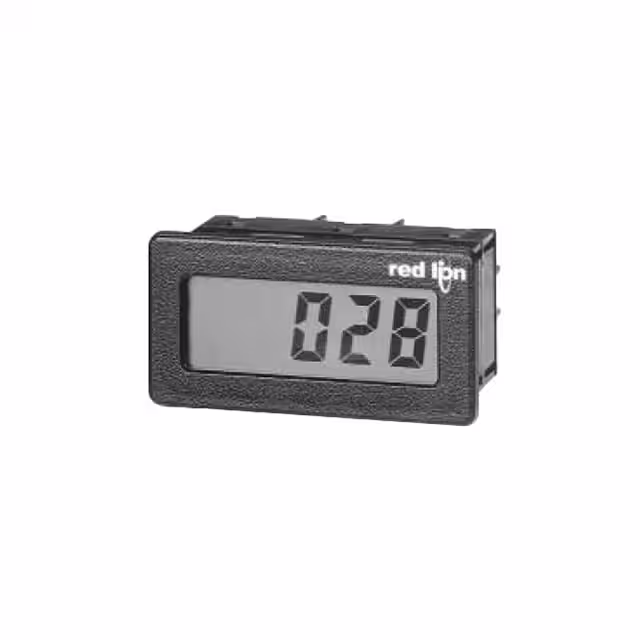

DT800010TACHOMETER LCD 5 CHAR 3.6V PNL |
0 |
|
Datasheet |
DITAK 8 | Box | Obsolete | Tachometer | Up | - | - | 5 | LCD - Green Characters, Backlight | 0.600" (15.20mm) | Voltage | - | Battery, 3.6VDC, 6 ~ 28VDC (Backlight) | Non-Resettable | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
DT800020TACHOMETER LCD 5 CHAR 3.6V PNL |
0 |
|
Datasheet |
DITAK 8 | Box | Obsolete | Tachometer | Up | - | - | 5 | LCD - Red Characters, Backlight | 0.600" (15.20mm) | Voltage | - | Battery, 3.6VDC, 6 ~ 28VDC (Backlight) | Non-Resettable | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
85098-03COUNTER 5 CHAR 5-110V PANEL MT |
0 |
|
- |
85000 | Bulk | Obsolete | Time Counter (Hour Meter) | Up | - | 9999.9hrs | 5 | Decade Wheel | 0.120" (3.00mm) | - | - | 5 ~ 110VDC | - | - | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant |
|
|
H7ER-NV1TACHOMETER LCD 5 CHAR PANEL MT |
0 |
|
Datasheet |
H7ER | Bulk | Active | Tachometer | Up | 10kHz | - | 5 | LCD - Black Characters | 0.338" (8.60mm) | Voltage | - | None Required (Battery Included) | Non-Resettable | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
H7EC-N-B-601COUNTER LCD 8 CHAR PANEL MOUNT |
0 |
|
Datasheet |
H7EC | Bulk | Active | Totalizer | Up | 30Hz, 1kHz | - | 8 | LCD - Black Characters | 0.338" (8.60mm) | No Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
CT6S-1P2TCOUNTER TIMER 24VAC/24-48VDC |
1 |
|
Datasheet |
CT | Box | Active | Batch, Preset, Tachometer, Timer, Totalizer | Up, Down | Multiple | Multiple | 6, 6 | LED - Green, Red Characters | 0.394" (10.00mm), 0.275" (7.00mm) | No Voltage, Voltage | Relay, Solid State | 24VAC, 24 ~ 48VDC | External, Front Panel | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant |
|
|
50077179-26COUNTER HOUR METER |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
89146-18COUNTER HOUR METER |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

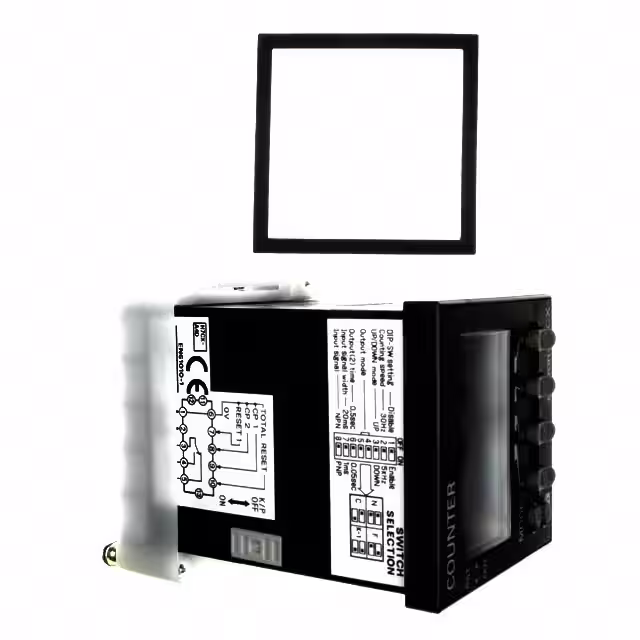

H7CX-A4D DC12-24QCOUNTER LCD 4 CHAR 12-24V PNL MT |
0 |
|
Datasheet |
H7CX | Box | Obsolete | Preset, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 5kHz | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.453" (11.50mm), 0.236" (6.00mm) | No Voltage, Voltage | Relay | 12 ~ 24VDC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
50059047-16COUNTER HOUR METER |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RC102C-CURATE INDICATOR |
0 |
|
- |
- | Bulk | Obsolete | Time Counter (Hour Meter) | Up | Multiple | Multiple | 6 | LCD - Red Characters, Backlight | - | Voltage | - | 90 ~ 270VAC/DC | External, Front Panel | Rectangular - 92.00mm x 46.00mm | Panel Mount | Screw Terminal | - |
