Counters, Hour Meters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Operating Mode | Count Rate | Time Format | Number of Characters Per Row | Display Type | Display Characters - Height | Input Type | Output Type | Voltage - Supply | Reset | Panel Cutout Dimensions | Mounting Type | Termination Style | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CX6S-1P2COUNTER TIMER 24VAC/24-48VDC |
5 |
|
Datasheet |
CX | Retail Package | Active | Batch, Preset, Tachometer, Timer, Totalizer | Up, Down | Multiple | Multiple | 6, 6 | LCD - White Characters, Green Characters | 0.600" (15.20mm), 0.484" (12.30mm) | No Voltage, Voltage | Relay | 24VAC, 24 ~ 48VDC | External, Front Panel | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP50 |
|
|
CT6Y-2P2COUNTER TIMER 24VAC/24-48VDC |
4 |
|
Datasheet |
CT | Retail Package | Active | Batch, Preset, Tachometer, Timer, Totalizer | Up, Down | Multiple | Multiple | 6, 6 | LED - Green, Red Characters | 0.374" (9.50mm), 0.275" (7.00mm) | No Voltage, Voltage | Relay (2), Solid State | 24VAC, 24 ~ 48VDC | External, Front Panel | Rectangular - 68.00mm x 31.50mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant |
|
|
CX6S-2P2COUNTER TIMER 24VAC/24-48VDC |
6 |
|
Datasheet |
CX | Retail Package | Active | Batch, Preset, Tachometer, Timer, Totalizer | Up, Down | Multiple | Multiple | 6, 6 | LCD - White Characters, Green Characters | 0.397" (10.10mm), 0.319" (8.10mm) | No Voltage, Voltage | Relay (2) | 24VAC, 24 ~ 48VDC | External, Front Panel | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP50 |
|
|
CX6M-1P4COUNTER TIMER 100-240 VAC |
18 |
|
Datasheet |
CX | Retail Package | Active | Batch, Preset, Tachometer, Timer, Totalizer | Up, Down | Multiple | Multiple | 6, 6 | LCD - White Characters, Green Characters | 0.600" (15.20mm), 0.484" (12.30mm) | No Voltage, Voltage | Relay, Solid State | 100 ~ 240VAC | External, Front Panel | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP50 |
|
|
CX6M-1P2COUNTER TIMER 24VAC/24-48VDC |
11 |
|
Datasheet |
CX | Retail Package | Active | Batch, Preset, Tachometer, Timer, Totalizer | Up, Down | Multiple | Multiple | 6, 6 | LCD - White Characters, Green Characters | 0.600" (15.20mm), 0.484" (12.30mm) | No Voltage, Voltage | Relay, Solid State | 24VAC, 24 ~ 48VDC | External, Front Panel | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP50 |
|
|
CX6S-2P2FCOUNTER TIMER 24VAC/24-48VDC |
12 |
|
Datasheet |
CX | Retail Package | Active | Batch, Preset, Tachometer, Timer, Totalizer | Up, Down | Multiple | Multiple | 6, 6 | LCD - White Characters, Green Characters | 0.600" (15.20mm), 0.484" (12.30mm) | No Voltage, Voltage | Relay (2), Solid State | 24VAC, 24 ~ 48VDC | External, Front Panel | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP50 |
|
|
CX6M-1P4FCOUNTER TIMER 100-240 VAC |
18 |
|
Datasheet |
CX | Retail Package | Active | Batch, Preset, Tachometer, Timer, Totalizer | Up, Down | Multiple | Multiple | 6, 6 | LCD - White Characters, Green Characters | 0.600" (15.20mm), 0.484" (12.30mm) | Free Voltage | Relay, Solid State | 100 ~ 240VAC | External, Front Panel | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP50 |
|
|
CX6M-2P4COUNTER TIMER 100-240 VAC |
24 |
|
Datasheet |
CX | Retail Package | Active | Batch, Preset, Tachometer, Timer, Totalizer | Up, Down | Multiple | Multiple | 6, 6 | LCD - White Characters, Green Characters | 0.600" (15.20mm), 0.484" (12.30mm) | No Voltage, Voltage | Relay (2), Solid State | 100 ~ 240VAC | External, Front Panel | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP50 |
|
|
CX6M-2P2COUNTER TIMER 24VAC/24-48VDC |
3 |
|
Datasheet |
CX | Retail Package | Active | Batch, Preset, Tachometer, Timer, Totalizer | Up, Down | Multiple | Multiple | 6, 6 | LCD - White Characters, Green Characters | 0.600" (15.20mm), 0.484" (12.30mm) | No Voltage, Voltage | Relay (2), Solid State | 24VAC, 24 ~ 48VDC | External, Front Panel | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP50 |
|
|
CX6M-2P4FCOUNTER TIMER 100-240 VAC |
5 |
|
Datasheet |
CX | Retail Package | Active | Batch, Preset, Tachometer, Timer, Totalizer | Up, Down | Multiple | Multiple | 6, 6 | LCD - White Characters, Green Characters | 0.600" (15.20mm), 0.484" (12.30mm) | Free Voltage | Relay (2), Solid State | 100 ~ 240VAC | External, Front Panel | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP50 |
|
701PR-112COUNTER LCD 6 CHAR 12-48V T/H |
0 |
|
Datasheet |
700 | Bulk | Active | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters | 0.196" (5.00mm) | Voltage | - | 12 ~ 48VDC | External | - | Through Hole | PC Pin | - |
|
703PR-102COUNTER LCD 6 CHAR 6-12V T/H |
0 |
|
Datasheet |
703 | Bulk | Active | Totalizer | Up | 500Hz | - | 6 | LCD - Black Characters | 0.196" (5.00mm) | No Voltage | - | 6 ~ 12VAC, 5 ~ 12VDC | External | - | Through Hole | PC Pin | - |
|
701ZR001N1248D2060ACOUNTER LCD 6 CHAR 20-60V PNL MT |
0 |
|
Datasheet |
700 | Bulk | Active | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters | 0.196" (5.00mm) | Voltage | - | 20 ~ 60VAC, 12 ~ 48VDC | External | Rectangular - 36.80mm x 24.10mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant |
|
700DR00101248D2060ACOUNTER LCD 6 CHAR 20-60V PNL MT |
0 |
|
Datasheet |
700 | Bulk | Active | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters | 0.196" (5.00mm) | Voltage | - | 20 ~ 60VAC, 12 ~ 48VDC | External | Rectangular - 45.00mm x 22.20mm | Panel Mount | Quick Connect - 0.187" (4.7mm) | IP66 - Dust Tight, Water Resistant |
|
|
TS2M1-1-16A-110V V2DIN RAIL - DAILY / WEEKLY TIME S |
0 |
|
Datasheet |
- | Box | Active | Timer | - | - | - | 2, 6 | LCD - Black Characters | 0.133" (3.39mm), 0.200" (5.07mm) | No Voltage | Relay | 110VAC | - | - | DIN Rail | Screw Terminal | - |
|

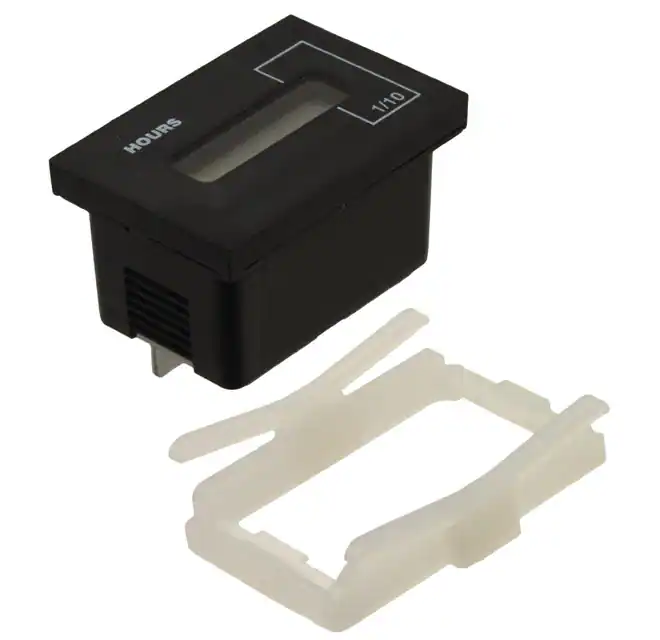

700ZN001N48150D100230ACOUNTER LCD 6 CHAR 100-230V PNL |
0 |
|
Datasheet |
700 | Bulk | Active | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters | 0.196" (5.00mm) | Voltage | - | 100 ~ 230VAC, 48 ~ 150VDC | Non-Resettable | Rectangular - 36.80mm x 24.10mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant |
|
|
701TXN00101248DCOUNTER LCD 6 CHAR 12-48V PNL MT |
0 |
|
Datasheet |
700 | Box | Active | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters | 0.196" (5.00mm) | Voltage | - | 12 ~ 48VDC | External | Rectangular - 36.80mm x 24.10mm | Panel Mount | Quick Connect - 0.187" (4.7mm) | IP66 - Dust Tight, Water Resistant |
|
|
700DR001048150D100230ACOUNTER LCD 6 CHAR 100-230V PNL |
0 |
|
Datasheet |
700 | Bulk | Active | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters | 0.196" (5.00mm) | Voltage | - | 100 ~ 230VAC, 48 ~ 150VDC | External | Rectangular - 45.00mm x 22.20mm | Panel Mount | Quick Connect - 0.187" (4.7mm) | IP66 - Dust Tight, Water Resistant |
|
87622161COUNTER LCD 8 CHAR PANEL MOUNT |
0 |
|
Datasheet |
CTR24 | Box | Active | Time Counter (Hour Meter) | Up | - | 99999.99hrs, 9999hrs59min59sec | 8 | LCD - Black Characters | 0.314" (8.00mm) | No Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

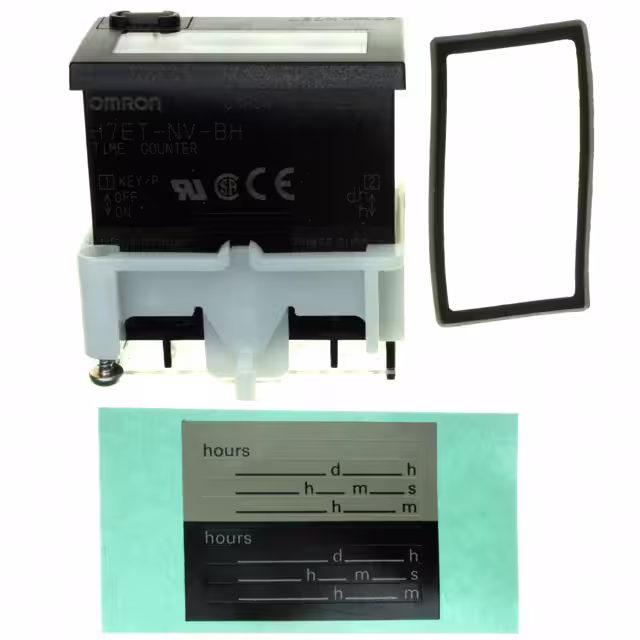

H7ET-NV-BHCOUNTER LCD 7 CHAR PANEL MOUNT |
1 |
|
Datasheet |
H7ET | Box | Active | Time Counter (Hour Meter) | Up | - | 999999.9hrs; 3999day23.9hrs | 7 | LCD - Black Characters, Green Backlight | 0.338" (8.60mm) | Voltage | - | None Required (Battery Included), 24VDC (Backlight) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
