Counters, Hour Meters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Operating Mode | Count Rate | Time Format | Number of Characters Per Row | Display Type | Display Characters - Height | Input Type | Output Type | Voltage - Supply | Reset | Panel Cutout Dimensions | Mounting Type | Termination Style | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
701PR-102COUNTER LCD 6 CHAR 5-12V T/H |
3,907 |
|
Datasheet |
700 | Tray | Active | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters | 0.196" (5.00mm) | Voltage | - | 5 ~ 12VDC | External | - | Through Hole | PC Pin | - |
|
701FR001048150D10023COUNTER LCD 6 CHAR 100-230V PNL |
60 |
|
Datasheet |
700 | Bulk | Active | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters | 0.196" (5.00mm) | Voltage | - | 100 ~ 230VAC, 48 ~ 150VDC | External | Rectangular - 36.80mm x 24.10mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant |
|
|
701FR00101248D2060ACOUNTER LCD 6 CHAR 20-60V PNL MT |
38 |
|
Datasheet |
700 | Bulk | Active | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters | 0.196" (5.00mm) | Voltage | - | 20 ~ 60VAC, 12 ~ 48VDC | External | Rectangular - 36.80mm x 24.10mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant |
|
701DR001048150D10023COUNTER LCD 6 CHAR 100-230V PNL |
127 |
|
Datasheet |
700 | Bulk | Active | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters | 0.196" (5.00mm) | Voltage | - | 100 ~ 230VAC, 48 ~ 150VDC | External | Rectangular - 45.00mm x 22.20mm | Panel Mount | Quick Connect - 0.187" (4.7mm) | IP66 - Dust Tight, Water Resistant |
|
|
701DR00101248D2060ACOUNTER LCD 6 CHAR 20-60V PNL MT |
79 |
|
Datasheet |
700 | Bulk | Active | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters | 0.196" (5.00mm) | Voltage | - | 20 ~ 60VAC, 12 ~ 48VDC | External | Rectangular - 45.00mm x 22.20mm | Panel Mount | Quick Connect - 0.187" (4.7mm) | IP66 - Dust Tight, Water Resistant |
|
CUB7TCS0COUNTER LCD 8 CHAR PANEL MOUNT |
28 |
|
Datasheet |
CUB7 | Box | Active | Time Counter (Hour Meter) | Up | - | Multiple | 8 | LCD - Black Characters | 0.350" (8.90mm) | No Voltage, Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Wire Leads | IP66 - Dust Tight, Water Resistant |
|
H7EC-N-BCOUNTER LCD 8 CHAR PANEL MOUNT |
35 |
|
Datasheet |
H7EC | Bulk | Active | Totalizer | Up | 30Hz, 1kHz | - | 8 | LCD - Black Characters | 0.338" (8.60mm) | No Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
H7EC-NCOUNTER LCD 8 CHAR PANEL MOUNT |
65 |
|
Datasheet |
H7EC | Bulk | Active | Totalizer | Up | 30Hz, 1kHz | - | 8 | LCD - Black Characters | 0.338" (8.60mm) | No Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
CUB7CCS0COUNTER LCD 8 CHAR 3.6V PANEL MT |
156 |
|
Datasheet |
CUB7 | Box | Active | Totalizer | Up | 30Hz, 50Hz, 5kHz, 10kHz | - | 8 | LCD - Black Characters | 0.350" (8.90mm) | No Voltage, Voltage | - | Battery, 3.6VDC | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Wire Leads | IP66 - Dust Tight, Water Resistant |
|
|
H7EC-NFV-BCOUNTER LCD 8 CHAR PANEL MOUNT |
58 |
|
Datasheet |
H7EC | Bulk | Active | Totalizer | Up | 20Hz | - | 8 | LCD - Black Characters | 0.338" (8.60mm) | Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
H7EC-NV-BCOUNTER LCD 8 CHAR PANEL MOUNT |
38 |
|
Datasheet |
H7EC | Bulk | Active | Totalizer | Up | 30Hz, 1kHz | - | 8 | LCD - Black Characters | 0.338" (8.60mm) | Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
H7ET-NFV1-BCOUNTER LCD 7 CHAR PANEL MOUNT |
26 |
|
Datasheet |
H7ET | Bulk | Active | Time Counter (Hour Meter) | Up | - | 9999hrs59.9min; 999hrs59min59sec | 7 | LCD - Black Characters | 0.338" (8.60mm) | Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

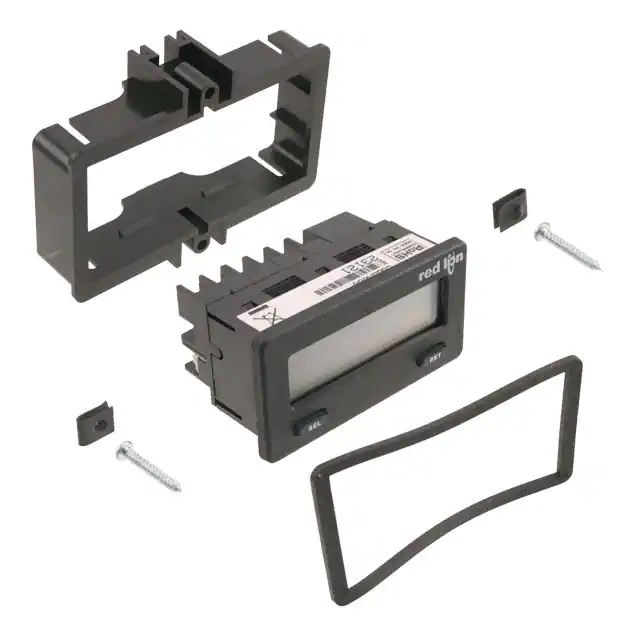

CUB5R000COUNTER LCD 8 CHAR 9-28V PNL MT |
83 |
|
Datasheet |
CUB5 | Bulk | Active | Batch, Tachometer, Totalizer | Up, Down, Command, Individual, Quadrature | 50Hz, 20kHz | - | 8 | LCD - Black Characters | 0.460" (11.70mm) | No Voltage, Voltage | - | 9 ~ 28VDC | Front Panel, Programmable | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
LM-HD2AS-H11COUNTER LCD 6 CHAR 9-64V PNL MT |
44 |
|
Datasheet |
LM | Bulk | Not For New Designs | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters | 0.275" (7.00mm) | - | - | 9 ~ 64VAC/DC | Non-Resettable | Rectangular - 36.58mm x 23.88mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof |
|

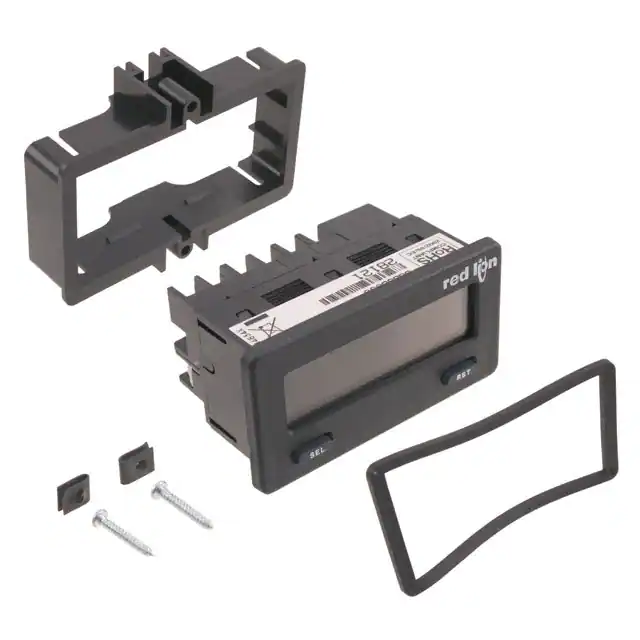

CUB5B000COUNTER LCD 8 CHAR 9-28V PNL MT |
76 |
|
Datasheet |
CUB5 | Bulk | Active | Batch, Tachometer, Totalizer | Up, Down, Command, Individual, Quadrature | 50Hz, 20kHz | - | 8 | LCD - Red Characters, Backlight | 0.460" (11.70mm) | No Voltage, Voltage | - | 9 ~ 28VDC | Front Panel, Programmable | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
99782810COUNTER 8 CHAR 10-30V PANEL MT |
27 |
|
Datasheet |
CHM24 | Box | Active | Time Counter (Hour Meter) | Up | - | 999999.99hrs | 8 | Decade Wheel | 0.157" (4.00mm) | Voltage | - | 10 ~ 30VDC | Non-Resettable | Rectangular - 45.00mm x 22.20mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP52 - Dust Protected |
|
XC1200-CU-ROHSPROGRAMMABLE COUNTER |
53 |
|
Datasheet |
- | Box | Active | Preset, Tachometer | Up, Down, Quadrature | Multiple | Multiple | 6 | LED - Red Characters | - | Voltage | Relay | 90 ~ 270VAC/DC | External, Front Panel | Rectangular - 92.00mm x 46.00mm | Panel Mount | Screw Terminal | - |
|
XTC5400-CUMULTI FUNCTION TIMER WITH COUNTE |
50 |
|
Datasheet |
- | Box | Active | Batch, Preset, Timer | Up, Down | - | Multiple | 4, 4 | LED - Dual Color Characters | - | Voltage | Relay (2) | 90 ~ 270VAC/DC | Front Panel, Programmable | Square - 46.00mm x 46.00mm | Panel Mount | Screw Terminal | - |
|
LM-HH4AS-H21COUNTER LCD 6 CHAR 9-64V PNL MT |
95 |
|
Datasheet |
LM | Bulk | Not For New Designs | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters | 0.275" (7.00mm) | - | - | 9 ~ 64VAC/DC | External | Rectangular - 36.58mm x 23.88mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof |
|
H7ET-N-BCOUNTER LCD 7 CHAR PANEL MOUNT |
87 |
|
Datasheet |
H7ET | Bulk | Active | Time Counter (Hour Meter) | Up | - | 999999.9hrs; 3999day23.9hrs | 7 | LCD - Black Characters | 0.338" (8.60mm) | No Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
