Optomechanical
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Length | Outer Diameter | Inner Diameter | Boreholes | Adjustment Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G403381000LINEAR STAGE TMS 50-16 |
3 |
|
Datasheet |
- | Box | Active | Adjustment Unit | 60.5mm | - | - | M3 | 16mm |
|
G062004000MICROBENCH SET OPTICS |
2 |
|
Datasheet |
LINOS Microbench | Box | Active | Optics Set | - | - | - | - | - |
|
G4046010001/4" SAPPHIRE HARD SEAT HS250-10 |
8 |
|
Datasheet |
LINOS Mirrors | Bag | Active | Hard Seat | 0.78mm | 6.3mm | - | - | - |
|
G061032000MOUNTING PLATE 30E, LATCHABLE |
12 |
|
Datasheet |
LINOS Microbench | Box | Active | Mounting Plate | 10mm | - | - | M2.3 | - |
|
G061024000MOUNTING PLATE M35X0.5, LATCHABL |
9 |
|
Datasheet |
LINOS Microbench | Box | Active | Mounting Plate | 10mm | - | - | M2.3 | - |
|
G065256000ACCESSORY, FILTER HOLDER FOR 3 F |
2 |
|
Datasheet |
LINOS Tube System C | Bag | Active | Holder | - | - | - | - | - |
|
|
G061244000TUBE C - CLAMP HOLDER 35 |
3 |
|
Datasheet |
- | Bag | Active | Holder | 15mm | - | 35mm | M4, M6, 6.6mm | - |
|
G026413000CARRIER X 95-50, COLORLESS, W/O |
5 |
|
Datasheet |
LINOS X 95 System | Bag | Active | Carrier | 145mm | - | - | - | - |
|
|
G038853000FC FIBER ADAPTER |
2 |
|
Datasheet |
LINOS Tube System C | Bag | Active | - | - | - | - | - | - |
|
G026416000CARRIER X 95-120, COLORLESS, W/O |
3 |
|
Datasheet |
LINOS X 95 System | Bag | Active | Carrier | 145mm | - | - | - | - |
|
G065236000BEAM DEFLECTOR CUBE C-5 |
2 |
|
Datasheet |
LINOS Tube System C | Bag | Active | Cube | 40mm | - | - | M2.3 | - |
|

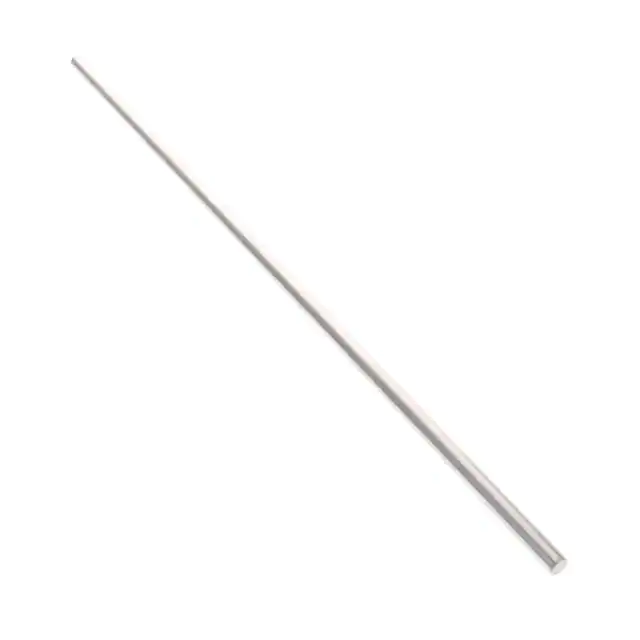

G061216000SET OF RODS 300MM 10PCS |
2 |
|
Datasheet |
LINOS Microbench | Bulk | Active | Rod | 300mm | 6mm | - | - | - |
|
G026519000CARRIER X 95-30, BLACK, W/ HOLE |
0 |
|
Datasheet |
LINOS X 95 System | Bag | Active | Carrier | 145mm | - | - | - | - |
|
G024446000V-CLAMP HOLDER 50 - M |
0 |
|
Datasheet |
LINOS Mounts and Posts | Bag | Active | Holder | 95mm | 80mm | - | M4, M6 | - |
|
G061361000FLAT RAIL FLS 40-1000 |
1 |
|
Datasheet |
LINOS Microbench | Bag | Active | Flat Rail | 1000mm | - | - | 6.5mm x 50.8mm Slot | - |
|
G026110000PROFILE X 95; 1000MM |
1 |
|
Datasheet |
LINOS X 95 System | Tube | Active | Hollow X 95 Profile | 1000mm | 80mm | 72mm | - | - |
|
G063010012SPACER 22.4 |
6 |
|
Datasheet |
LINOS Tube System C | Bulk | Active | Spacer | 3.6mm | 22.4mm | - | - | - |
|
G063666000RETAINING RING M23.2X0.75 |
5 |
|
Datasheet |
- | Bag | Active | Retaining Ring | 3mm | 23.2mm | 21mm | - | - |
|

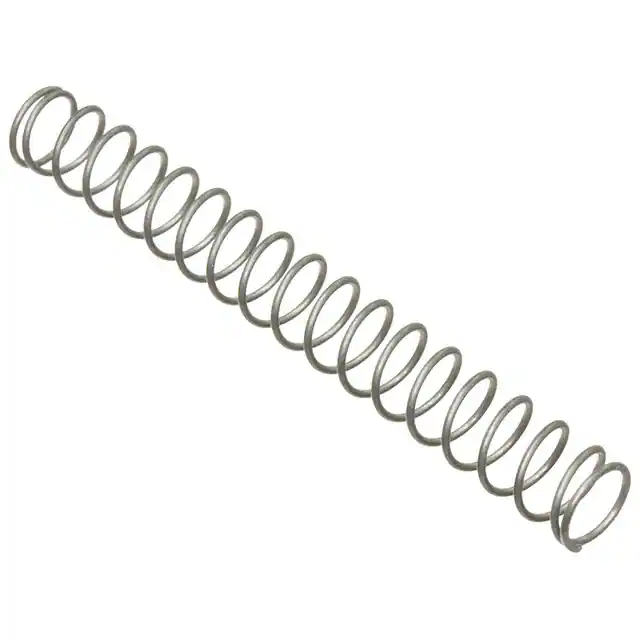

G061159000COMPRESSION SPRING, 60X8X0.7 |
16 |
|
Datasheet |
LINOS Microbench | Box | Active | Accessory | - | - | - | - | - |
|
G061207000ROD 20 MM |
3 |
|
Datasheet |
LINOS Microbench | Box | Active | Rod | 20mm | 6mm | - | - | - |
