Triac, SCR Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Zero Crossing Circuit | Number of Channels | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

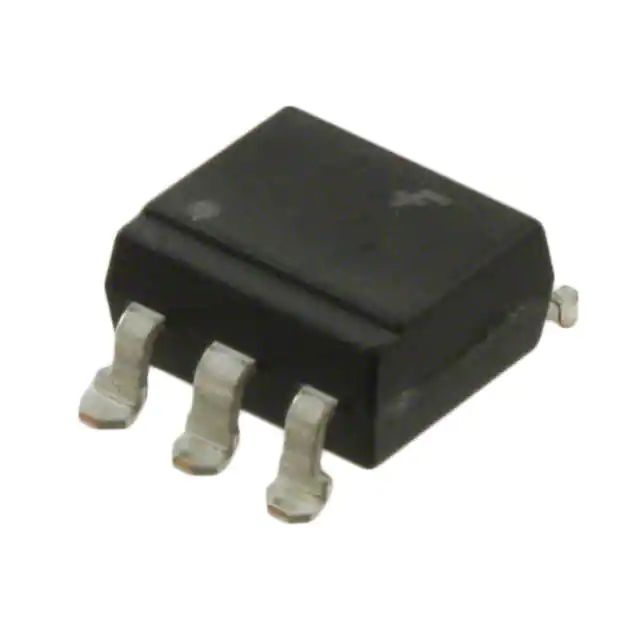

FOD4116STRIAC OUTPUT OPTOCOUPLER WITH ZE Fairchild Semiconductor |
265 |
|
Datasheet |
- | 6-SMD, Gull Wing | Bulk | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, UL |
|
|
FOD4116SDTRIAC OUTPUT OPTOCOUPLER WITH ZE Fairchild Semiconductor |
188 |
|
Datasheet |
- | 6-SMD, Gull Wing | Bulk | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, UL |
|
MOC3011VMTRIAC OUTPUT OPTOCOUPLER Fairchild Semiconductor |
1,000 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac | No | 1 | 4170Vrms | 250 V | - | 10mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
|
|
MOC3021FMTRIAC OUTPUT OPTOCOUPLER Fairchild Semiconductor |
1,000 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Obsolete | Triac | No | 1 | 7500Vpk | 400 V | - | 15mA | - | 100µA (Typ) | - | - | 60 mA | - | Surface Mount | 6-SMD | - |
|
MOC3082SVMTRIAC OUTPUT OPTOCOUPLER WITH ZE Fairchild Semiconductor |
660 |
|
Datasheet |
- | 6-SMD, Gull Wing | Bulk | Active | Triac | Yes | 1 | 4170Vrms | 800 V | 600V/µs | 10mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | IEC/EN/DIN, UL |
|
|
4N393SSCR OUTPUT OPTOCOUPLER Fairchild Semiconductor |
500 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Obsolete | SCR | No | 1 | 5300Vrms | 200 V | 500V/µs | 30mA | 300 mA | 1mA | 50µs (Max) | 1.1V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | UR, VDE |
|
|
MOC3082TVMTRIAC OUTPUT OPTOCOUPLER WITH ZE Fairchild Semiconductor |
1,000 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | Triac | Yes | 1 | 4170Vrms | 800 V | 600V/µs | 10mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
|
|
MOC3023SV-MTRIAC OUTPUT OPTOCOUPLER, 5300V Fairchild Semiconductor |
1,000 |
|
Datasheet |
- | 6-SMD, Gull Wing | Bulk | Active | Triac | No | 1 | 4170Vrms | 400 V | - | 5mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL, VDE |
|
|
MOC3011SR2VMTRIAC OUTPUT OPTOCOUPLER, 5300V Fairchild Semiconductor |
1,000 |
|
Datasheet |
- | 6-SMD, Gull Wing | Bulk | Active | Triac | No | 1 | 4170Vrms | 250 V | - | 10mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | IEC/EN/DIN, UL |
|
|
MOC3061VMTRIAC OUTPUT OPTOCOUPLER WITH ZE Fairchild Semiconductor |
978 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Bulk | Active | Triac | Yes | 1 | 4170Vrms | 600 V | 600V/µs | 15mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
