Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-260L-500EOPTOISO 3.75KV OPEN COLL 8DIP GW |
3,990 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
ACPL-M75N-500EIND AMBER SINGLES T&R |
2,600 |
|
Datasheet |
ACPL-M75N | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 30kV/µs | DC | Open Collector | 10 mA | 15MBd | 55ns, 55ns | 6ns, 5ns | 1.5V | 20mA | 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 5-SO |
|
ACPL-P483-000EOPTOISO 3.75KV PUSH PULL 6SO |
2,342 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 30kV/µs | DC | Push-Pull, Totem Pole | 50 mA | - | 120ns, 120ns | 6ns, 6ns | 1.5V | 10mA | 4.5V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched |
|
HCPL-J456-000EOPTOISO 3.75KV OPEN COLL 8DIP |
1,503 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 480ns | - | 1.6V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
RV1S9060ACCSP-10YV#SC0HI-SPEED OPTOCPLR LSO-5 |
2,113 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width), 5 Leads | Strip | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | - | CMOS | 10 mA | 15Mbps | 60ns, 60ns | 5ns, 5ns | 1.55V | 6mA | 6V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSO |
|
|
PS9013-Y-V-AXLSO-5 |
685 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width), 5 Leads | Strip | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.56V | 25mA | 4.5V ~ 25V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSOP |
|
ACPL-M46U-000EOPTOISO 3.75KV OPN COLLECTOR 5SO |
5,490 |
|
Datasheet |
R²Coupler™ | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tube | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 550ns | - | 1.5V | 20mA | 4.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 5-SO |
|
FOD0721OPTOISO 3.75KV PUSH PULL 8SO |
2,890 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25Mbps | 40ns, 40ns | 5ns, 4.5ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
VO0631-X001TOPTOISO 4KV 2CH OPEN DRAIN 8SOIC |
1,619 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 4000Vrms | 5kV/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.4V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
.jpg)
|
FOD8160R2VOPTOISO 5KV OPEN COLLECTOR 5SOP |
880 |
|
Datasheet |
- | 6-SOIC (0.362", 9.20mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 90ns, 80ns | 22ns, 9ns | 1.45V | 25mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 5-SOP |
|
ACPL-K72T-060EOPTOISO 5KV PUSH PULL 8SO |
1,590 |
|
Datasheet |
- | 8-SOIC (0.268", 6.81mm Width) | Tube | Active | 1 | 1/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | - | - | 100ns, 100ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SO Stretched |
|
|
VOW137-X017TOPTOISO 5.3KV OPN COLLECTOR 8SMD |
1,506 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 5300Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10MBd | 100ns, 100ns | 14ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
|
PS9121-AXOPTOISO 3.75KV OPN COLLECTOR 5SO |
492 |
|
Datasheet |
NEPOC | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Strip | Not For New Designs | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 25 mA | 15Mbps | 75ns, 75ns | 20ns, 5ns | 1.65V | 30mA | 2.7V ~ 3.6V | - | - | -40°C ~ 85°C | Surface Mount | 5-SO |
|

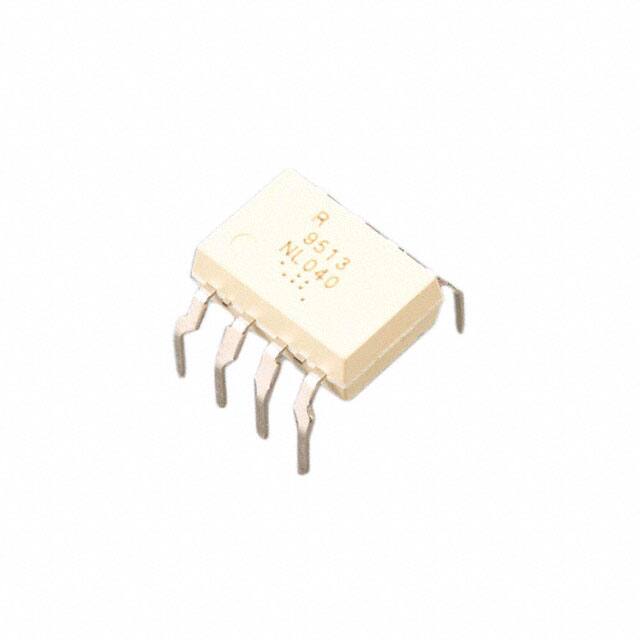

PS9513L1-AXOPTOISO 5KV OPEN COLLECTOR 8DIP |
623 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
|
ACPL-P611-500EOPTOISO 3.75KV OPN COLLECTOR 6SO |
6,754 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 6-SO |
|
|
ACPL-M71U-500EOPTOISO 3.75KV PUSH PULL 5SO |
4,449 |
|
Datasheet |
R²Coupler™ | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | - | - | 35ns, 35ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 5-SO |
|
|
ACPL-W480-000EOPTOISO 5KV PUSH PULL 6SO |
1,973 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 25 mA | - | 350ns, 350ns | 16ns, 20ns | 1.7V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 6-SO Stretched |
|
|
RV1S9062ACCSP-10YC#SC0OPTOISO 5KV 1 PUSH PULL 5-LSOP |
2,800 |
|
Datasheet |
RV | 6-SOIC (0.295", 7.50mm Width), 5 Leads | Strip | Active | 1 | 1/0 | 5000Vrms | 100kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 15Mbps | 60ns, 60ns | - | 1.54V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSOP |
|
|
RV1S9061ACCSP-10YV#SC0LSO-5 |
2,793 |
|
Datasheet |
RV | 6-SOIC (0.295", 7.50mm Width), 5 Leads | Strip | Active | 1 | 1/0 | 5000Vrms | 100kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 15Mbps | 60ns, 60ns | - | 1.55V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSOP |
|
|
HCPL-2202-500EOPTOISO 3.75KV PUSH PULL 8DIP GW |
123 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
