Position, Proximity, Speed (Modules)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Output Type | Actuator Material | Termination Style | Frequency | Voltage - Supply | Must Operate | Must Release | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

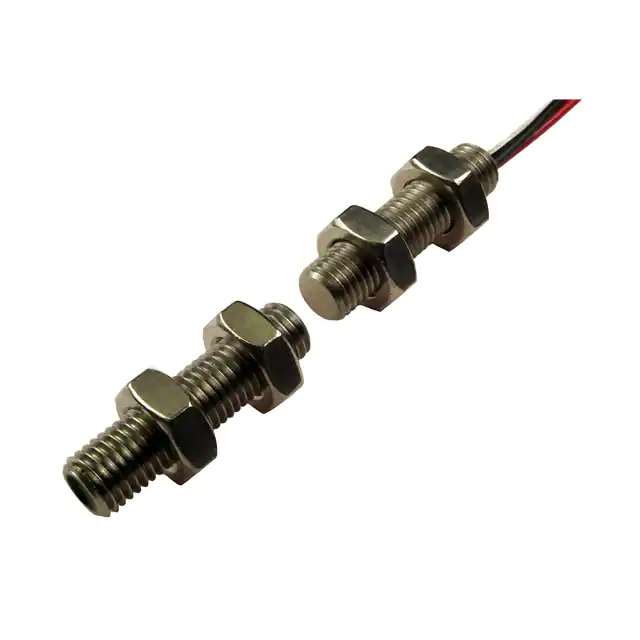

2602-1900-400REED SENSOR SET SPDT 20W 150V 1A |
250 |
|
Datasheet |
2602 | Module, Wire Leads | Retail Package | Active | Reed Switch | SPDT | Magnet | Wire Leads | 250 Hz | - | 20 ~ 25AT | - | -40°C ~ 105°C | - | - |
|
2020-1710-100REED SENSOR SPDT 100W 120V 3A |
250 |
|
Datasheet |
2020 | Module, Wire Leads | Retail Package | Active | Reed Switch | SPDT | Magnet | Wire Leads | - | 85VAC, 120VDC | 50 ~ 65AT | - | -40°C ~ 105°C | - | - |
|
BMF00A1DIMENSION=16.8 X 2.9 X 4.5 MM, C |
45 |
|
Datasheet |
- | Module | Bag | Active | - | - | Magnet | Cable | 7 kHz | 10V ~ 30V | - | - | -25°C ~ 85°C | - | - |
|
BMF00A2DIMENSION=16.8 X 2.9 X 4.5 MM, C |
582 |
|
Datasheet |
- | Module | Bag | Active | - | - | Magnet | Connector | 7 kHz | 10V ~ 30V | - | - | -25°C ~ 85°C | - | - |
|
|
BMF00A3DIMENSION=16.8 X 2.9 X 4.5 MM, C |
489 |
|
Datasheet |
- | Module | Bag | Active | - | - | Magnet | Connector | 7 kHz | 10V ~ 30V | - | - | -25°C ~ 85°C | - | - |
|
BMF00FCDIMENSION=16.8 X 2.9 X 4.5 MM, C |
720 |
|
Datasheet |
- | Module | Bag | Active | - | - | Magnet | Connector | 7 kHz | 10V ~ 30V | - | - | -25°C ~ 85°C | - | - |
|

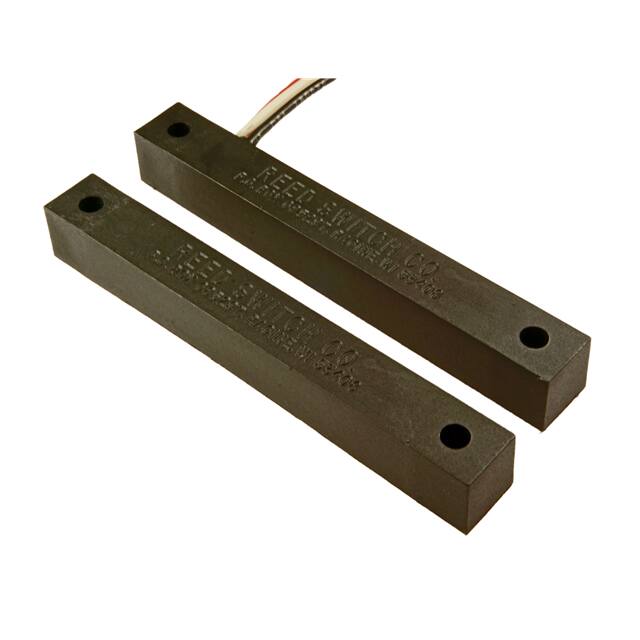

2020-1710-400REED SENSOR SET SPDT 100W 120V 3 |
250 |
|
Datasheet |
2020 | Module, Wire Leads | Retail Package | Active | Reed Switch | SPDT | Magnet | Wire Leads | - | - | 50 ~ 65AT | - | -40°C ~ 105°C | - | - |
|
BMF00C4DIMENSION=23.5 X 5 X 5.5 MM, CON |
1,358 |
|
Datasheet |
- | Module | Bag | Active | - | - | Magnet | Connector | 3 kHz | 10V ~ 30V | - | - | -25°C ~ 85°C | - | - |
|
BMF00ELDIMENSION=24 X 3 X 3.75 MM, CONN |
201 |
|
Datasheet |
- | Module | Bag | Active | - | - | Magnet | Connector | 3 kHz | 10V ~ 30V | - | - | -25°C ~ 85°C | - | - |
|
|
BMF00C6DIMENSION=23.5 X 5 X 5.5 MM, CON |
74 |
|
Datasheet |
- | Module | Bag | Active | - | - | Magnet | Connector | 3 kHz | 10V ~ 30V | - | - | -25°C ~ 85°C | - | - |
|
BMF00ARDIMENSION=23.5 X 5 X 5.5 MM, CAB |
445 |
|
Datasheet |
- | Module | Bag | Active | - | - | Magnet | Cable | 3 kHz | 10V ~ 30V | - | - | -25°C ~ 85°C | - | - |
|
BMF00C5DIMENSION=23.5 X 5 X 5.5 MM, CON |
522 |
|
Datasheet |
- | Module | Bag | Active | - | - | Magnet | Connector | 3 kHz | 10V ~ 30V | - | - | -25°C ~ 85°C | - | - |
|
BMF00ERDIMENSION=24 X 3 X 3.75 MM, CONN |
33 |
|
Datasheet |
- | Module | Bag | Active | - | - | Magnet | Connector | 3 kHz | 10V ~ 30V | - | - | -25°C ~ 85°C | - | - |
|
BMF00H5DIMENSION=23.5 X 5 X 5.5 MM, CON |
108 |
|
Datasheet |
- | Module | Bag | Active | - | - | Magnet | Connector | 3 kHz | 10V ~ 30V | - | - | -25°C ~ 85°C | - | - |
|
BMF00CHDIMENSION=23.5 X 5 X 5.5 MM, CAB |
71 |
|
Datasheet |
- | Module | Bag | Active | - | - | Magnet | Cable | 3 kHz | 10V ~ 30V | - | - | -25°C ~ 85°C | - | - |
|

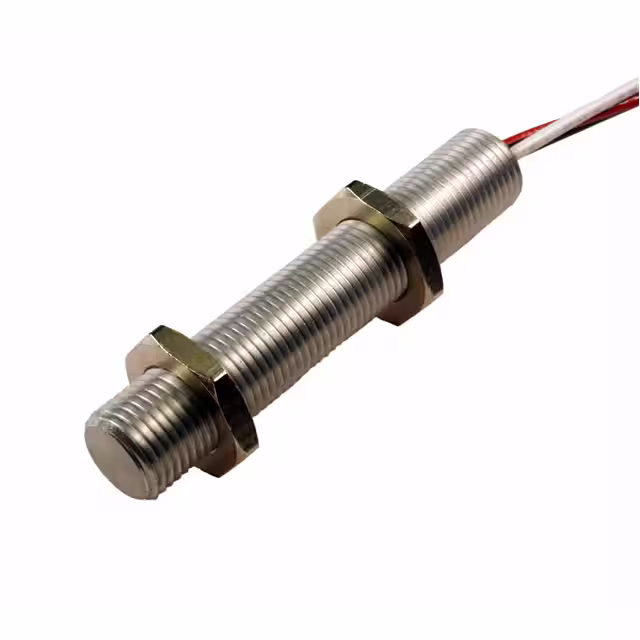

2501-1710-100REED SENSOR SPDT 100W 120V 3A |
250 |
|
Datasheet |
2501 | Module, Wire Leads | Retail Package | Active | Reed Switch | SPDT | Magnet | Wire Leads | - | 85VAC, 120VDC | 50 ~ 65AT | - | -40°C ~ 105°C | - | - |
|
BMF00A4DIMENSION=16.8 X 2.9 X 4.5 MM, C |
604 |
|
Datasheet |
- | Module | Bag | Active | - | - | Magnet | Connector | 7 kHz | 10V ~ 30V | - | - | -25°C ~ 85°C | - | - |
|
BMF00C9DIMENSION=23.5 X 5 X 5.5 MM, CON |
904 |
|
Datasheet |
- | Module | Bag | Active | - | - | Magnet | Connector | 3 kHz | 10V ~ 30V | - | - | -25°C ~ 85°C | - | - |
|
2501-1710-400REED SENSOR SET SPDT 100W 120V 3 |
250 |
|
Datasheet |
2501 | Module, Wire Leads | Retail Package | Active | Reed Switch | SPDT | Magnet | Wire Leads | - | - | 51 ~ 65AT | - | -40°C ~ 105°C | - | - |
|
BMF0070DIMENSION=29 X 6.2 X 4.4 MM, CON |
101 |
|
Datasheet |
- | Module | Bag | Active | - | - | Magnet | Connector | 10 kHz | 10V ~ 30V | - | - | -25°C ~ 85°C | - | - |
