Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
956-4107SWITCH KEYLOCK 4POS 5A 12V |
0 |
|
Datasheet |
956 | Bulk | Active | - | 4 | On-Off-On-Mom | Not Specified | 5A (DC) | - | 12 V | Flat Key | 2 only | - | Bronze | - | Panel Mount | Screw Terminal | - | - | - |
|
|
956-4307SWITCH KEYLOCK 4POS 5A 12V |
0 |
|
Datasheet |
956 | Bulk | Obsolete | - | 4 | On-Off-On-Mom | Not Specified | 5A (DC) | - | 12 V | Flat Key | 2 only | - | Bronze | - | Panel Mount | Screw Terminal | - | - | - |
|
PKS10000SWITCH KEYLOCK 2POS SPDT 4A 125V |
0 |
|
Datasheet |
PKS1 | Box | Obsolete | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | - | - | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
32326557-001-31SWITCH KEYLOCK ASSEMBLY |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
95534SWITCH KEYLOCK 3POS 5A 12V |
0 |
|
- |
95 | Bulk | Obsolete | - | 3 | Off-On-Mom | Not Specified | 5A (DC) | - | 12 V | Flat Key | 1 only | - | Bronze | - | Panel Mount | Screw Terminal | - | - | - |
L-10 SERIES.jpg)
|
A22K-2AL-10SWITCH KEYLCK 2POS SPST 10A 110V |
0 |
|
Datasheet |
A22K | Bulk | Obsolete | SPST-NO | 2 | Off-Mom | Not Specified | 10A (AC) | 110 V | - | Flat Key | Left | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65, Oil-Resistant | -20°C ~ 70°C |
|
|
A22K-2ML-10SWITCH KEYLCK 2POS SPST 10A 110V |
0 |
|
Datasheet |
A22K | Bulk | Obsolete | SPST-NO | 2 | Off-On | Not Specified | 10A (AC) | 110 V | - | Flat Key | Left | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65, Oil-Resistant | -20°C ~ 70°C |
|

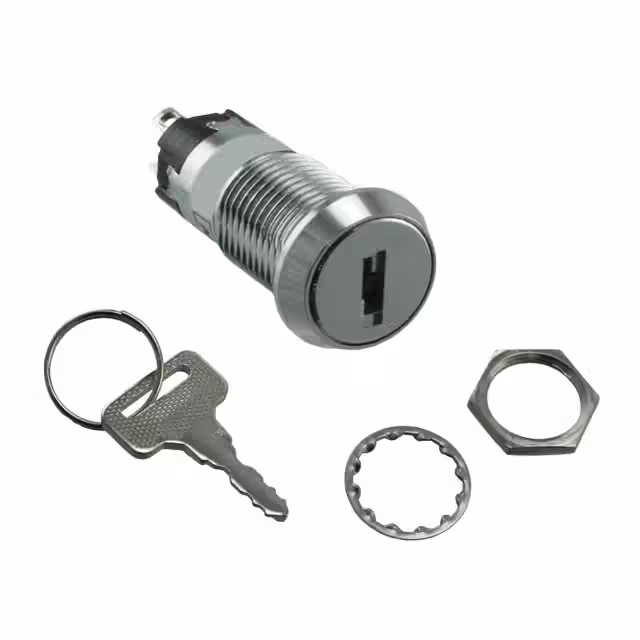

SK13EDW01-009SWITCH KEYLOCK 3POS SPDT 3A 125V |
0 |
|
Datasheet |
SK | Box | Last Time Buy | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 125 V | - | Flat Key | 2 only | 45° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 12.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
32310053-001-02SWITCH KEYLOCK ASSEMBLY 4POS |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
956-3125SWITCH KEYLOCK 3POS 5A 12V |
0 |
|
Datasheet |
956 | Bulk | Obsolete | - | 3 | Off-On-Mom | Not Specified | 5A (DC) | - | 12 V | Flat Key | 1 only | - | Bronze | - | Panel Mount | Screw Terminal | - | - | - |
|
|
9513SWITCH KEYLOCK 3POS 5A 12V |
0 |
|
Datasheet |
95 | Bulk | Active | - | 3 | Off-On-Mom | Not Specified | 5A (DC) | - | 12 V | Flat Key | 1 only | - | Bronze | - | Panel Mount | Screw Terminal | - | - | - |
|
|
32330886-001-02SWITCH KEYLOCK ASSEMBLY |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
95597SWITCH KEYLOCK 2POS 50A 14V |
0 |
|
- |
95 | Bulk | Active | - | 2 | Off-On | Not Specified | 50A (DC) | - | 14 V | Flat Key | 1 only | - | Copper | - | Panel Mount | Screw Terminal | - | - | - |
|
95535SWITCH KEYLOCK 4POS 5A 12V |
0 |
|
- |
95 | Bulk | Obsolete | - | 4 | On-Off-On-Mom | Not Specified | 5A (DC) | - | 12 V | Flat Key | 2 only | - | - | - | Panel Mount | Screw Terminal | - | - | - |
|
|
SKT131AEL01SWITCH KEYLOCK 2POS SPDT 3A 125V |
0 |
|
- |
SKT | Bulk | Obsolete | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 80° | - | Silver | Panel Mount | Solder Lug | Circular - 16.20mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
ASW0302KTHSWITCH KEYLOCK 3POS |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LA1K-2C1VBSWITCH KEY 2POS SPDT 100MA 125V |
0 |
|
- |
L6 | Bulk | Active | SPDT | 2 | On-On | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | Right | 90° | Silver (Ag) | Gold | Panel Mount | PC Pin | Circular - 16.20mm Dia | - | -20°C ~ 55°C |
|
|
LA1K-2C5BSWITCH KEYLOCK 2POS SPDT 3A 125V |
0 |
|
- |
L6 | Bulk | Active | SPDT | 2 | On-On | Not Specified | 3A (AC), 2A (DC) | 125 V | 30 V | Flat Key | Right | 90° | Silver (Ag) | Silver | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | - | -20°C ~ 55°C |
|
|
LA1K-2C5ASWITCH KEYLOCK 2POS SPDT 3A 125V |
0 |
|
- |
L6 | Bulk | Active | SPDT | 2 | On-On | Not Specified | 3A (AC), 2A (DC) | 125 V | 30 V | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | - | -20°C ~ 55°C |
|
|
LA1K-2C1VASWITCH KEY 2POS SPDT 100MA 125V |
0 |
|
- |
L6 | Bulk | Active | SPDT | 2 | On-On | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | All | 90° | Silver (Ag) | Gold | Panel Mount | PC Pin | Circular - 16.20mm Dia | - | -20°C ~ 55°C |
