Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CKL13ETW01-001SWITCH KEYLOCK 3POS SPDT 3A 250V |
15 |
|
Datasheet |
CK | Box | Active | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 2 only | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|

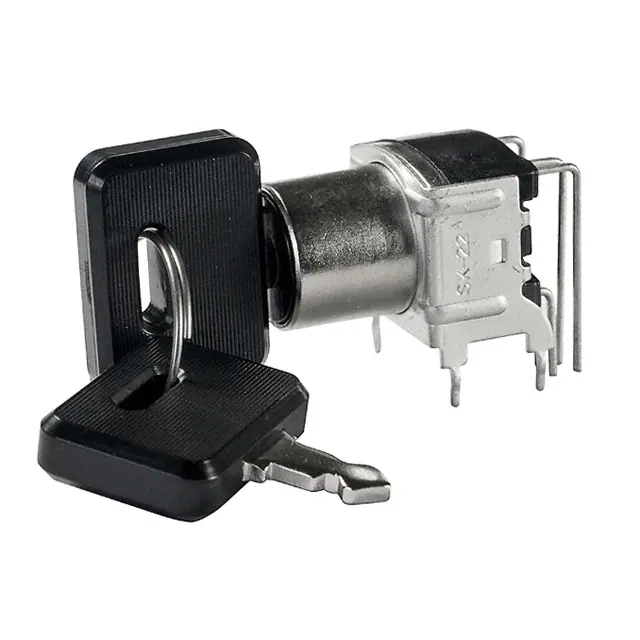

SK22AG30SWITCH KEYLK 2POS DPDT 0.4VA 28V |
50 |
|
Datasheet |
SK | Box | Active | DPDT | 2 | On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flat Key | All | 90° | Beryllium Copper | Gold | Through Hole, Right Angle | PC Pin | - | Process Sealed | -25°C ~ 70°C |
|
|
CKL13ETW01-006SWITCH KEYLOCK 3POS SPDT 3A 250V |
7 |
|
Datasheet |
CK | Box | Active | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 2 only | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
LK5BNB126N3SWITCH KEYLOCK 2POS DPDT 4A 125V |
56 |
|
Datasheet |
LK | Tray | Active | DPDT | 2 | On-Mom | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
|
LK5FNB126N3SWITCH KEYLOCK 3POS DP3T 4A 125V |
76 |
|
Datasheet |
LK | Tray | Active | DP3T | 3 | Mom-On-Mom | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|

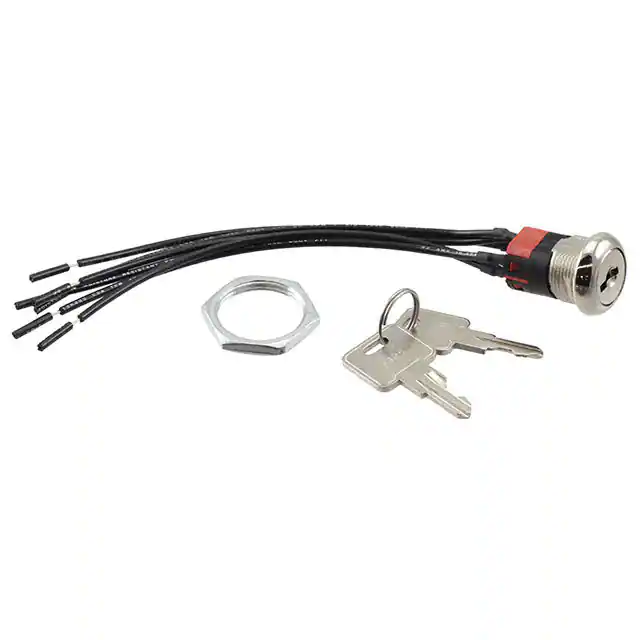

Y2011U2C2WCNQSWITCH KEY 2POS DPDT 4A 125V 4PC |
24 |
|
Datasheet |
Y | Bulk | Active | DPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | Wire Leads | Circular - 19.30mm Dia | - | - |
|

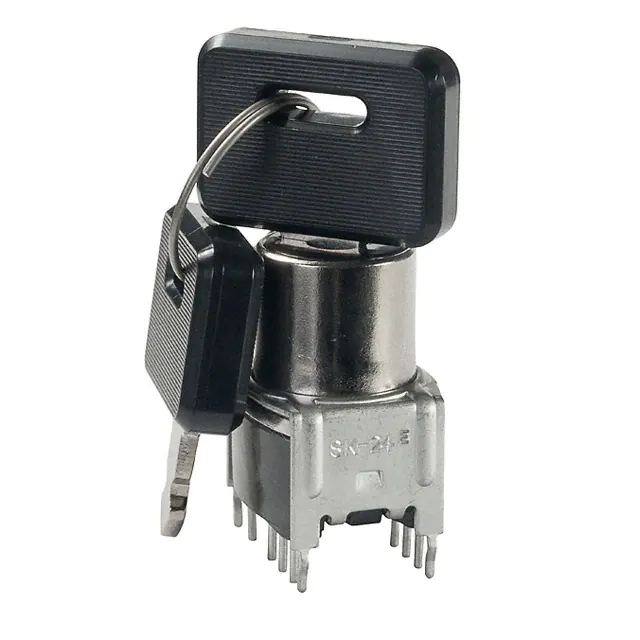

SK24EG13SWITCH KEYLK 3POS DP3T 0.4VA 28V |
70 |
|
Datasheet |
SK | Bulk | Active | DP3T | 3 | On-On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flat Key | 2 only | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | Process Sealed | -25°C ~ 70°C |
|
95060-01SWITCH KEYLOCK 4POS 5A 24V |
34 |
|
Datasheet |
95060 | Bulk | Active | - | 4 | On-Off-On-On | Not Specified | 5A (DC) | - | 24 V | Flat Key | 2 only | 30° | - | - | Panel Mount | Connector | Circular - 21.84mm Dia | - | - |
|

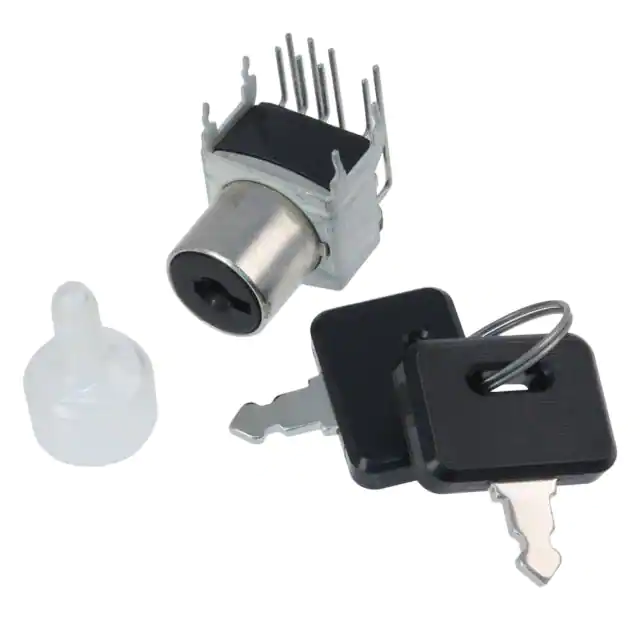

SK24DG30SWITCH KEYLK 3POS DP3T 0.4VA 28V |
5 |
|
Datasheet |
SK | Box | Active | DP3T | 3 | On-On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flat Key | All | 45° | Beryllium Copper | Gold | Through Hole, Right Angle | PC Pin | - | Process Sealed | -25°C ~ 70°C |
|
A22NK-3MM-01BA-G101SWITCH KEYLCK 3POS DPST 10A 120V |
37 |
|
Datasheet |
A22NK | Bulk | Active | DPST-NO | 3 | On-Off-Off, Off-Off-On | Not Specified | 10A (AC), 8A (DC) | 120 V | 24 V | Flat Key | Left | 45° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66 | -25°C ~ 70°C |
|
95060-03SWITCH KEYLOCK 3POS 5A 24V |
59 |
|
Datasheet |
95060 | Bulk | Active | - | 3 | Off-On-On | Not Specified | 5A (DC) | - | 24 V | Flat Key | 1 only | 30° | - | - | Panel Mount | Connector | Circular - 21.84mm Dia | - | - |
|
|
95060-23SWITCH KEYLOCK 4POS 5A 24V |
56 |
|
Datasheet |
95060 | Bulk | Active | - | 4 | On-Off-On-On | Not Specified | 5A (DC) | - | 24 V | Flat Key | 2 only | 30° | - | - | Panel Mount | Connector | Circular - 21.84mm Dia | - | - |
|
84825-02SWITCH KEYLOCK 2POS SPST 20A 12V |
62 |
|
Datasheet |
- | Bulk | Active | SPST | 2 | Off-On | Not Specified | 20A (DC) | - | 12 V | Flat Key | Center | 45° | Brass | Tin | Panel Mount | Connector | Circular - 22.35mm Dia | - | -40°C ~ 85°C |
|
SK12BDW01-007SWITCH KEYLOCK 2POS SPDT 3A 125V |
0 |
|
Datasheet |
SK | Box | Last Time Buy | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 125 V | - | Flat Key | 1 only | 90° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 12.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
SK13EDW01-007SWITCH KEYLOCK 3POS SPDT 3A 125V |
47 |
|
Datasheet |
SK | Box | Last Time Buy | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 125 V | - | Flat Key | 2 only | 45° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 12.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
SK13EDW01-010SWITCH KEYLOCK 3POS SPDT 3A 125V |
36 |
|
Datasheet |
SK | Box | Last Time Buy | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 125 V | - | Flat Key | 2 only | 45° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 12.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
95060-29SWITCH KEYLOCKPOS 5A 24V |
40 |
|
Datasheet |
95060 | Bulk | Active | - | - | - | Not Specified | 5A (DC) | - | 24 V | Flat Key | - | 30° | - | - | Panel Mount | Connector | Circular - 21.84mm Dia | - | - |
|
95060-24SWITCH KEYLOCK 4POS 10A 12V |
14 |
|
Datasheet |
95060 | Box | Active | - | 4 | On-Off-On-Mom | Not Specified | 10A (DC) | - | 12 V | Flat Key | Center | 30° | Brass | - | Panel Mount | Connector | Circular - 21.84mm Dia | - | - |
|

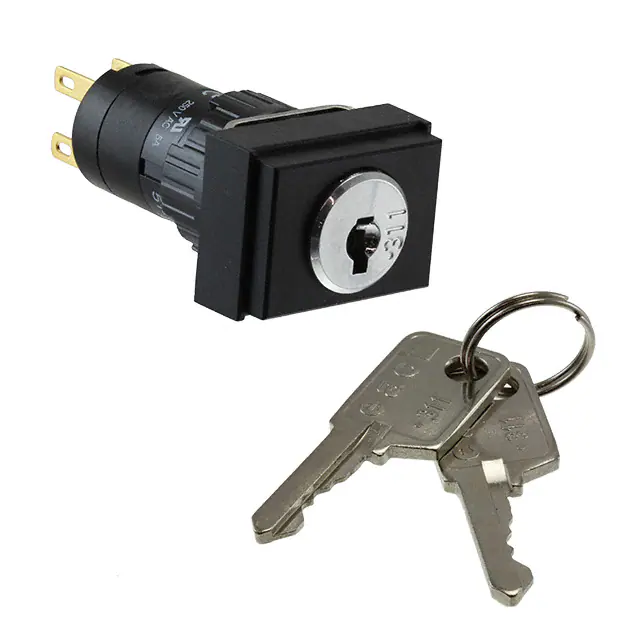

51-195.022DSWITCH KEYLOCK 2POS DPST 5A 250V |
2 |
|
Datasheet |
51 | Bulk | Active | DPST-NO/NC | 2 | On-Off, Off-On | Not Specified | 5A (AC) | 250 V | - | Flat Key | All | 90° | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65 | -25°C ~ 55°C |
|
1.15.108.851/0000SWITCH KEYLOCK 2POS DPST 4A 250V |
3 |
|
Datasheet |
LUMOTAST 75 | Bulk | Active | DPST-NO/NC | 2 | On-Off, Off-On | Not Specified | 4A (AC), 200mA (DC) | 250 V | 230 V | Flat Key | Center | 90° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 16.20mm Dia | IP40 | -25°C ~ 70°C |
