Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
71L30-03-1-03NSWITCH KEY 3POS SP3T 250MA 115V Grayhill Inc. |
0 |
|
Datasheet |
71L | Bulk | Active | SP3T | 3 | On-On-On | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flat Key | 1 and 180° | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Circular - 19.05mm Dia | - | - |
|
|
71L36-03-1-03SSWITCH KEY 3POS SP3T 250MA 115V Grayhill Inc. |
0 |
|
Datasheet |
71L | Bulk | Active | SP3T | 3 | On-On-On | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flat Key | All | 36° | Silver Alloy | - | Panel Mount | Solder Lug | Circular - 19.05mm Dia | - | - |
|
|
71L36-03-1-06NSWITCH KEY 6POS SP6T 250MA 115V Grayhill Inc. |
0 |
|
Datasheet |
71L | Bulk | Active | SP6T | 6 | On-On-On-On-On-On | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flat Key | All | 36° | Silver Alloy | - | Panel Mount | Solder Lug | Circular - 19.05mm Dia | - | - |
|

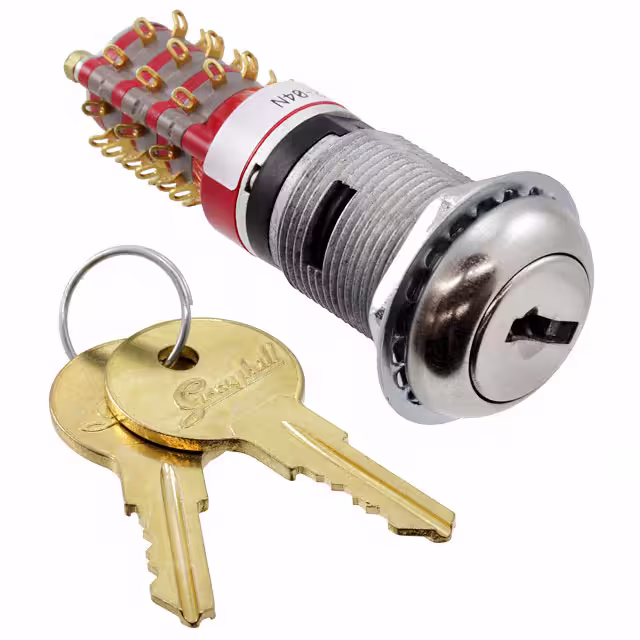

71L36-03-2-04NSWITCH KEY 4POS DP4T 250MA 115V Grayhill Inc. |
0 |
|
Datasheet |
71L | Bulk | Active | DP4T | 4 | On-On-On-On | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flat Key | All | 36° | Silver Alloy | - | Panel Mount | Solder Lug | Circular - 19.05mm Dia | - | - |
|
|
71L36-03-2-02NSWITCH KEY 2POS DPDT 250MA 115V Grayhill Inc. |
0 |
|
Datasheet |
71L | Bulk | Active | DPDT | 2 | On-On | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flat Key | All | 36° | Silver Alloy | - | Panel Mount | Solder Lug | Circular - 19.05mm Dia | - | - |
|
|
71L36-03-2-03NSWITCH KEY 3POS DP3T 250MA 115V Grayhill Inc. |
0 |
|
Datasheet |
71L | Bulk | Active | DP3T | 3 | On-On-On | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flat Key | All | 36° | Silver Alloy | - | Panel Mount | Solder Lug | Circular - 19.05mm Dia | - | - |
|
|
71L30-02-4-02NSWITCH KEY 2POS 4PDT 250MA 115V Grayhill Inc. |
0 |
|
Datasheet |
71L | Bulk | Active | 4PDT | 2 | On-On | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flat Key | 1 and 180° | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Circular - 19.05mm Dia | - | - |
|
|
71L30-04-1-06NSWITCH KEY 6POS SP6T 250MA 115V Grayhill Inc. |
0 |
|
Datasheet |
71L | Bulk | Active | SP6T | 6 | On-On-On-On-On-On | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flat Key | 1 and 180° | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Circular - 19.05mm Dia | - | - |
|
|
71J36-03-2-02SSWITCH KEY 2POS DPDT 250MA 115V Grayhill Inc. |
0 |
|
Datasheet |
71J | Bulk | Active | DPDT | 2 | On-On | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flat Key | All | 36° | Silver Alloy | - | Panel Mount | Solder Lug | Circular - 19.05mm Dia | Antistatic | - |
|
|
71J36-03-2-04NSWITCH KEYLOCKPOS 250MA 115V Grayhill Inc. |
0 |
|
- |
71 | Bulk | Active | - | - | - | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Round (4mm Dia) | - | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | - | - |
