Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS9402-V-E3-AXOPTOISO 5KV 1CH GATE DVR 16SSOP CEL |
0 |
|
- |
- | 16-SOIC (0.295", 7.50mm Width) | Strip | Discontinued at Digi-Key | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 200ns, 200ns | 100ns | 50ns, 50ns | 2A, 2A | 2.5A | 1.56V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 16-SSOP | CSA, UL, VDE |
|
PS9905-Y-AXOPTOISO 7.5KV 1CH GT DVR 8LSDIP CEL |
0 |
|
Datasheet |
- | 8-SOIC (0.543", 13.80mm Width) | Strip | Discontinued at Digi-Key | Optical Coupling | 1 | 7500Vrms | 25kV/µs | 150ns, 150ns | 75ns | 50ns, 50ns | 2A, 2A | 2.5A | 1.56V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 8-LSDIP | CSA, SEMKO, UL |
|

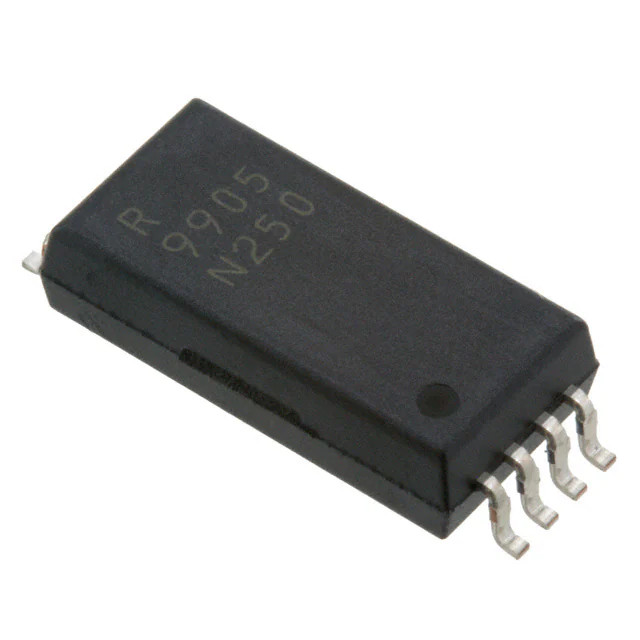

PS9905-Y-V-AXOPTOISO 7.5KV 1CH GT DVR 8LSDIP CEL |
0 |
|
Datasheet |
- | 8-SOIC (0.543", 13.80mm Width) | Strip | Discontinued at Digi-Key | Optical Coupling | 1 | 7500Vrms | 25kV/µs | 150ns, 150ns | 75ns | 50ns, 50ns | 2A, 2A | 2.5A | 1.56V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 8-LSDIP | CSA, SEMKO, UL, VDE |
|
|
PS9552L2-AXOPTOISO 5KV 1CH GATE DVR 8SMD GW CEL |
0 |
|
Datasheet |
NEPOC | 8-SMD, Gull Wing | Tube | Obsolete | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.65V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD Gull Wing | BSI, CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
|
PS9552L3-AXOPTOISO 5KV 1CH GATE DVR 8SMD GW CEL |
0 |
|
Datasheet |
NEPOC | 8-SMD, Gull Wing | Tube | Obsolete | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.65V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD Gull Wing | BSI, CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
|
|
PS9552-AXOPTOISO 5KV 1CH GATE DVR 8DIP CEL |
0 |
|
Datasheet |
NEPOC | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.65V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | BSI, CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
|
|
PS9553L3-E3-AXOPTOISO 5KV 1CH GATE DVR 8SMD GW CEL |
0 |
|
Datasheet |
NEPOC | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 650ns, 650ns | 500ns | 50ns, 50ns | 400mA, 400mA | 600mA | 1.56V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD Gull Wing | - |
|
PS9553-AXOPTOISO 5KV 1CH GATE DVR 8DIP CEL |
0 |
|
Datasheet |
NEPOC | 8-DIP (0.300", 7.62mm) | Strip | Obsolete | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 650ns, 650ns | 500ns | 50ns, 50ns | 400mA, 400mA | 600mA | 1.56V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | - |
|
PS9401-2-AXOPTOISO 5KV 2CH GATE DVR 16SSOP CEL |
0 |
|
Datasheet |
NEPOC | 16-SOIC (0.173", 4.40mm Width) | Bulk | Obsolete | Optical Coupling | 2 | 5000Vrms | 15kV/µs | 700ns, 700ns | 500ns | 50ns, 50ns | 400mA, 400mA | 600mA | 1.56V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 16-SSOP | - |
|
|
PS9552-V-AXOPTOISO 5KV 1CH GATE DVR 8DIP CEL |
0 |
|
Datasheet |
NEPOC | 8-DIP (0.300", 7.62mm) | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.65V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | BSI, CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE |
