Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADUM3221ARZDGTL ISO 2.5KV 2CH GT DVR 8SOIC Analog Devices Inc. |
3,288 |
|
Datasheet |
iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | 2 | 2500Vrms | 25kV/µs | 60ns, 60ns | - | 20ns, 20ns | - | 4A | - | - | 4.5V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CSA, UR, VDE |
|
|
ADUM3221ARZ-RL7DGTL ISO 2.5KV 2CH GT DVR 8SOIC Analog Devices Inc. |
2,540 |
|
Datasheet |
iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 2500Vrms | 25kV/µs | 60ns, 60ns | - | 20ns, 20ns | - | 4A | - | - | 4.5V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CSA, UR, VDE |
|
|
ADUM3220ARZ-RL7DGTL ISO 2.5KV 2CH GT DVR 8SOIC Analog Devices Inc. |
1,671 |
|
Datasheet |
iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 2500Vrms | 25kV/µs | 60ns, 60ns | - | 20ns, 20ns | - | 4A | - | - | 4.5V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CSA, UR, VDE |
|
ADUM4120ARIZ-RLDGTL ISO 5KV 1CH GATE DRVR 6SOIC Analog Devices Inc. |
717 |
|
Datasheet |
iCoupler® | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5000Vrms | 150kV/µs | 69ns, 79ns | 16.5ns | 18ns, 18ns | - | 2.3A | - | - | 4.5V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | 6-SOIC-IC | CSA, UR, VDE |
|

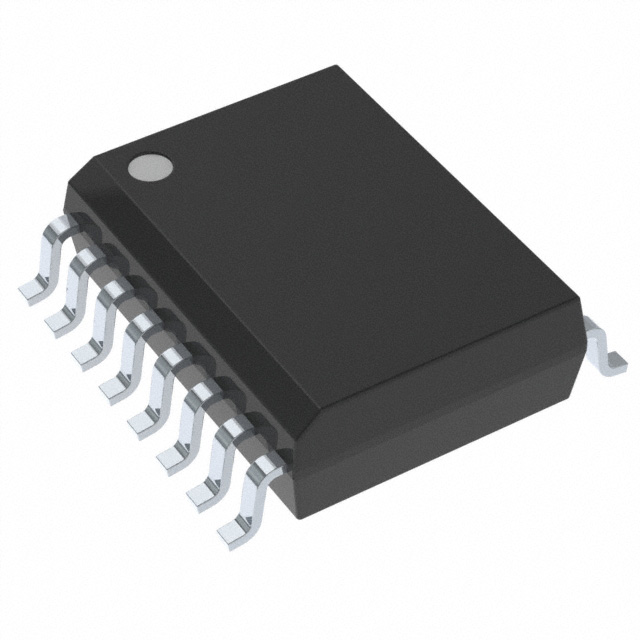

ADUM4135BRWZDGTL ISO 5KV 1CH GATE DVR 16SOIC Analog Devices Inc. |
6,336 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 1 | 5000Vrms | 100kV/µs | 66ns, 66ns | - | 16ns, 16ns | - | 4A | - | - | 12V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | - |
|
ADUM3223BRZDGTL ISO 3KV 2CH GATE DVR 16SOIC Analog Devices Inc. |
1,515 |
|
Datasheet |
iCoupler® | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | 2 | 3000Vrms | 50kV/µs | 54ns, 54ns | - | 12ns, 12ns | - | 4A | - | - | 7.5V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CSA, UR, VDE |
|
|
ADUM3223ARZDGTL ISO 3KV 2CH GATE DVR 16SOIC Analog Devices Inc. |
1,004 |
|
Datasheet |
iCoupler® | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | 2 | 3000Vrms | 50kV/µs | 59ns, 59ns | - | 12ns, 12ns | - | 4A | - | - | 4.5V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CSA, UR, VDE |
|
|
ADUM3123ARZDGTL ISO 3KV 1CH GATE DVR 8SOIC Analog Devices Inc. |
0 |
|
Datasheet |
iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | 1 | 3000Vrms | 50kV/µs | 68ns, 68ns | - | 12ns, 12ns | - | 4A | - | - | 4.5V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CSA, UR, VDE |
|
|
ADUM4223ARWZDGTL ISO 5KV 2CH GATE DVR 16SOIC Analog Devices Inc. |
315 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 2 | 5000Vrms | 50kV/µs | 59ns, 59ns | - | 12ns, 12ns | - | 4A | - | - | 4.5V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CSA, UR, VDE |
|
|
ADUM4223BRWZDGTL ISO 5KV 2CH GATE DVR 16SOIC Analog Devices Inc. |
104 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 2 | 5000Vrms | 50kV/µs | 54ns, 54ns | - | 12ns, 12ns | - | 4A | - | - | 7.5V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CSA, UR, VDE |
