Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

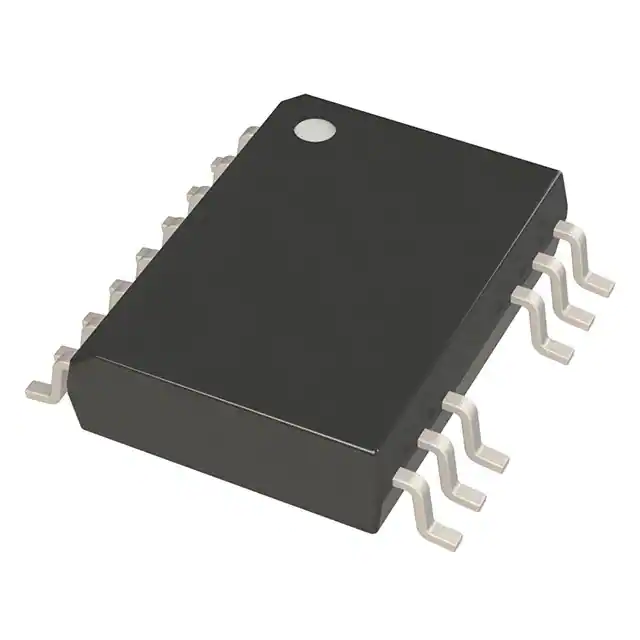

UCC21540AQDWKRQ1DGTL ISO 5.7KV 2CH GT DVR 14SOIC |
4,807 |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5700Vrms | 100V/ns | 40ns, 40ns | 5.5ns | 5ns, 6ns | 4A, 6A | 4A, 6A | - | - | 6V ~ 18V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, UL, VDE |
|
ACPL-W345-000EOPTOISO 5KV 1CH GATE DRIVER 6SO |
1,990 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 120ns, 120ns | 50ns | 8ns, 8ns | 800mA, 800mA | 1A | 1.55V | 25 mA | 10V ~ 20V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | CSA, UR |
.jpg)
|
HCNW3120-000EOPTOISO 5KV 1CH GATE DVR 8DIP |
4,593 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | CSA, IEC/EN/DIN, UR |
|
HCPL-3180-500EOPTOISO 3.75KV 1CH GT DVR 8DIP |
2,896 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 200ns, 200ns | 65ns | 25ns, 25ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 10V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing | CSA, UR |
|
ACPL-31JT-000EOPTOISO 5KV 1CH GATE DVR 16SO |
590 |
|
Datasheet |
R²Coupler™ | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 250ns, 250ns | 100ns | 60ns, 50ns | 750mA, 1A | 2.5A | 1.55V | 20 mA | 12V ~ 20V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|
SI8285BC-ISRDGT ISO 3.75KV 1CH GT DVR 16SOIC |
1,175 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3750Vrms | 125kV/µs | 50ns, 50ns | 5ns | 5.5ns, 8.5ns | 2A, 4.1A | 4A | - | - | 10V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
UCC21520QDWRQ1DGTL ISO 5.7KV 2CH GT DVR 16SOIC |
2,641 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5700Vrms | 100V/ns | 30ns, 30ns | 6ns | 6ns, 7ns | 4A, 6A | - | - | - | 3V ~ 18V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
ACPL-K34T-000EOPTOISO 5KV 1CH GATE DVR 8SO |
587 |
|
Datasheet |
R²Coupler™ | 8-SOIC (0.268", 6.81mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 110ns, 110ns | 40ns | 10ns, 10ns | 2A, 2A | 2.5A | 1.5V | 20 mA | 10V ~ 20V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SO Stretched | CSA, UR |
|
1ED020I12B2XUMA1DGT ISO 4.5KV 1CH GT DVR DSO16 |
8,882 |
|
Datasheet |
EiceDRIVER™ | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 4500Vrms | - | - | - | 30ns, 50ns | 2A, 2A | - | - | - | 13V ~ 20V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-16-15 | - |
|
|
ACPL-P346-000EOPTOISO 3.75KV 1CH GATE DRVR 6SO |
4,183 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 50kV/µs | 120ns, 120ns | 50ns | 8ns, 8ns | 2A, 2A | 2.5A | 1.55V | 25 mA | 10V ~ 20V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | CSA, UR |
|
|
TPSI3050SQDWZRQ1DGTL ISO 5KV 1CH GATE DVR 8SOIC |
686 |
|
Datasheet |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 100V/ns | - | - | - | 1.5A, 3A | 1.5A, 3A | - | 37 mA | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | UL, VDE |
|
|
SI8230BD-D-ISRDGTL ISO 5KV 2CH GATE DVR 16SOIC |
9,100 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5000Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 9.4V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
HCPL-314J-000EOPTOISO 5KV 2CH GATE DVR 16SO |
2,715 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 2 | 5000Vrms | 25kV/µs | 700ns, 700ns | - | 50ns, 50ns | 500mA, - | 600mA | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|
SI8271DB-ISDGTL ISO 2.5KV 1CH GT DVR 8SOIC |
4,822 |
|
Datasheet |
Si827x | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | RF Coupling | 1 | 2500Vrms | 150kV/µs | 60ns, 60ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 9.6V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UR, VDE |
|
|
ACPL-K33T-000EOPTOISO 5KV 1CH GATE DVR 8SO |
3,920 |
|
Datasheet |
R²Coupler™ | 8-SOIC (0.268", 6.81mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 120ns, 120ns | 40ns | 15ns, 15ns | 2A, 2A | 2.5A | 1.5V | 20 mA | 15V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SO Stretched | CSA, UR |
|
|
SI8234BB-D-ISDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
19,560 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 9.4V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI8233BB-D-ISDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
15,323 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 9.4V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
HCPL-314J-500EOPTOISO 5KV 2CH GATE DVR 16SO |
3,092 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 2 | 5000Vrms | 25kV/µs | 700ns, 700ns | - | 50ns, 50ns | 500mA, - | 600mA | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|
|
NCP51561BADWR2GDGTL ISO 5KV 2CH GATE DVR 16SOIC |
1,671 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5000Vrms | 200V/ns | 58ns, 58ns | 5ns | 11ns, 10ns | 9A, 4.5A | 4.5A, 9A | - | - | 18.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, UL, VDE |
|
|
ADUM3223BRZDGTL ISO 3KV 2CH GATE DVR 16SOIC |
1,515 |
|
Datasheet |
iCoupler® | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | 2 | 3000Vrms | 50kV/µs | 54ns, 54ns | - | 12ns, 12ns | - | 4A | - | - | 7.5V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CSA, UR, VDE |
