Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Current Rating (Amps) | Voltage Rating | Voltage - Supply | Holding Force | Actuator Type | Termination Style | Features | Must Operate | Must Release | Conduit Thread Size | Operating Temperature | Ingress Protection | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3SE22576XX40INTERLOCK SWITCH,TOP & SIDE ENTR |
0 |
|
Datasheet |
SIRUS 3SE22 | Box | Active | Non-Locking | SPST-NO | 4A (AC/DC) | 230VAC, 24VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | M20 x 1.5 | -30°C ~ 80°C | IP67 - Dust Tight, Waterproof | CCC, CE, EAC, UKCA, UL |
|
XCSDMR790L01M12INTERLOCK MAGNETIC DPST |
0 |
|
Datasheet |
XCSDMR | Box | Active | Magnetic | DPST-NC | 100mA (DC) | 24VDC | - | - | - | Cable with Connector (M12) | - | 8mm | 20mm | - | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|

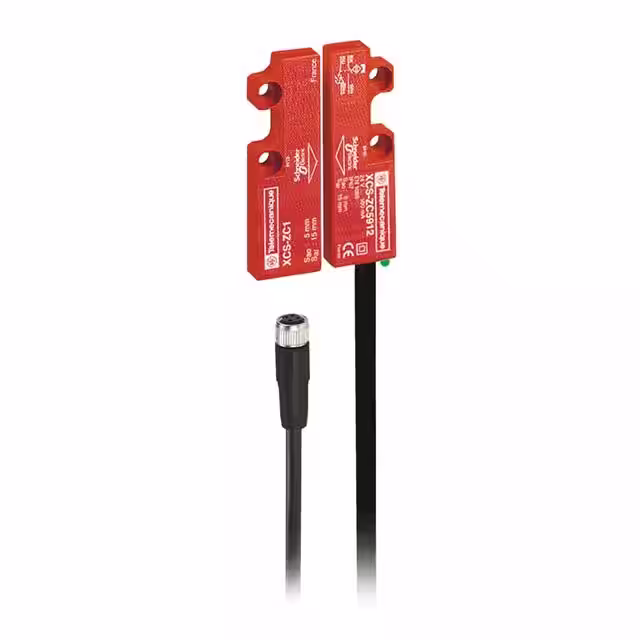

XCSDMC591L01M8INTERLOCK MAGNETIC DPST |
0 |
|
Datasheet |
XCSDMC | Box | Active | Magnetic | DPST-NO/NC | 100mA (DC) | 24VDC | - | - | Non-Contact | Cable with Connector (M8) | - | 5mm | 15mm | - | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSDMC59110INTERLOCK MAGNETIC DPST |
0 |
|
Datasheet |
XCSDMC | Box | Active | Magnetic | DPST-NO/NC | 100mA (DC) | 24VDC | - | - | Non-Contact | Cable Leads | - | 5mm | 15mm | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CSA, UL |
|
|
HS7A-DMC79110INTERLOCK SWITCH SAFETY NON-CONT |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
GKMB13INTERLOCK NON-LOCKING DPST |
0 |
|
Datasheet |
GKM | Bulk | Active | Non-Locking | DPST-NO/NC | 3A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Cable Leads | Cable Length 1m | - | - | - | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
SI-LM40MKVDINTERLOCK NON-LOCKING DPST |
0 |
|
Datasheet |
SI-LM40 | Bulk | Obsolete | Non-Locking | DPST-NO/NC | 10A (AC), 6A (DC) | 110VAC, 24VDC | - | 2kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 | -30°C ~ 80°C | IP65 - Dust Tight, Water Resistant | CE, CSA, UL |
|
|
HS7A-DMP5015INTERLOCK SWITCH SAFETY NON-CONT |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HS7A-DMP7015INTERLOCK SWITCH SAFETY NON-CONT |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3SE52321QV40SAFETY POS. SWITCH W. SEPARATE |
0 |
|
Datasheet |
3SE5 | Box | Active | Non-Locking | 3PST-2NC/1NO | 3A (DC) | 24VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | M20 x 1.5 | -25°C ~ 60°C | IP65 - Dust Tight, Water Resistant | CCC, CE, CSA, EAC, UKCA, UL |
|
|
3SE52340RV401AC4INTERLOCK SW,TOP&SIDE ENTRY,1NO+ |
0 |
|
Datasheet |
3SE5 | Box | Active | Non-Locking | DPST-NO/NC | 4A (AC), 3A (DC) | 125VAC, 24VDC | - | - | Panel Disconnect | Connector (M12) | - | - | - | M12 | -25°C ~ 85°C | IP65 - Dust Tight, Water Resistant | CCC, CE, CSA, EAC, UKCA, UL |
|
|
3SE52323RV40INTERLOCK SW,TOP&SIDE ENTRY,1NO+ |
0 |
|
Datasheet |
3SE5 | Box | Active | Non-Locking | DPST-NO/NC | 4A (AC) | 230VAC | - | - | Panel Disconnect | Screw Terminal | - | - | - | M20 x 1.5 | -25°C ~ 60°C | IP65 - Dust Tight, Water Resistant | CCC, CE, CSA, EAC, UKCA, UL |
|
|
XCSDMP591L01M12INTERLOCK MAGNETIC DPST |
0 |
|
Datasheet |
XCSDMP | Box | Active | Magnetic | DPST-NO/NC | 100mA (DC) | 100VDC | - | - | Non-Contact | Cable with Connector (M12) | - | 8mm | 20mm | - | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
|
XCSDMP791L01M12INTERLOCK MAGNETIC DPST |
0 |
|
Datasheet |
XCSDMP | Box | Active | Magnetic | DPST-NC | 100mA (DC) | 100VDC | - | - | Non-Contact | Cable with Connector (M12) | - | 8mm | 20mm | - | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
|
3SE22576XXINTERLOCK SWITCH,TOP & SIDE ENTR |
0 |
|
Datasheet |
SIRUS 3SE22 | Box | Active | Non-Locking | 3PST-NO | 4A (AC/DC) | 230VAC, 24VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | M20 x 1.5 | -30°C ~ 80°C | IP67 - Dust Tight, Waterproof | CCC, EAC, UL |
|
|
SMS02LDINTERLOCK MAGNETIC DPST |
0 |
|
- |
SMS | Box | Obsolete | Magnetic | DPST-NO/NC | 100mA (AC), 250mA (DC) | - | 120VAC, 50VDC | - | Non-Contact | Wire Leads | Status Indicator | 20mm | 30mm | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | - |
|
|
XCSDMP7905INTERLOCK MAGNETIC DPST |
0 |
|
Datasheet |
XCSDMP | Box | Active | Magnetic | DPST-NC | 100mA (DC) | 100VDC | - | - | Non-Contact | Cable Leads | - | 8mm | 20mm | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CSA, UL |
|
|
1093335MAGN SAFETY SENSOR |
0 |
|
Datasheet |
RE2 | Bulk | Active | Magnetic | DPST-NO | 100mA (DC) | 30VDC | - | - | Non-Contact | Cable Leads | Status Indicator | 9mm | 22mm | - | -30°C ~ 60°C | IP67 - Dust Tight, Waterproof | CE, cULus, EAC, TUV |
|
|
XCSDMC79010EXINTERLOCK MAGNETIC DPST |
0 |
|
Datasheet |
XCSDMC | Box | Active | Magnetic | DPST-NC | 100mA (DC) | 100VDC | - | - | Non-Contact | Cable Leads | - | 5mm | 15mm | - | -25°C ~ 85°C | IP66 - Dust Tight, Waterproof | - |
|
|
XCSDMC79110INTERLOCK MAGNETIC DPST |
0 |
|
Datasheet |
XCSDMC | Box | Active | Magnetic | DPST-NC | 100mA (DC) | 100VDC | - | - | Non-Contact | Cable Leads | - | 5mm | 15mm | - | -25°C ~ 85°C | IP66 - Dust Tight, Waterproof | CSA, UL |
