Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Current Rating (Amps) | Voltage Rating | Voltage - Supply | Holding Force | Actuator Type | Termination Style | Features | Must Operate | Must Release | Conduit Thread Size | Operating Temperature | Ingress Protection | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D4SL-N3NDG-DINTERLOCK SOLENOID LOCKING 3PST |
1 |
|
Datasheet |
D4SL-N | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO x 2 | 1.5A (AC), 220mA (DC) | 120VAC, 125VDC | - | 133kgf | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cURus, TUV |
|
XCSTE5312INTERLOCK SOLENOID LOCKING DPST |
0 |
|
Datasheet |
XCSTE | Box | Active | Solenoid Locking | DPST-NO/NC | 3A (AC), 550mA (DC) | 120VAC, 125VDC | - | 51kgf | Panel Disconnect | Screw Terminal | - | - | - | M16 x 1.5 | -25°C ~ 60°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|

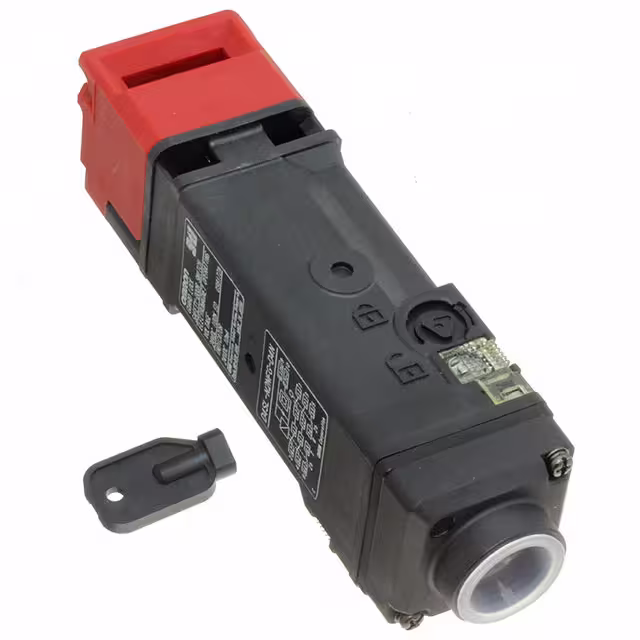

D4SL-N2NFG-D4NINTERLOCK SOLENOID LOCKING 3PST |
1 |
|
Datasheet |
D4SL-N | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO x 2 | 1.5A (AC), 220mA (DC) | 120VAC, 125VDC | 24VDC | 6kgf | Panel Disconnect | Connector | Status Indicator | - | - | G1/2 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cURus, TUV |
|

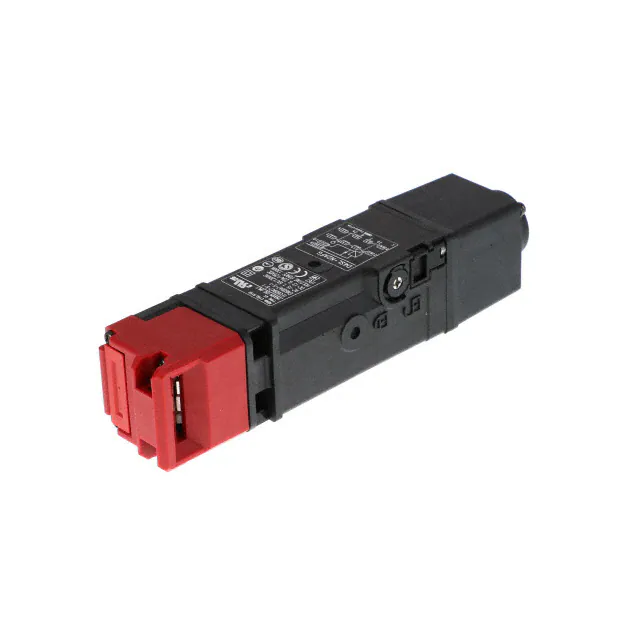

D4SL-N2AFGINTERLOCK SOLENOID LOCKING DPST |
1 |
|
Datasheet |
D4SL-N | Bulk | Active | Solenoid Locking | DPST-NO/NC (DB/DM) x 2 | 1.5A (AC), 220mA (DC) | 120VAC, 125VDC | - | 6kgf | Panel Disconnect | Screw Terminal | - | - | - | G1/2 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cURus, TUV |
|
SI-LS42DMSHINTERLOCK SOLENOID RELEASE DPST |
1 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Release | DPST-NO/NC + DPST-NC | 1A (AC) | 24VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
SI-LS42DMSGINTERLOCK SOLENOID RELEASE DPST |
1 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Release | DPST-NO/NC x 2 | 1A (AC) | 24VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
D40P-SMC-21-05INTERLOCK MAGNETIC 3PST 5M L CBL |
1 |
|
Datasheet |
D40P | Box | Active | Magnetic | 3PST-2NC/1NO | 200mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable Leads | - | 8mm | 20mm | - | -25°C ~ 105°C | IP69K - Dust Tight, High Temp Water Jets, Waterproof | CE, cULus |
|
D4NL-4FFG-B-NPTINTERLOCK SOLENOID LOCKING 3PST |
1 |
|
Datasheet |
D4NL | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO + DPST-NC | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 24VDC | 133kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | M20 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
TL4019-31101INTERLOCK SOLENOID RELEASE 4PST |
1 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Release | 4PST-2NO/2NC (DB/DM) | 4A (AC/DC) | 230VAC, 24VDC | 110VAC | 122kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 x3 | -20°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
D4NL-4EFG-B-NPTINTERLOCK SOLENOID LOCKING 3PST |
1 |
|
Datasheet |
D4NL | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO + DPST-NO/NC | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 24VDC | 133kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | M20 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
D4NL-4FFA-B-NPTINTERLOCK SOLENOID RELEASE 3PST |
1 |
|
Datasheet |
D4NL | Bulk | Active | Solenoid Release | 3PST-2NC/1NO + DPST-NC | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 24VDC | 133kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | M20 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
|
TL4019-40243INTERLOCK SOLENOID LOCKING 4PST |
1 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Locking | 4PST-3NC/1NO (DB/DM) | 4A (AC/DC) | 230VAC, 24VDC | 24VAC/DC | 122kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 x3 | -20°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
D40P-SMC-21-M12INTERLOCK MAGNETIC 3PST |
1 |
|
Datasheet |
D40P | Box | Active | Magnetic | 3PST-2NC/1NO | 200mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable with Connector (M12) | - | 8mm | 20mm | - | -25°C ~ 105°C | IP69K - Dust Tight, High Temp Water Jets, Waterproof | CE, cULus |
|
SI-LS42DMMHFINTERLOCK SOLENOID LOCKING DPST |
1 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Locking | DPST-NO/NC + DPST-NC | 1A (AC) | 24VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
SI-LS42DMMGFINTERLOCK SOLENOID LOCKING DPST |
1 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Locking | DPST-NO/NC x 2 | 1A (AC) | 24VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|

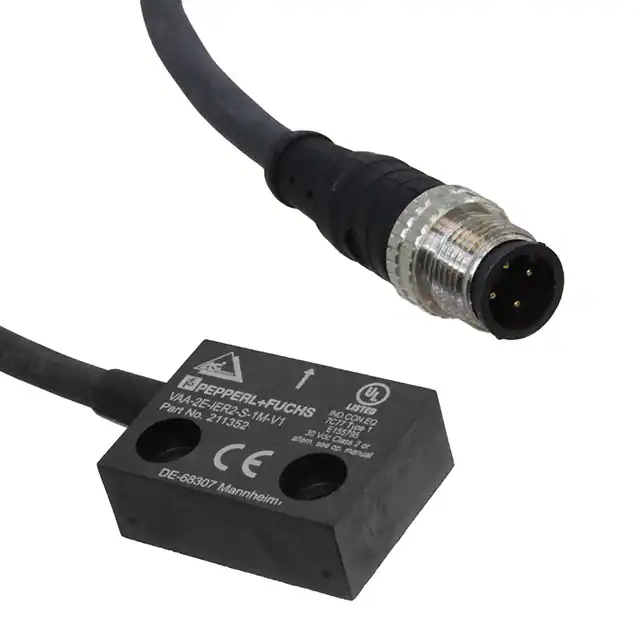

VAA-2E-IER2-S-1M-V1INTERLOCK SWITCH MAGNETIC |
1 |
|
Datasheet |
- | Box | Active | Magnetic | - | - | - | 26.5 ~ 31.6VDC | - | Non-Contact | Cable with Connector (M12) | - | - | - | - | -20°C ~ 60°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
MA-6APC4INTERLOCK MAGNETIC SPST |
1 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | SPST-NC | 2A (AC) | 230VAC | - | - | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
TL4019-40241TMINTERLOCK SOLENOID LOCKING 4PST |
1 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Locking | 4PST-2NO/2NC (DB/DM) | 4A (AC/DC) | 230VAC, 24VDC | 24VAC/DC | 122kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 x3 | -20°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
XCSTE5513INTERLOCK SOLENOID LOCKING DPST |
1 |
|
Datasheet |
XCST | Box | Active | Solenoid Locking | DPST-NO/NC | 6A (AC) | 24VAC | - | - | Panel Disconnect | Screw Terminal | - | - | - | - | -25°C ~ 60°C | IP67 - Dust Tight, Waterproof | - |
|
6020598INTERLOCK SOLENOID LOCKING 4PST |
1 |
|
Datasheet |
i10 Lock | Bulk | Active | Solenoid Locking | 4PST-NC | 4A (AC/DC) | 230VAC, 24VDC | 24VDC | 133kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 x3 | -20°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
