Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Current Rating (Amps) | Voltage Rating | Voltage - Supply | Holding Force | Actuator Type | Termination Style | Features | Must Operate | Must Release | Conduit Thread Size | Operating Temperature | Ingress Protection | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1202570012INTERLOCK RFID 8MM RA |
2 |
|
- |
120257 | Bulk | Active | RFID | - | 400mA (DC) | - | 24VDC | - | Non-Contact | Cable Leads | - | 8mm | 18mm | - | -25°C ~ 70°C | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | TUV, UL |
|
SI-RFSL-UP8INTERLOCK SW RFID UNIQUE CODE |
2 |
|
Datasheet |
SI-RF | Box | Active | RFID | - | 100mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable with Connector (M12) | Manual Reset | 10mm | 25mm | - | -25°C ~ 70°C | IP69K - Dust Tight, High Temp Water Jets, Waterproof | CE, cULus |
|
1202570013INTERLOCK RFID 8MM RA |
3 |
|
- |
120257 | Bulk | Active | RFID | - | 200mA (DC) | - | 24VDC | - | Non-Contact | Cable with Connector (M12) | - | 8mm | 18mm | - | -25°C ~ 70°C | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | TUV, UL |
|
D4GS-N1T-3INTERLOCK NON-LOCKING DPST |
4 |
|
Datasheet |
D4GS-N | Bulk | Active | Non-Locking | DPST-NO/NC | 750mA (AC) | 240VAC | - | 6kgf | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | - | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
6025074INTERLOCK NON-LOCKING 4PST |
2 |
|
Datasheet |
i110S | Bulk | Active | Non-Locking | 4PST-2NO/2NC | 3A (AC), 2A (DC) | 240VAC, 24VDC | - | 1kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 | -20°C ~ 80°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus |
|
MA-34DS11C3INTERLOCK MAGNETIC DPST |
3 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | DPST-NO/NC | 2A (AC) | 30VDC | - | - | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
XCSB803INTERLOCK SOLENOID LOCKING 3PST |
5 |
|
Datasheet |
XCSB | Box | Active | Solenoid Locking | 3PST-NC | 6A (AC), 550mA (DC) | 240VAC, 250VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
|
XCSB503INTERLOCK SOLENOID LOCKING 3PST |
5 |
|
Datasheet |
XCSB | Box | Active | Solenoid Locking | 3PST-1NC/2NO | 6A (AC), 550mA (DC) | 240VAC, 250VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
|
D4GS-N2T-5INTERLOCK NON-LOCKING DPST |
2 |
|
Datasheet |
D4GS-N | Bulk | Active | Non-Locking | DPST-NC | 750mA (AC) | 240VAC | - | 6kgf | Panel Disconnect | Cable Leads | Cable Length 5m | - | - | - | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
D4GS-N1R-5INTERLOCK NON-LOCKING DPST |
2 |
|
Datasheet |
D4GS-N | Bulk | Active | Non-Locking | DPST-NO/NC | 750mA (AC) | 240VAC | - | 6kgf | Panel Disconnect | Cable Leads | Cable Length 5m | - | - | - | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
1202570015INTERLOCK RFID 8MM RA |
13 |
|
- |
120257 | Bulk | Active | RFID | - | 200mA (DC) | - | 24VDC | - | Non-Contact | Cable with Connector (M12) | - | 8mm | 18mm | - | -25°C ~ 70°C | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | TUV, UL |
|
D4JL-4RFG-C5INTERLOCK SOLENOID LOCKING 3PST |
3 |
|
Datasheet |
D4JL | Bulk | Active | Solenoid Locking | 3PST-NC x 2 | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 24VDC | 306kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 x2 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|

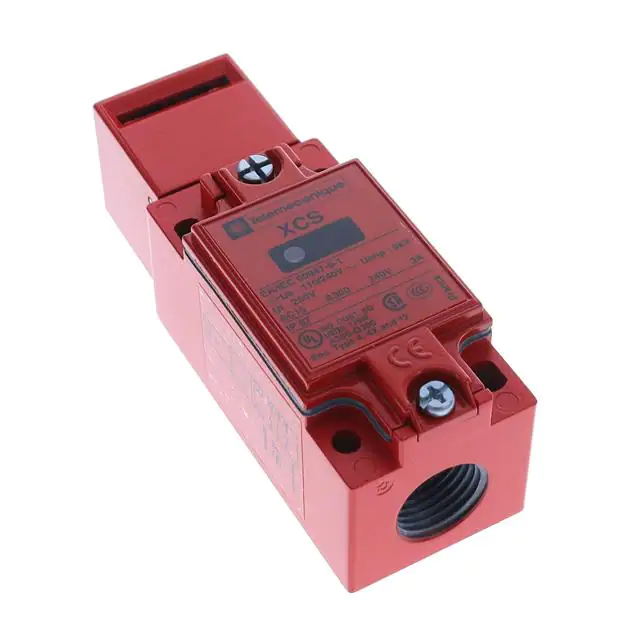

XCSA723INTERLOCK NON-LOCKING 3PST |
2 |
|
Datasheet |
XCSA | Box | Active | Non-Locking | 3PST-2NC/1NO | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
SI-LS42DMMJINTERLOCK SOLENOID LOCKING 3PST |
2 |
|
Datasheet |
SI-LS42 | Box | Active | Solenoid Locking | 3PST-NC + SPST-NC | 1A (AC) | 24VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
SG-B1-SB-G5INTERLOCK SOLENOID LOCKING DPST |
2 |
|
Datasheet |
SG-B1 | Bulk | Active | Solenoid Locking | DPST-NC | 2A (AC/DC) | 125VAC, 30VDC | 24VDC | 51kgf | Panel Disconnect | Cable Leads | Manual Override | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|
D4BL-4CRA-A-NPTINTERLOCK SOLENOID RELEASE DPST |
6 |
|
Datasheet |
D4BL | Bulk | Active | Solenoid Release | DPST-NO/NC (DB/DM) + SPST-NC (DB) | 6A (AC) | 115VAC | 24VDC | 71kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | M20 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, CSA, UL |
|
D4JL-2QFA-C5INTERLOCK SOLENOID RELEASE 3PST |
2 |
|
Datasheet |
D4JL | Bulk | Active | Solenoid Release | 3PST-2NC/1NO + 3PST-NC | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 24VDC | 306kgf | Panel Disconnect | Screw Terminal | - | - | - | G1/2 x2 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|

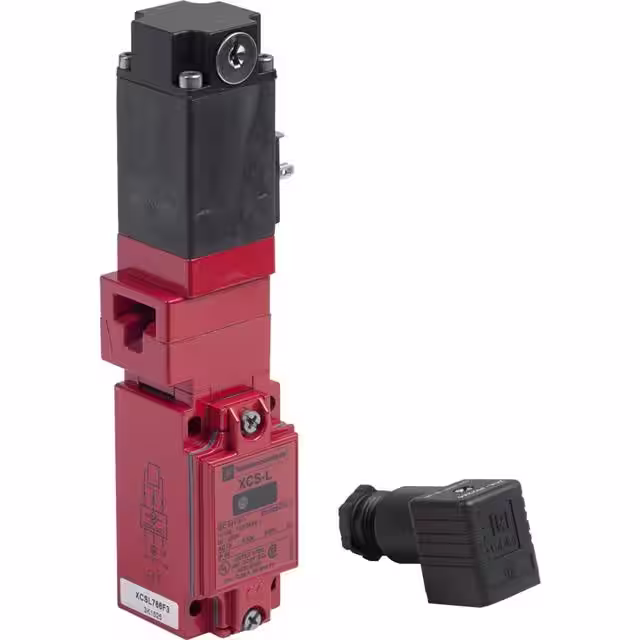

XCSL766F3INTERLOCK KEY LOCKING |
4 |
|
Datasheet |
XCSL | Box | Active | Key Locking | - | - | - | - | - | Panel Disconnect | Screw Terminal | - | - | - | - | - | - | - |
|
D4BL-4DRA-A-NPTINTERLOCK SOLENOID RELEASE DPST |
3 |
|
Datasheet |
D4BL | Bulk | Active | Solenoid Release | DPST-NC (DB) + SPST-NC (DB) | 6A (AC) | 115VAC | 24VDC | 71kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | M20 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, CSA, UL |
|
SI-LS42WMSGFINTERLOCK SOLENOID RELEASE DPST |
2 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Release | DPST-NO/NC x 2 | 1A (AC) | 24VAC | 110/230VAC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
