Encoders - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
01039-1952ROTARY ENCODER OPTICAL 600PPR |
3 |
|
Datasheet |
XH20 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 600 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 1.5B |
|
01072-288ROTARY ENCODER OPTICAL 2048PPR |
3 |
|
Datasheet |
HS25 | Box | Not For New Designs | Optical | Quadrature with Index (Incremental) | 2048 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Cable | 200M |
|
|
E6C2-CWZ3E 1024P/R 2MINCENC 5-12VDC VOLT ABZPHASE |
3 |
|
Datasheet |
E6C2 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 1024 | 5V ~ 12V | 6mm Dia Flatted End | No | No | Chassis Mount | Vertical | Cable Leads | - |
|

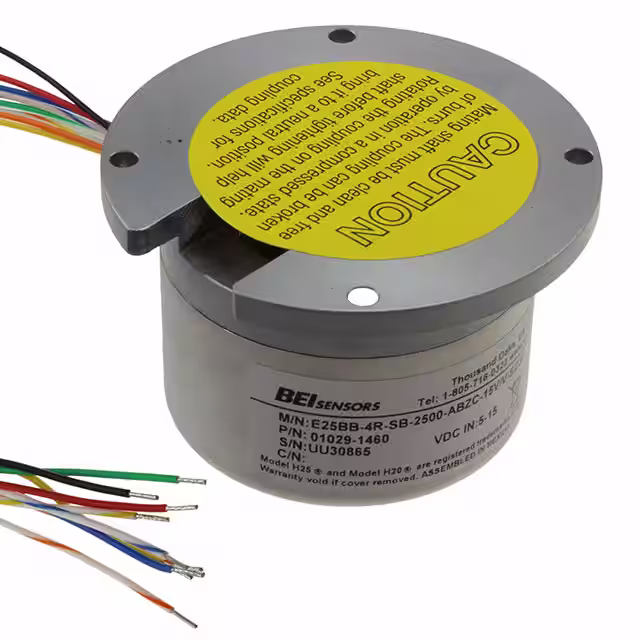

01029-1460ROTARY ENCODER OPTICAL 2500PPR |
9 |
|
Datasheet |
E25 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 2500 | 5V ~ 15V | Hole for Shaft | No | No | Servo Mount | User Selectable | Cable | 1B |
|
01070-271ROTARY ENCODER OPTICAL 2048PPR |
2 |
|
Datasheet |
XHS35 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 2048 | 5V ~ 28V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Connector | 7.5B |
|
|
E6F-AG5B 360 2MROTARY ENCODER OPTICAL 360PPR 2M |
2 |
|
Datasheet |
E6F | Bulk | Active | Optical | Gray Code (Absolute) | 360 | 12V ~ 24V | 10mm Dia Flatted End | No | No | Chassis Mount | Right Angle | Cable Leads | - |
|
01005-505ROTARY ENCODER OPTICAL 12500PPR |
2 |
|
Datasheet |
H25 | Box | Active | Optical | Quadrature with Index (Incremental) | 12500 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|
|
E6F-AB3C-C 360 5MROTARY ENCODER OPTICAL 360PPR 5M |
3 |
|
Datasheet |
E6F | Bulk | Active | Optical | BCD (Absolute) | 360 | 5V ~ 12V | 10mm Dia Flatted End | No | No | Chassis Mount | Right Angle | Cable with Connector | - |
|
|
01070-412ROTARY ENCODER OPTICAL 1024PPR |
2 |
|
Datasheet |
HS35 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 1024 | 5V ~ 28V | Hole for Shaft | No | No | Chassis Mount, Motors | User Selectable | Connector | 7.5B |
|
|
01002-7903ROTARY ENCODER OPTICAL 2500PPR |
11 |
|
Datasheet |
H25 | Bulk | Active | Optical | Quadrature (Incremental) | 2500 | 5V ~ 15V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|
01142-002LINEAR CABLE TRANSDUCER INCREMEN |
3 |
|
Datasheet |
CD120 | Box | Active | Optical | Quadrature with Index (Incremental) | - | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | - |
|

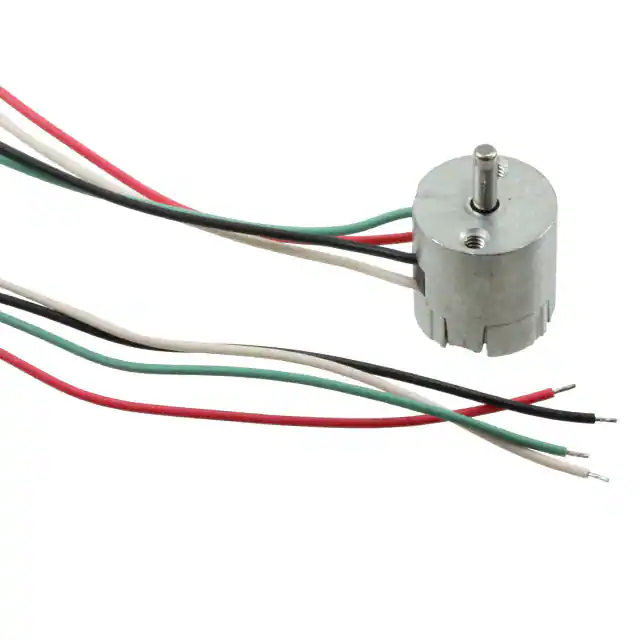

RE12A-200-100-1ROTARY ENCODER OPTICAL 200PPR |
88 |
|
Datasheet |
RE12A | Tray | Active | Optical | Voltage | 200 | 5V | Shaft | No | No | Chassis Mount | User Selectable | Wire Leads | - |
|
RES20B-25-201-1ROTARY ENCODER OPTICAL 25PPR |
27 |
|
Datasheet |
RE | Tray | Active | Optical | Quadrature (Incremental) | 25 | 5V | Shaft | No | No | Panel Mount | User Selectable | Wire Leads | - |
|

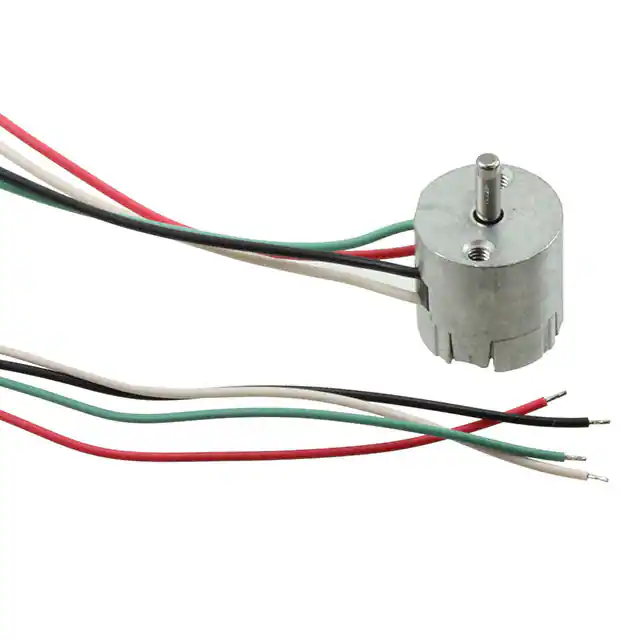

RE12A-100-100-1ROTARY ENCODER OPTICAL 100PPR |
24 |
|
Datasheet |
RE12A | Tray | Active | Optical | Voltage | 100 | 5V | Shaft | No | No | Chassis Mount | User Selectable | Wire Leads | - |
|

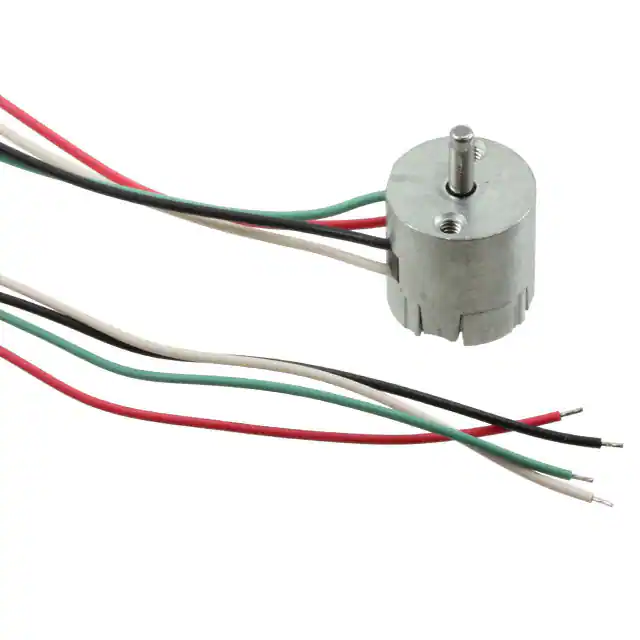

RE12A-300-100-1ROTARY ENCODER OPTICAL 300PPR |
54 |
|
Datasheet |
RE12A | Tray | Active | Optical | Voltage | 300 | 5V | Shaft | No | No | Chassis Mount | User Selectable | Wire Leads | - |
|
RE30E-200-213-1ROTARY ENCODER OPTICAL 200PPR |
20 |
|
Datasheet |
RE30E | Tray | Active | Optical | Quadrature with Index (Incremental) | 200 | 5V ~ 12V | Shaft | No | No | Chassis Mount | User Selectable | Wire Leads | - |
|
|
RE30E-800-213-1ROTARY ENCODER OPTICAL 800PPR |
5 |
|
Datasheet |
RE30E | Tray | Active | Optical | Quadrature with Index (Incremental) | 800 | 5V ~ 12V | Shaft | No | No | Chassis Mount | User Selectable | Wire Leads | - |
|
|
RE30E-900-213-1ROTARY ENCODER OPTICAL 900PPR |
2 |
|
Datasheet |
RE30E | Tray | Active | Optical | Quadrature with Index (Incremental) | 900 | 5V ~ 12V | Shaft | No | No | Chassis Mount | User Selectable | Wire Leads | - |
|
|
RE30E-100-213-1ROTARY ENCODER OPTICAL 100PPR |
22 |
|
Datasheet |
RE30E | Tray | Active | Optical | Quadrature with Index (Incremental) | 100 | 5V ~ 12V | Shaft | No | No | Chassis Mount | User Selectable | Wire Leads | - |
|
|
RE30E-400-213-1ROTARY ENCODER OPTICAL 400PPR |
13 |
|
Datasheet |
RE30E | Tray | Active | Optical | Quadrature with Index (Incremental) | 400 | 5V ~ 12V | Shaft | No | No | Chassis Mount | User Selectable | Wire Leads | - |
