Encoders - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

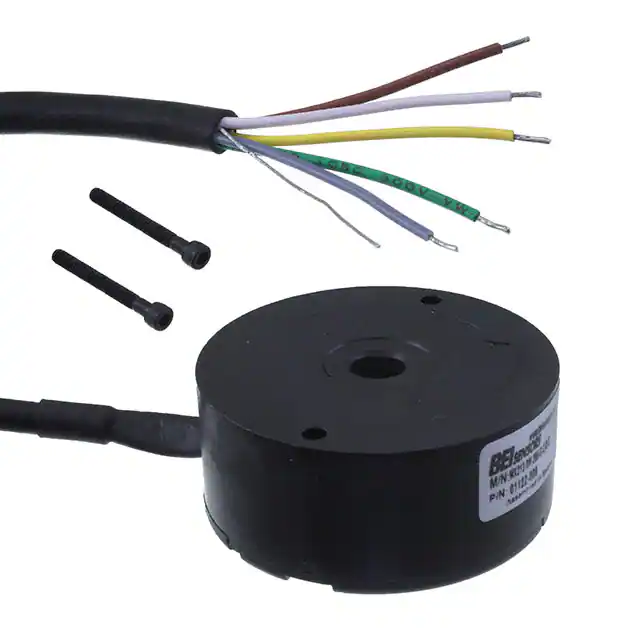

01122-009LINE DRIVER FOR ENCODER 28V |
0 |
|
- |
INSTA-MOUNT™, MX21 | Box | Obsolete | Optical | Quadrature with Index (Incremental) | 200 | 5V | Hole for Shaft | No | No | - | User Selectable | Cable | - |
|
ZOD2000AROTARY ENCODER MECH 2000PPR |
0 |
|
Datasheet |
ZOD | Box | Active | Mechanical | Quadrature with Index (Incremental) | 2000 | 4.75V ~ 28V | 1/4" Open Center | No | - | Chassis Mount, Motors | - | Cable | - |
|
E6C2-CWZ3E 600P/R 2MROTARY ENCODER OPTICAL 600PPR 2M |
0 |
|
Datasheet |
E6C2 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 600 | 5V ~ 12V | 6mm Dia Flatted End | No | No | Chassis Mount | Vertical | Cable Leads | - |
|
|
E6C3-CWZ3EH 1500P/R 2MROTARY ENCODER OPT 1500PPR 2M |
0 |
|
Datasheet |
E6C3 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 1500 | 5V ~ 12V | 8mm Dia Flatted End | No | No | Chassis Mount | Right Angle | Cable Leads | - |
|
|
E6B2-CWZ6C-6 600P/R 5MROTARY ENCODER OPTICAL 600PPR |
0 |
|
Datasheet |
E6B2 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 600 | 5V ~ 24V | 6mm Dia Flatted End | No | No | Chassis Mount | Vertical | Cable Leads | 100M |
|
MHM510-PROF-005ROTARY ENCODER OPTICAL 4096PPR |
0 |
|
Datasheet |
- | Bulk | Active | Optical | Quadrature with Index (Incremental) | 4096 | 10V ~ 30V | Shaft | No | No | Chassis Mount, Motors | User Selectable | Connector | 1B |
|
|
E6B2-CWZ1X 360P/R 2MINC LINE DRVR 5VDC ABZ PHS |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|
01039-2779ENCODER ROTARY H20 60PPR |
0 |
|
Datasheet |
H20 | Box | Not For New Designs | Incremental | Quadrature (Incremental) | 4096 | 5V ~ 28V | Shaft | No | No | Chassis Mount | Vertical | Connector | 1.5B |
|
ZPJ2000AROTARY ENCODER MECH 2000PPR |
0 |
|
- |
ZPJ | Box | Active | Mechanical | Quadrature with Index (Incremental) | 2000 | 4.75V ~ 28V | 5/8" Open Center | No | - | Chassis Mount, Motors | - | Cable | - |
|
|
ZPJ2048AROTARY ENCODER MECH 2048PPR |
0 |
|
- |
ZPJ | Box | Active | Mechanical | Quadrature with Index (Incremental) | 2048 | 4.75V ~ 28V | 5/8" Open Center | No | - | Chassis Mount, Motors | - | Cable | - |
|

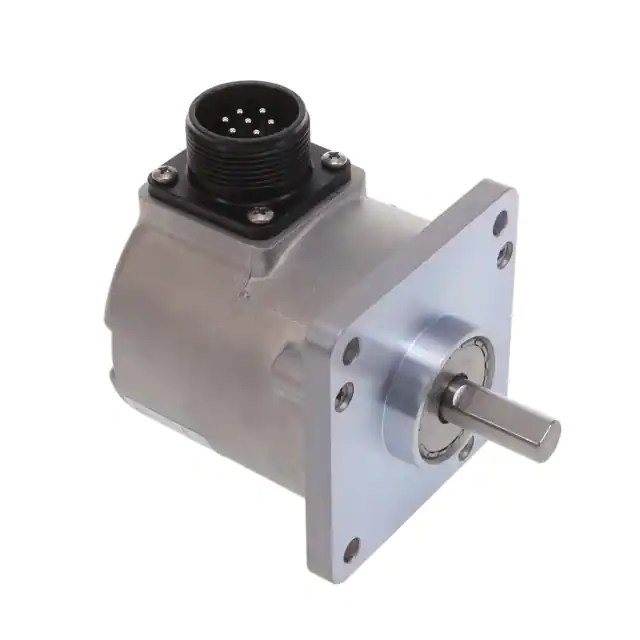

01002-9313H25D-SS-3600-ABC-28V/V-SM16 |
1 |
|
Datasheet |
H25 | Bulk | Active | Optical | Quadrature (Incremental) | 3600 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|

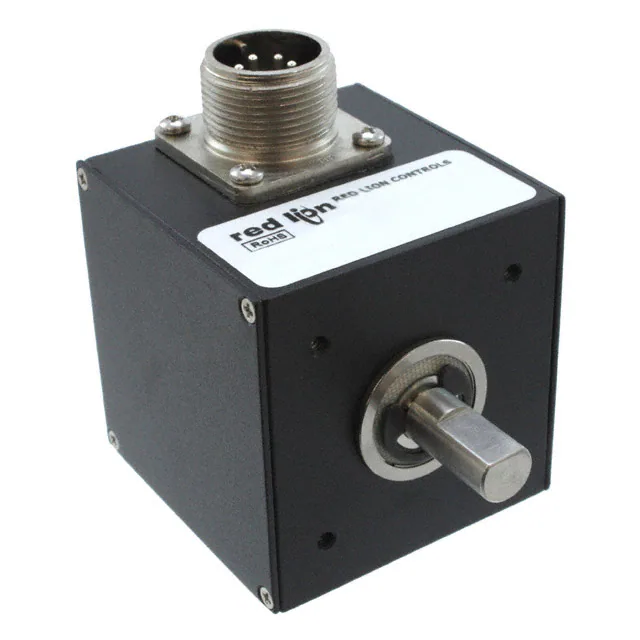

ZBH01002ROTARY ENCODER OPTICAL 100PPR |
0 |
|
Datasheet |
ZBH | Box | Active | Optical | Quadrature (Analog) | 100 | 4.75V ~ 28V | 3/8" Dia Flatted End | No | No | Chassis Mount | - | Connector | - |
|
ZBH01202ROTARY ENCODER OPTICAL 120PPR |
0 |
|
Datasheet |
ZBH | Box | Active | Optical | Quadrature (Analog) | 120 | 4.75V ~ 28V | 3/8" Dia Flatted End | No | No | Chassis Mount | - | Connector | - |
|
|
E63-SC5G-2 12PENCODER |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
ZBH00122ROTARY ENCODER OPTICAL 12PPR |
0 |
|
Datasheet |
ZBH | Box | Active | Optical | Quadrature (Analog) | 12 | 4.75V ~ 28V | 3/8" Dia Flatted End | No | No | Chassis Mount | - | Connector | - |
|

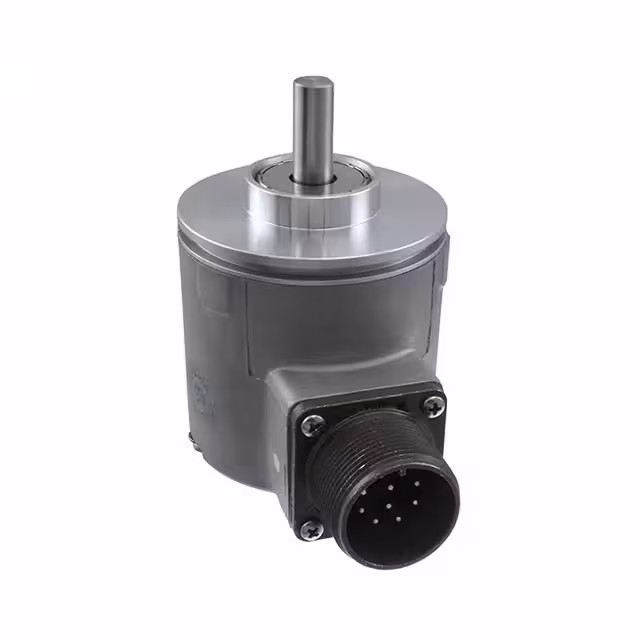

01002-2553ROTARY ENCODER OPTICAL 250PPR |
1 |
|
Datasheet |
H25 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 250 | 5V ~ 28V | Shaft | No | No | Servo Mount | User Selectable | Connector | 200M |
|
|
E6C2-CWZ6C 1024P/R 2MROTARY ENCODER OPT 1024PPR 2M |
0 |
|
Datasheet |
E6C2 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 1024 | 5V ~ 24V | 6mm Dia Flatted End | No | No | Chassis Mount | Vertical | Cable Leads | - |
|
01002-7835ROTARY ENCODER OPTICAL 2500PPR |
0 |
|
Datasheet |
H25 | Bulk | Active | Optical | Quadrature (Incremental) | 2500 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|
|
01039-1867ROTARY ENCODR INCREMENTAL 100PPR |
0 |
|
Datasheet |
H20 | Bulk | Active | Incremental | Quadrature (Incremental) | 100 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 1.5B |
|
|
01039-1896ROTARY ENCODR INCREMENTAL 200PPR |
0 |
|
Datasheet |
H20 | Box | Not For New Designs | Incremental | Pulse | 200 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 1.5B |
