Encoders - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RES20D-25-201-1ROTARY ENCODER OPTICAL 25PPR |
0 |
|
Datasheet |
RES | Bulk | Active | Optical | Quadrature with Index (Incremental) | 25 | 5V | Shaft | No | No | Chassis Mount | User Selectable | Connector | - |
|
|
62AG22-L9-160CROTARY ENCODER OPTICAL 16PPR |
0 |
|
Datasheet |
62AG | Bulk | Active | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel Mount | Vertical | Cable with Connector | 1M |
|
|
62VG22-L9-160CROTARY ENCODER OPTICAL 16PPR 4" |
0 |
|
Datasheet |
62VG | Bulk | Active | Optical | Quadrature (Incremental) | 16 | 3.3V | 1/4" Dia Flatted End | Yes | Yes | Panel Mount | Vertical | Cable with Connector | 1M |
|
|
62VG11-H9-040CROTARY ENCODER OPTICAL 32PPR 4" |
0 |
|
Datasheet |
62VG | Bulk | Active | Optical | Quadrature (Incremental) | 32 | 3.3V | 1/4" Dia Flatted End | Yes | Yes | Panel Mount | Vertical | Cable with Connector | 1M |
|
|
62SG22-L0-020CROTARY ENCODER OPT 16PPR 10" |
0 |
|
Datasheet |
62SG | Bulk | Active | Incremental | Gray Code (Absolute) | 16 | 5V | 6.32mm Dia Flatted End | Yes | No | Panel Mount | Vertical | Cable with Connector | 1M |
|
|
62SG15-H9-020CROTARY ENCODER OPT 24PPR 10" |
0 |
|
Datasheet |
62SG | Bulk | Active | Incremental | Gray Code (Absolute) | 24 | 5V | 6.32mm Dia Flatted End | Yes | Yes | Panel Mount | Vertical | Cable with Connector | 1M |
|
|
62SG15-L0-040CROTARY ENCODER OPT 24PPR 10" |
0 |
|
Datasheet |
62SG | Bulk | Active | Incremental | Gray Code (Absolute) | 24 | 5V | 6.32mm Dia Flatted End | Yes | No | Panel Mount | Vertical | Cable with Connector | 1M |
|
|
62SG15-H9-020S62SG15-H9-020S |
0 |
|
Datasheet |
62 | Bulk | Active | Optical | NPN - Open Collector, Quadrature, 2-Bit | - | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | Yes | Panel Mount | User Selectable | Cable Leads | 1M |
|
|

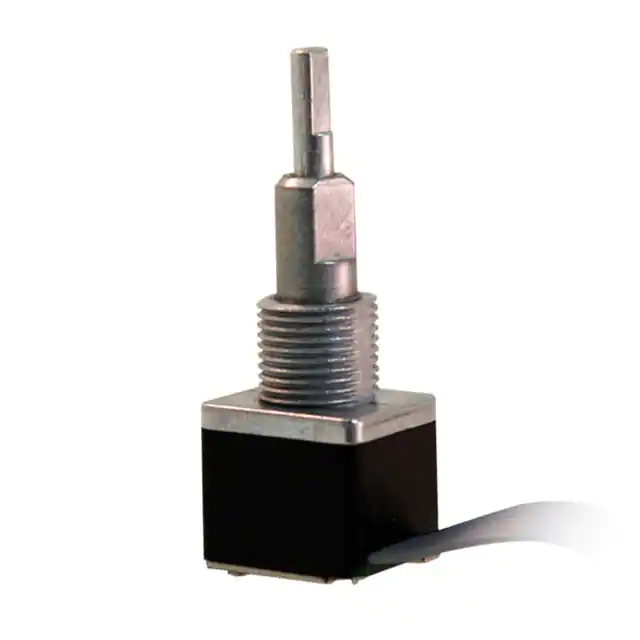

62NG522-LH5-02SROTARY ENCODER OPTICAL 16PPR |
0 |
|
Datasheet |
62NG | Bulk | Active | Optical | Quadrature, 2-Bit | 16 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel Mount | Vertical | Cable Leads | 1M |
|
|
62NG315-BH5-02CROTARY ENCODER OPTICAL 24PPR |
0 |
|
Datasheet |
62NG | Bulk | Active | Optical | Quadrature, 2-Bit | 24 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel Mount | Vertical | Cable with Connector | 1M |
|
|
62VG11-H9-020C62VG11-H9-020C |
0 |
|
- |
62VG | Bulk | Active | Optical | NPN - Open Collector, Quadrature, 2-Bit | - | 3.175V ~ 3.425V | 1/4" Dia Flatted End | Yes | Yes | Panel Mount | User Selectable | Cable with Connector | 1M |
|
|
62VG11-H0-040CROTARY ENCODER OPTICAL 32PPR 4" |
0 |
|
Datasheet |
62VG | Bulk | Active | Optical | Quadrature (Incremental) | 32 | 3.3V | 1/4" Dia Flatted End | Yes | No | Panel Mount | Vertical | Cable with Connector | 1M |
|
|
62VG22-L5-040CROTARY ENCODER OPTICAL 16PPR 4" |
0 |
|
Datasheet |
62VG | Bulk | Active | Optical | Quadrature (Incremental) | 16 | 3.3V | 1/4" Dia Flatted End | Yes | Yes | Panel Mount | Vertical | Cable with Connector | 1M |
|
|
62NG515-LH5-03C62NG515-LH5-03C |
0 |
|
Datasheet |
62NG | Bulk | Active | Optical | Quadrature, 2-Bit | - | 4.75V ~ 5.25V | 1/8" Dia Flatted End | Yes | Yes | Panel Mount | User Selectable | Cable with Connector | 1M |
|
|
REC20D-25-201-1ROTARY ENCODER OPTICAL 25PPR |
0 |
|
Datasheet |
REC | Bulk | Active | Optical | Quadrature with Index (Incremental) | 25 | 5V | Shaft | No | No | Chassis Mount | User Selectable | Connector | - |
|
|
62NG522-LL5-04S62NG522-LL5-04S |
0 |
|
Datasheet |
62N | Bulk | Active | Optical | NPN - Open Collector, Quadrature, 2-Bit | - | 4.75V ~ 5.25V | 1/8" Dia Flatted End | Yes | Yes | Panel Mount | User Selectable | Cable Leads | 1M |
|
|
62NG515-LL5-02CROTARY ENCODER OPTICAL 24PPR |
0 |
|
Datasheet |
62NG | Bulk | Active | Optical | Quadrature, 2-Bit | 24 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel Mount | User Selectable | Cable with Connector | 1M |
|
|
62NG515-LH5-02CROTARY ENCODER OPTICAL 24PPR |
0 |
|
Datasheet |
62NG | Bulk | Active | Optical | Quadrature, 2-Bit | 24 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel Mount | User Selectable | Cable with Connector | 1M |
|
|
62NG522-LL5-02CROTARY ENCODER OPTICAL 16PPR |
0 |
|
Datasheet |
62NG | Bulk | Active | Optical | Quadrature, 2-Bit | 16 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel Mount | Vertical | Cable with Connector | 1M |
|
62NG522-LL5-06CROTARY ENCODER OPTICAL 16PPR |
0 |
|
Datasheet |
62NG | Bulk | Active | Optical | - | 16 | 5V | - | Yes | Yes | Panel Mount | User Selectable | Cable with Connector | 1M |
