Encoders - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HR525102413E1SRV 3/8 SFT 10P DIF LD CN SMT |
10 |
|
Datasheet |
HR25 | Box | Active | Incremental | Quadrature with Index (Incremental) | 1024 | 5V ~ 26V | 3/8" Dia Flatted End | No | No | Servo Mount | User Selectable | Connector | - |
|
|
HR52510243356ENCODER,HR525 |
10 |
|
Datasheet |
HR25 | Box | Active | Incremental | Quadrature with Index (Incremental) | 1024 | 5V ~ 26V | 1/4" Dia Flatted End | No | No | Servo Mount | User Selectable | Cable | - |
|
AMT113S-VROTARY ENCODER INCREMENT PROGPPR |
0 |
|
Datasheet |
AMT11 | Box | Active | Incremental | Voltage | Programmable | 5V | 2mm ~ 8mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Connector | - |
|

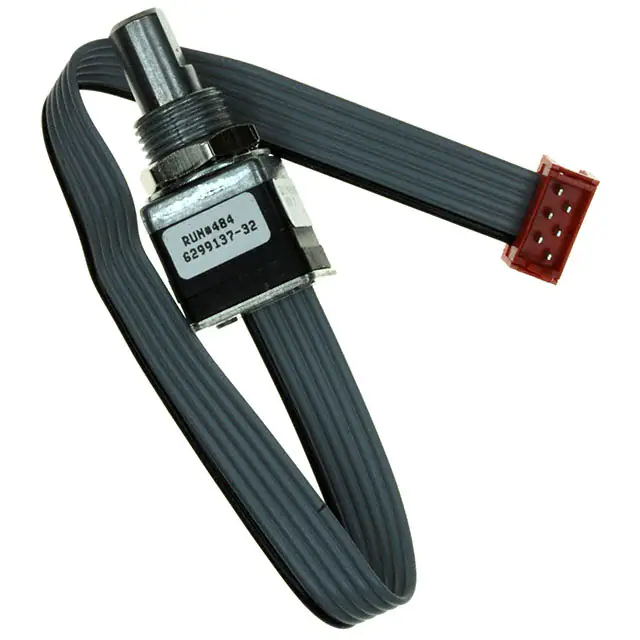

62A11-01-060CROTARY ENCODER OPT 32PPR 6" CBL |
1 |
|
Datasheet |
62A | Bulk | Active | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | No | Panel Mount | User Selectable | Cable with Connector | 1M |
|
AMT212F-VKIT, AMT212F, RS-485, ABSOLUTE E |
0 |
|
Datasheet |
AMT21 | Box | Active | Absolute | RS-485 | 16384 | 3.8V ~ 5.5V | Open Center | No | No | Chassis Mount, Motors | Vertical | Connector | - |
|
AMT222B-VKIT AMT222B 14-BIT SPI ABSOLUTE |
0 |
|
Datasheet |
AMT22 | Box | Active | Absolute | SPI | Programmable | 3.8V ~ 5.5V | Open Center | No | Yes | Chassis Mount, Motors | Vertical | Connector | - |
|

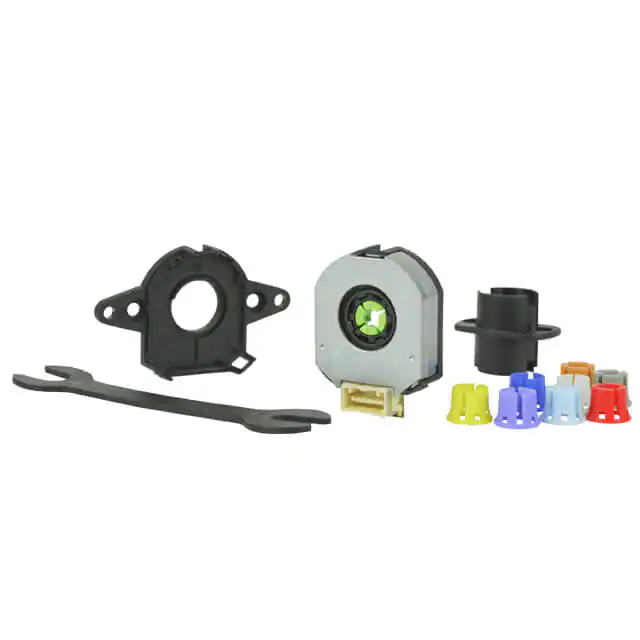

AMT223D-VKIT, AMT223D, SPI ABSOLUTE ENCOD |
0 |
|
Datasheet |
AMT22 | Box | Active | Absolute | SPI | - | 3.8V ~ 5.5V | 2mm ~ 8mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Connector | 4K |
|

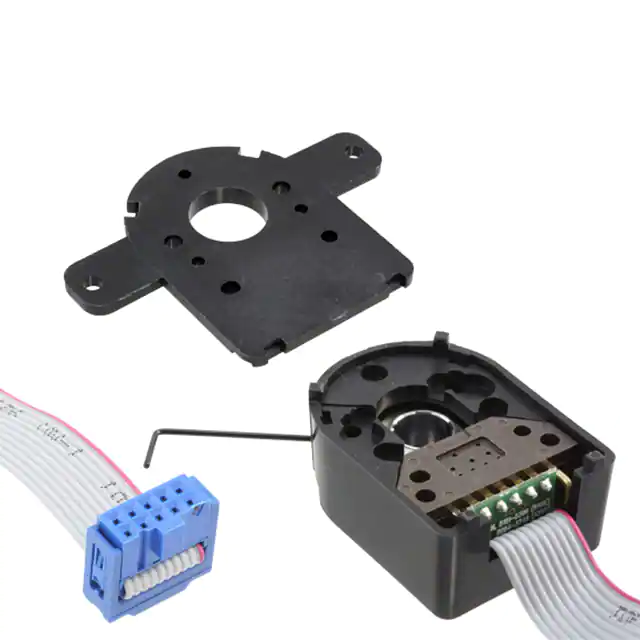

HEDL-5640#A13ROTARY ENCODER OPTICAL 500PPR |
0 |
|
Datasheet |
HEDL | Tray | Active | Optical | Quadrature with Index (Incremental) | 500 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Cable with Connector | - |
|
01039-1934ROTARY ENCODER OPTICAL 200PPR |
1 |
|
Datasheet |
XH20 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 200 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 1.5B |
|
01002-8975ROTARY ENCODER OPTICAL 1000PPR |
0 |
|
Datasheet |
H25 | Box | Active | Optical | Quadrature (Analog) | 1000 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|
|
01002-6229ROTARY ENCODER OPTICAL 1200PPR |
0 |
|
Datasheet |
H25 | Box | Active | Optical | Quadrature (Incremental) | 1200 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|
|
01002-7669ROTARY ENCODER OPTICAL 1000PPR |
0 |
|
Datasheet |
H25 | Box | Active | Optical | Quadrature with Index (Incremental) | 1000 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|
|
01002-8500ROTARY ENCODER OPTICAL 1024PPR |
1 |
|
Datasheet |
XH25 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 1024 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|

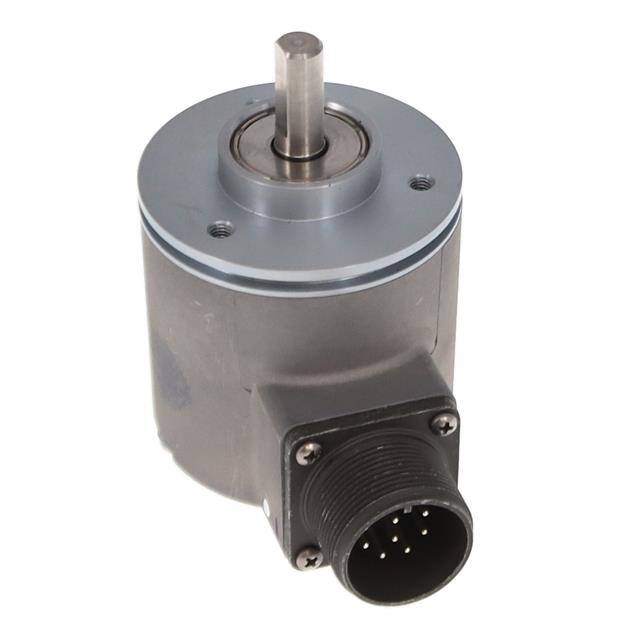

01002-8624ROTARY ENCODER OPTICAL 1024PPR |
0 |
|
Datasheet |
XH25 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 1024 | 5V ~ 28V | Shaft | No | No | Servo Mount | - | Connector | 200M |
|
|
01002-8683ROTARY ENCODER OPTICAL 3600PPR |
1 |
|
Datasheet |
XH25 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 3600 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|
01070-361ROTARY ENCODER OPTICAL 1024PPR |
1 |
|
Datasheet |
HS35 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 1024 | 5V ~ 28V | Hole for Shaft | No | No | Chassis Mount, Motors | User Selectable | Connector | 7.5B |
|
|
01002-7499ROTARY ENCODER OPTICAL 2048PPR |
1 |
|
Datasheet |
H25 | Box | Active | Optical | Quadrature (Incremental) | 2048 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|
|
01124-001ROTARY ENCODER OPTICAL PROG |
0 |
|
Datasheet |
Omnicoder®, H25® | Bulk | Active | Optical | Quadrature with Index (Incremental) | Programmable | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|
01070-156ROTARY ENCODER OPTICAL 2048PPR |
1 |
|
Datasheet |
HS35 | Box | Active | Optical | Quadrature with Index (Incremental) | 2048 | 5V ~ 28V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Terminal Block, Straight - Push In | 7.5B |
|
|
01070-918ROTARY ENCODER OPTICAL 1024PPR |
1 |
|
Datasheet |
HS35 | Box | Active | Incremental | Quadrature (Incremental) | 80000 | 5V ~ 28V | Hole for Shaft | No | No | Chassis Mount, Motors | User Selectable | Connector | 7.5B |
