Handles
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Height | Length - Center to Center | Thread/Screw/Hole Size | Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
565.1-20-160-BLHANDLE ALUMINUM MTG CTR 6.3" |
39 |
|
Datasheet |
GN 565.1 | Box | Active | Instrumentation | 2.010" (51.05mm) | 6.300" (160.02mm) | - | Aluminum | Screw Holes, Back |
|
8013-256-SS-20HANDLE S STEEL MTG CTR 2" |
100 |
|
- |
- | Bulk | Active | Instrumentation | 0.750" (19.05mm) | 2.000" (50.80mm) | #2-56 | Stainless Steel | Screw Holes, Back |
|
8359-1032-A-35HANDLE ALUMINUM MTG CTR 4" |
31 |
|
- |
- | Bulk | Active | Instrumentation | 1.281" (32.54mm) | 4.000" (101.60mm) | #10-32 | Aluminum | Screw Holes, Back |
|
730-125-SWHANDLE ALUMINUM MTG CTR 4.92" |
17 |
|
Datasheet |
GN 730 | Box | Active | Instrumentation | 1.260" (32.00mm) | 4.920" (124.97mm) | M6 | Aluminum | Screw Holes, Back |
|
8286-1032-A-34HANDLE ALUMINUM MTG CTR 4" |
100 |
|
- |
- | Bulk | Active | Instrumentation | 1.500" (38.10mm) | 4.000" (101.60mm) | #10-32 | Aluminum | Screw Holes, Back |
|
12W180D35QHANDLE ALUMINUM MTG CTR 7.09" |
18 |
|
Datasheet |
GN 427 | Box | Active | Instrumentation | 1.570" (39.88mm) | 7.090" (180.09mm) | - | Aluminum | Screw Holes, Back |
|
425-AL-10-235-SWHANDLE ALUMINUM MTG CTR 9.25" |
16 |
|
Datasheet |
GN 425 | Box | Active | Instrumentation | 1.690" (42.93mm) | 9.250" (234.95mm) | M5 | Aluminum | Screw Holes, Back |
|
|
22311I.281+X, CYLINDRICAL REVOLVING H |
50 |
|
Datasheet |
I.281 | Bag | Active | Instrumentation | - | - | M6 | Phenolic | Screw, Bolt |
|
8342-1032-A-24HANDLE ALUMINUM MTG CTR 4" |
44 |
|
- |
- | Bulk | Active | Instrumentation | 1.500" (38.10mm) | 4.000" (101.60mm) | #10-32 | Aluminum | Screw Holes, Back |
|
528-SV-179-8.5-SWHANDLE PLASTIC MTG CTR 7.05" |
12 |
|
Datasheet |
EN 528 | Box | Active | Instrumentation | 1.970" (50.04mm) | 7.050" (179.07mm) | - | Plastic | Screw Holes, Back |
|
4421BL.666, GEAR LEVER HANDLES, DURO |
24 |
|
Datasheet |
BL.666 | Bag | Active | Rotating | - | - | M10 | Steel | Screw, Bolt |
|
528.1-PA-179-M8-ORHANDLE PLASTIC MTG CTR 7.05" |
8 |
|
Datasheet |
EN 528.1 | Box | Active | Instrumentation | 2.010" (51.05mm) | 7.050" (179.07mm) | M8 | Plastic | Screw Holes, Back |
|
225W120D97K/AHANDLE ALUMINUM MTG CTR 4.72" |
16 |
|
Datasheet |
GN 728 | Box | Active | Instrumentation | 1.670" (42.42mm) | 4.720" (119.89mm) | M6 | Aluminum | Screw Holes, Back |
|
|
730-140-SWHANDLE ALUMINUM MTG CTR 5.51" |
16 |
|
Datasheet |
GN 730 | Box | Active | Instrumentation | 1.260" (32.00mm) | 5.510" (139.95mm) | M6 | Aluminum | Screw Holes, Back |
|

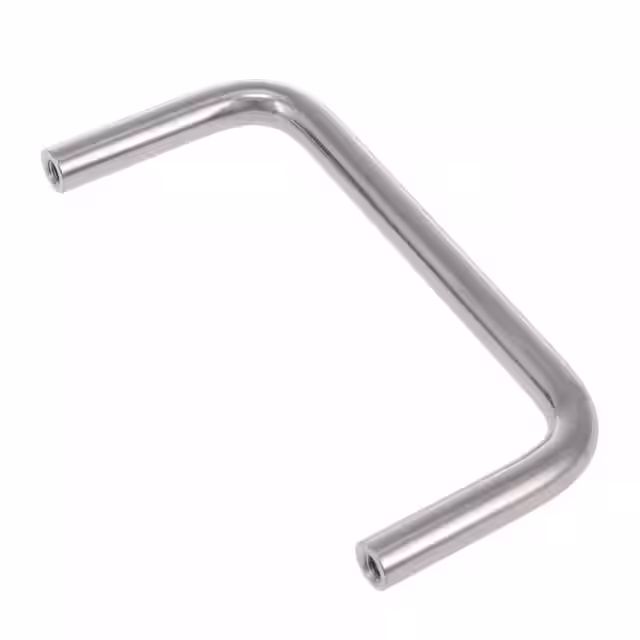

8128-632-SS-20HANDLE S STEEL MTG CTR 3" |
79 |
|
- |
- | Bulk | Active | Instrumentation | 1.500" (38.10mm) | 3.000" (76.20mm) | #6-32 | Stainless Steel | Screw Holes, Back |
|
565.1-20-100-SWHANDLE ALUMINUM MTG CTR 3.94" |
36 |
|
Datasheet |
GN 565.1 | Box | Active | Instrumentation | 1.930" (49.02mm) | 3.940" (100.08mm) | - | Aluminum | Screw Holes, Back |
|
425-AL-8-55-ELHANDLE ALUMINUM MTG CTR 2.17" |
13 |
|
Datasheet |
GN 425 | Box | Active | Instrumentation | 1.380" (35.05mm) | 2.170" (55.12mm) | M4 | Aluminum | Screw Holes, Back |
|
8229-1032-SS-20HANDLE S STEEL MTG CTR 2.5" |
76 |
|
- |
- | Bulk | Active | Instrumentation | 1.750" (44.45mm) | 2.500" (63.50mm) | #10-32 | Stainless Steel | Screw Holes, Back |
|
8262-632-SSHANDLE S STEEL MTG CTR 4" |
17 |
|
Datasheet |
- | Bulk | Active | Instrumentation | 1.000" (25.40mm) | 4.000" (101.60mm) | #6-32 | Stainless Steel | Screw Holes, Back |
|
26W128B79T/5THANDLE ALUMINUM MTG CTR 5.04" |
18 |
|
Datasheet |
GN 565 | Box | Active | Instrumentation | 2.170" (55.12mm) | 5.040" (128.02mm) | 5/16"-18 | Aluminum | Screw Holes, Back |
