Handles
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Height | Length - Center to Center | Thread/Screw/Hole Size | Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4202BL.368, GEAR LEVER HANDLES, HAND |
15 |
|
Datasheet |
BL.368 | Bag | Active | Rotating | - | - | M12 | Steel | Screw, Bolt |
|

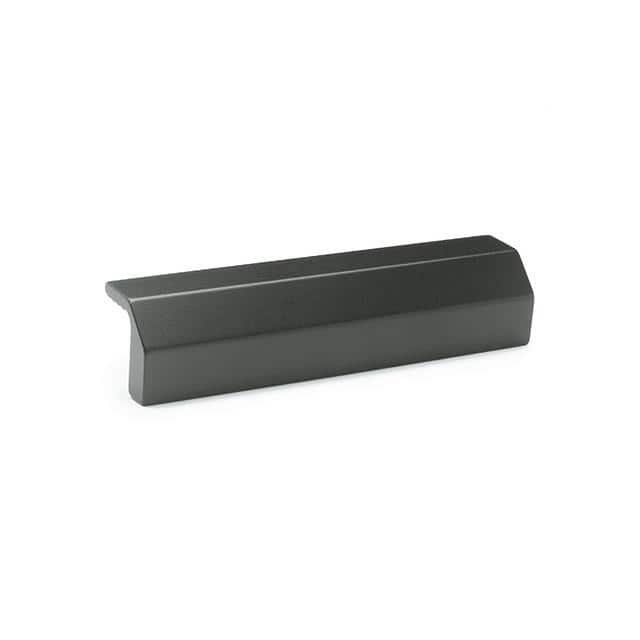

RHLG-03.090.04RHLG-03, LEDGE HANDLES, THREADED |
8 |
|
Datasheet |
RH-LG | Bag | Active | Instrumentation | 0.866" (22.00mm) | 3.543" (90.00mm) | M4 | Aluminum | Screw Holes, Back |
|
241036-C8ERM-SST, ADJUSTABLE HANDLES, STA |
7 |
|
Datasheet |
ERM. | Bag | Active | Rotating | 2.205" (56.00mm) | 3.740" (95.00mm) | M10 | Zinc | Screw Holes, Back |
|
236003-C3ERX-SST-P, ADJUSTABLE HANDLES, S |
20 |
|
Datasheet |
ERX. | Bag | Active | Rotating | 2.579" (65.50mm) | 4.252" (108.00mm) | M12 | Polyamide | Screw, Bolt |
|
|
236003-C6ERX-SST-P, ADJUSTABLE HANDLES, S |
10 |
|
Datasheet |
ERX. | Bag | Active | Rotating | 2.579" (65.50mm) | 4.252" (108.00mm) | M12 | Polyamide | Screw, Bolt |
|
|
236003-C5ERX-SST-P, ADJUSTABLE HANDLES, S |
10 |
|
Datasheet |
ERX. | Bag | Active | Rotating | 2.579" (65.50mm) | 4.252" (108.00mm) | M12 | Polyamide | Screw, Bolt |
|
|
236003-C2ERX-SST-P, ADJUSTABLE HANDLES, S |
10 |
|
Datasheet |
ERX. | Bag | Active | Rotating | 2.579" (65.50mm) | 4.252" (108.00mm) | M12 | Polyamide | Screw, Bolt |
|
|
236003-C4ERX-SST-P, ADJUSTABLE HANDLES, S |
10 |
|
Datasheet |
ERX. | Bag | Active | Rotating | 2.579" (65.50mm) | 4.252" (108.00mm) | M12 | Polyamide | Screw, Bolt |
|
|
236003-C1ERX-SST-P, ADJUSTABLE HANDLES, S |
10 |
|
Datasheet |
ERX. | Bag | Active | Rotating | 2.579" (65.50mm) | 4.252" (108.00mm) | M12 | Polyamide | Screw, Bolt |
|
32303L.152, T-HANDLES, T-HANDLES |
7 |
|
Datasheet |
L.152 | Bag | Active | Rotating | 1.181" (30.00mm) | - | - | Aluminum | Screw Holes, Back |
|
3604BL.366, GEAR LEVER HANDLES, HAND |
38 |
|
Datasheet |
BL.366 | Bag | Active | Rotating | - | - | M10 | Steel | Screw, Bolt |
|
239685ERZ-SST-P, ADJUSTABLE HANDLES, S |
8 |
|
Datasheet |
ERZ. | Bag | Active | Rotating | 1.772" (45.00mm) | 3.071" (78.00mm) | M8 | Polyamide | Screw Holes, Back |
|
RHUG-03.120.01RH-UG, BRIDGE HANDLES, BRIDGE HA |
12 |
|
Datasheet |
RH-UG | Bag | Active | Instrumentation | 1.575" (40.00mm) | 4.724" (120.00mm) | M5 | Polyamide | Screw Holes, Back |
|
|
120673I.621+X-SST, CYLINDRICAL REVOLVI |
42 |
|
Datasheet |
I.621+x | Bag | Active | Instrumentation | - | - | M10 | Polyamide | Screw, Bolt |
|
RHLG-04.080.04RHLG-04 - RHLG-05, LEDGE HANDLES |
30 |
|
Datasheet |
RH-LG | Bag | Active | Instrumentation | 0.866" (22.00mm) | 3.150" (80.00mm) | M4 | Aluminum | Screw Holes, Back |
|
|
RHLG-05.064.01RHLG-04 - RHLG-05, LEDGE HANDLES |
15 |
|
Datasheet |
RH-LG | Bag | Active | Instrumentation | 0.866" (22.00mm) | 2.520" (64.00mm) | M6 | Aluminum | Screw Holes, Back |
|
|
RHUG-04.088.04RH-UG, BRIDGE HANDLES, BRIDGE HA |
10 |
|
Datasheet |
RH-UG | Bag | Active | Instrumentation | 1.575" (40.00mm) | 3.465" (88.00mm) | M5 | Polyamide | Screw Holes, Back |
|
|
120772I.621+GX, CYLINDRICAL REVOLVING |
12 |
|
Datasheet |
I.621+x | Bag | Active | Instrumentation | - | - | M12 | Polyamide | Screw, Bolt |
|
|
32311L.152, T-HANDLES, T-HANDLES |
9 |
|
Datasheet |
L.152 | Bag | Active | Rotating | 0.984" (25.00mm) | - | M10 | Aluminum | Screw Holes, Back |
|
RHR1-12.088.04RH-R, BRIDGE HANDLES, BRIDGE HAN |
21 |
|
Datasheet |
RH-R | Bag | Active | Instrumentation | 1.575" (40.00mm) | 3.465" (88.00mm) | M5 | Steel | Screw Holes, Back |
