Gas Discharge Tube Arresters (GDT)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Voltage - DC Spark Over (Nom) | Impulse Discharge Current (8/20µs) | Tolerance | Number of Poles | Fail Short | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

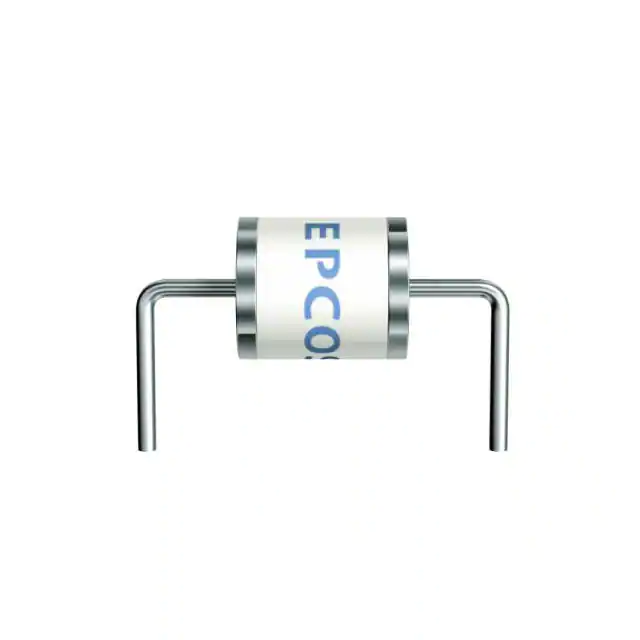

B88069X2633B252GDT 4000V 3KA 2 POLE TH |
255 |
|
Datasheet |
Axial Cylinder, Radial Bend | EHV6x | Tray | Active | 4000 V | 3000A (3kA) | ±20% | 2 | No | Through Hole |
|
|
B88069X3513B252GDT 3000V 3KA 2 POLE TH |
147 |
|
Datasheet |
Axial Cylinder, Radial Bend | EHV6x | Tray | Active | 3000 V | 3000A (3kA) | ±20% | 2 | No | Through Hole |
|

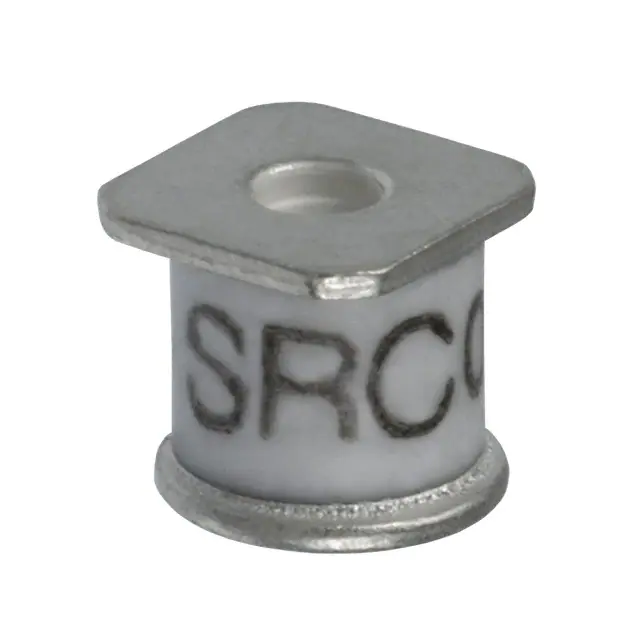

CG5230MSGDT 230V 5KA 2 POLE SMD |
1,272 |
|
Datasheet |
2-SMD Cylinder Square End | CG5 | Tape & Reel (TR) | Active | 230 V | 5000A (5kA) | - | 2 | No | Surface Mount |
|
|
B88069X2213B252GDT 3600V 3KA 2 POLE TH |
150 |
|
Datasheet |
Axial Cylinder, Radial Bend | EHV6x | Tray | Active | 3600 V | 3000A (3kA) | ±20% | 2 | No | Through Hole |
|
GTCA26-101M-R05GDT 100V 5KA 2 POLE THROUGH HOLE |
749 |
|
Datasheet |
Axial Cylinder | GT | Tray | Active | 100 V | 5000A (5kA) | ±20% | 2 | No | Through Hole |
|
|
GTCA26-141M-R05GDT 140V 5KA 2 POLE THROUGH HOLE |
989 |
|
Datasheet |
Axial Cylinder | GTC | Tray | Active | 140 V | 5000A (5kA) | ±20% | 2 | No | Through Hole |
|
|
GTCA28-141M-R20GDT 140V 20KA 2 POLE TH |
119 |
|
Datasheet |
Axial Cylinder | GTC | Tray | Active | 140 V | 20000A (20kA) | ±20% | 2 | No | Through Hole |
|
|
GTCA28-212M-R03GDT 2100V 3KA 2 POLE TH |
638 |
|
Datasheet |
Axial Cylinder | GT | Tray | Active | 2100 V | 3000A (3kA) | ±20% | 2 | No | Through Hole |
 Series.jpg)
|
AC120GDT 285V 5KA 2 POLE |
499 |
|
Datasheet |
Cylinder No Lead | AC | Bulk | Active | 285 V | 5000A (5kA) | - | 2 | No | User Defined |
|

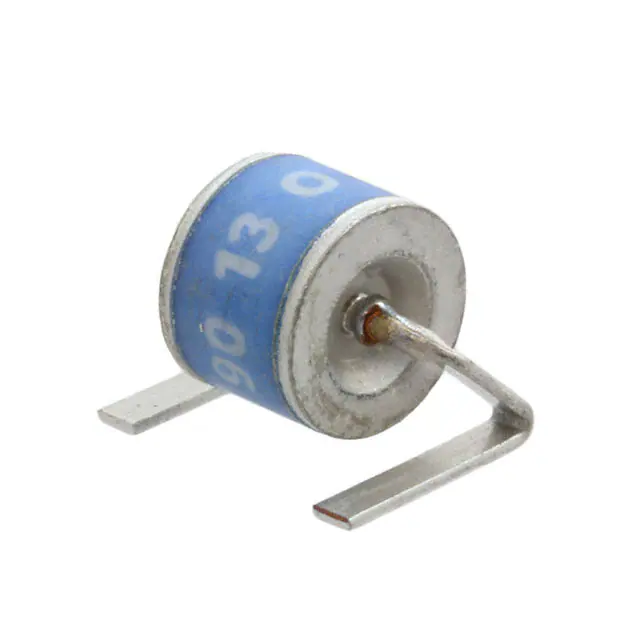

B88069X1370T352GDT 90V 20KA 2 POLE SMD |
392 |
|
Datasheet |
Axial Cylinder, Radial SMT Bend | A81 | Tape & Reel (TR) | Active | 90 V | 20000A (20kA) | ±20% | 2 | No | Surface Mount |
|

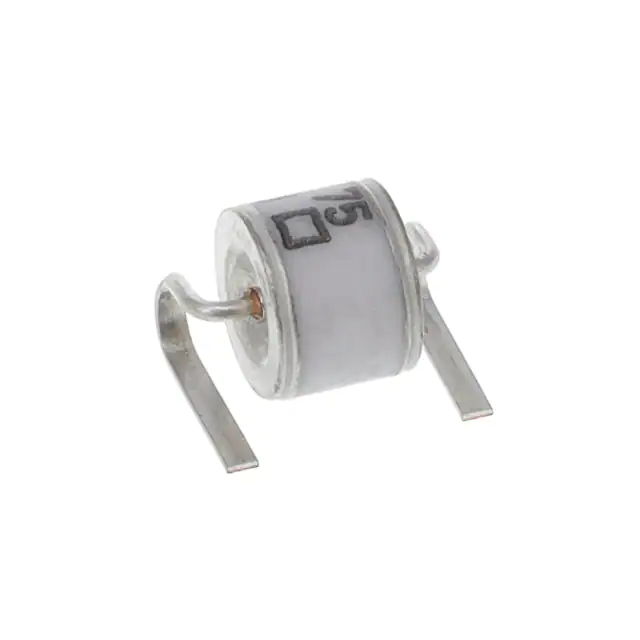

CG75LSGDT 75V 20KA 2 POLE SMD |
4,257 |
|
Datasheet |
Axial Cylinder, Radial SMT Bend | CG | Tape & Reel (TR) | Active | 75 V | 20000A (20kA) | - | 2 | No | Surface Mount |
|
CG2350MSGDT 350V 20KA 2 POLE SMD |
998 |
|
Datasheet |
2-SMD Cylinder Square End | CG2 | Tape & Reel (TR) | Active | 350 V | 20000A (20kA) | - | 2 | No | Surface Mount |
|

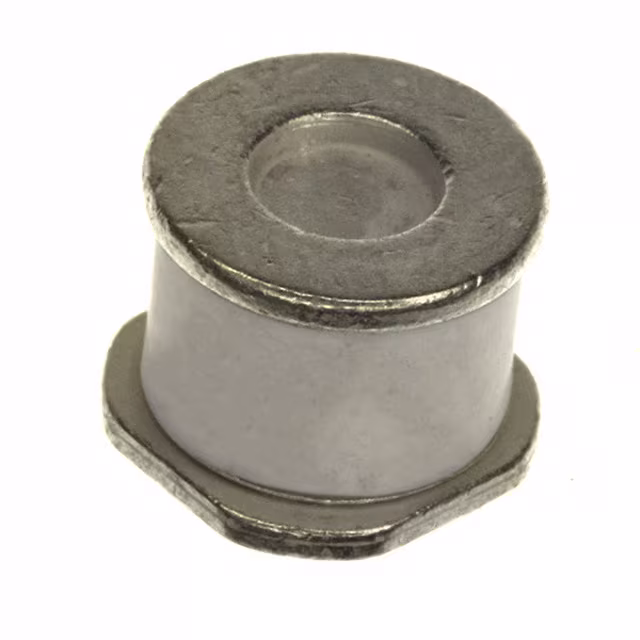

CG2230LGDT 230V 20KA 2 POLE TH |
859 |
|
Datasheet |
Axial Cylinder | CG2 | Tray | Active | 230 V | 20000A (20kA) | - | 2 | No | Through Hole |
|
|
GTCA26-750M-R05GDT 75V 5KA 2 POLE THROUGH HOLE |
830 |
|
Datasheet |
Axial Cylinder | GTC | Tray | Active | 75 V | 5000A (5kA) | ±20% | 2 | No | Through Hole |
|

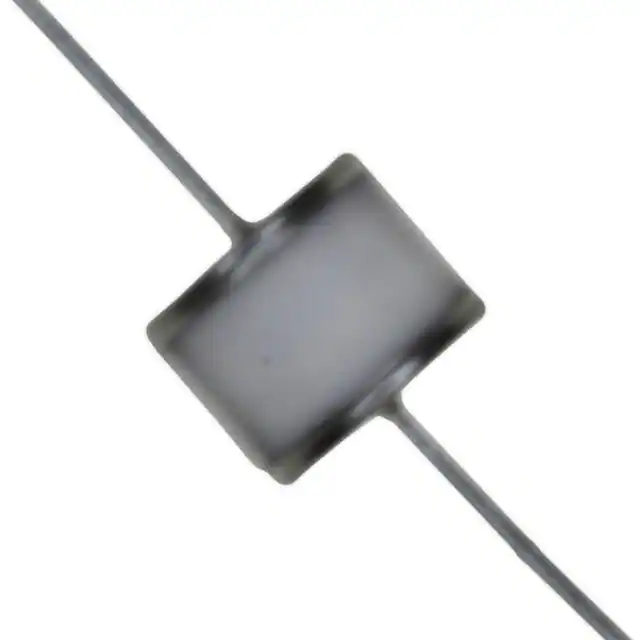

AC120LGDT 285V 5KA 2 POLE THROUGH HOLE |
464 |
|
Datasheet |
Axial Cylinder | AC | Tray | Active | 285 V | 5000A (5kA) | - | 2 | No | Through Hole |
|
CG110MSTRGDT 110V 20KA 2 POLE SMD |
112 |
|
Datasheet |
2-SMD Cylinder Square End | CG | Tape & Reel (TR) | Active | 110 V | 20000A (20kA) | - | 2 | No | Surface Mount |
|
|
CG2350LTRGDT 350V 20KA 2 POLE TH |
314 |
|
Datasheet |
Axial Cylinder | CG2 | Tape & Reel (TR) | Active | 350 V | 20000A (20kA) | - | 2 | No | Through Hole |
|
B88069X2010S102GDT 470V 5KA 2 POLE THROUGH HOLE |
1,155 |
|
Datasheet |
Axial Cylinder | L71 | Bulk | Active | 470 V | 5000A (5kA) | - | 2 | No | Through Hole |
|
|
CG2600LGDT 600V 20KA 2 POLE TH |
364 |
|
Datasheet |
Axial Cylinder | CG2 | Tray | Active | 600 V | 20000A (20kA) | - | 2 | No | Through Hole |
|

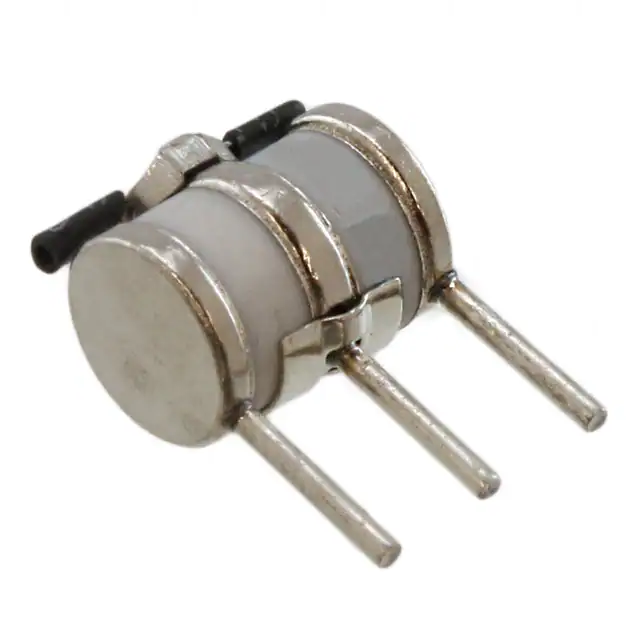

GTCR38-900M-R10-FSGDT 90V 10KA 3 POLE THROUGH HOLE |
1,000 |
|
Datasheet |
Radial Cylinder, 3 Lead | GT | Tray | Active | 90 V | 10000A (10kA) | ±20% | 3 | Yes | Through Hole |
