Gas Discharge Tube Arresters (GDT)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Voltage - DC Spark Over (Nom) | Impulse Discharge Current (8/20µs) | Tolerance | Number of Poles | Fail Short | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CG5150MSGDT 150V 5KA 2 POLE SMD |
0 |
|
Datasheet |
2-SMD Cylinder Square End | CG5 | Tape & Reel (TR) | Active | 150 V | 5000A (5kA) | - | 2 | No | Surface Mount |
|
|
CG5250MSGDT 250V 5KA 2 POLE SMD |
0 |
|
- |
2-SMD Cylinder Square End | CG5 | Tape & Reel (TR) | Active | 250 V | 5000A (5kA) | - | 2 | No | Surface Mount |
|
SH145GDT 145V 5KA 2 POLE SMD |
1 |
|
Datasheet |
2-SMD, Square End Block | SH | Tape & Reel (TR) | Active | 145 V | 5000A (5kA) | - | 2 | No | Surface Mount |
|

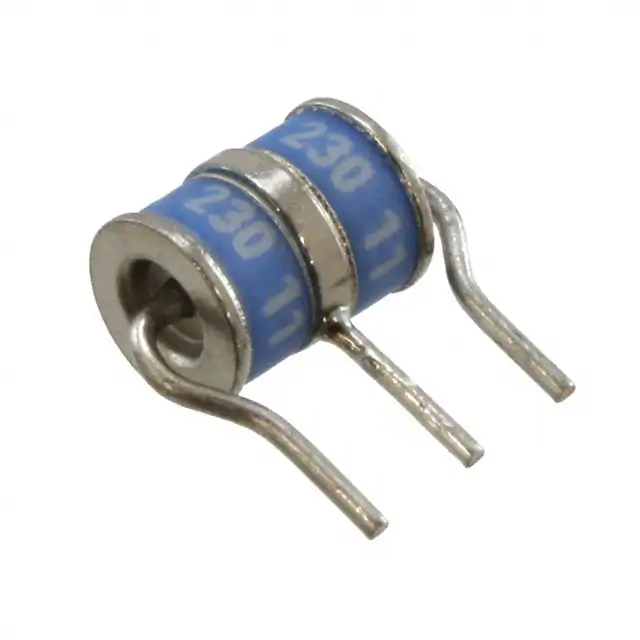

SL1003A230SMFGDT 230V 10KA 3 POLE SMD |
0 |
|
Datasheet |
3-SMD Cylinder Square End | SL1003A | Tape & Reel (TR) | Active | 230 V | 10000A (10kA) | - | 3 | Yes | Surface Mount |
|
SA2-3000-DBB-STDGDT 3000V 5KA 2 POLE TH |
0 |
|
Datasheet |
Axial Cylinder, Radial Bend | SA2 | Bulk | Active | 3000 V | 5000A (5kA) | -15%, +20% | 2 | No | Through Hole |
|
|
SA2-3600-DBB-STDGDT 3600V 5KA 2 POLE TH |
0 |
|
Datasheet |
Axial Cylinder, Radial Bend | SA2 | Bulk | Active | 3600 V | 5000A (5kA) | -15%, +20% | 2 | No | Through Hole |
|
|
SA2-5500-DBB-STDGDT 5500V 5KA 2 POLE TH |
0 |
|
Datasheet |
Axial Cylinder, Radial Bend | SA2 | Bulk | Active | 5500 V | 5000A (5kA) | -15%, +20% | 2 | No | Through Hole |
|
|
SA2-6200-DBB-STDGDT 6200V 5KA 2 POLE TH |
0 |
|
Datasheet |
Axial Cylinder, Radial Bend | SA2 | Bulk | Active | 6200 V | 5000A (5kA) | -15%, +20% | 2 | No | Through Hole |
|
|
B88069X9150B502GDT 250V 20KA 3 POLE TH |
0 |
|
Datasheet |
Axial Cylinder, 3 Lead (Radial Bend) | T25 | Bulk | Active | 250 V | 20000A (20kA) | ±20% | 3 | Yes | Through Hole |
|
B88069X6100T702GDT 230V 10KA 3 POLE SMD |
0 |
|
Datasheet |
3-SMD Cylinder Square End | T30 | Tape & Reel (TR) | Active | 230 V | 10000A (10kA) | ±20% | 3 | No | Surface Mount |
|
|
SA2-5500-DKB-STDGDT 5500V 5KA 2 POLE TH |
0 |
|
Datasheet |
Axial Cylinder, Radial Bend | SA2 | Bulk | Active | 5500 V | 5000A (5kA) | -15%, +20% | 2 | No | Through Hole |
|
|
SA2-6200-DKB-STDGDT 6200V 5KA 2 POLE TH |
0 |
|
Datasheet |
Axial Cylinder, Radial Bend | SA2 | Tape & Reel (TR) | Active | 6200 V | 5000A (5kA) | -15%, +20% | 2 | No | Through Hole |
|
GTCS28-201M-R20-2GDT 200V 20KA 2 POLE SMD |
0 |
|
Datasheet |
2-SMD Cylinder Square End | GT | Tape & Reel (TR) | Active | 200 V | 20000A (20kA) | ±20% | 2 | No | Surface Mount |
|
|
CG90LSGDT 90V 20KA 2 POLE SMD |
0 |
|
Datasheet |
Axial Cylinder, Radial SMT Bend | CG | Tape & Reel (TR) | Active | 90 V | 20000A (20kA) | - | 2 | No | Surface Mount |
|
|
GTCS28-501M-R20-2GDT 500V 20KA 2 POLE SMD |
0 |
|
Datasheet |
2-SMD Cylinder Square End | GTC | Tape & Reel (TR) | Active | 500 V | 20000A (20kA) | ±20% | 2 | No | Surface Mount |
|
|
SL1021A230XGDT 230V 10KA 3 POLE TH |
0 |
|
Datasheet |
Axial Cylinder, 3 Lead (T-Shape) | SL1021A | Tray | Active | 230 V | 10000A (10kA) | - | 3 | No | Through Hole |
|
|
SL1021A500XGDT 500V 10KA 3 POLE TH |
0 |
|
Datasheet |
Axial Cylinder, 3 Lead (T-Shape) | SL1021A | Tray | Active | 500 V | 10000A (10kA) | - | 3 | No | Through Hole |
|
SL1021A500YGDT 500V 10KA 3 POLE TH |
0 |
|
Datasheet |
Axial Cylinder, 3 Lead (Radial Bend) | SL1021A | Tray | Active | 500 V | 10000A (10kA) | - | 3 | No | Through Hole |
|
SL1003A260RFGDT 260V 10KA 3 POLE TH |
0 |
|
Datasheet |
Axial Cylinder, 3 Lead (Radial Bend) | SL1003A | Tray | Active | 260 V | 10000A (10kA) | - | 3 | Yes | Through Hole |
|
|
SL1003A350RFGDT 350V 10KA 3 POLE TH |
0 |
|
Datasheet |
Axial Cylinder, 3 Lead (Radial Bend) | SL1003A | Tray | Active | 350 V | 10000A (10kA) | - | 3 | Yes | Through Hole |
