Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTSD25F-100M10UH SMD SHLDED POWER INDUCTOR |
10 |
|
Datasheet |
CTSD25F | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.8 A | 1.27A | Shielded | 103mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.217" W (5.50mm x 5.50mm) | 0.110" (2.80mm) |
|

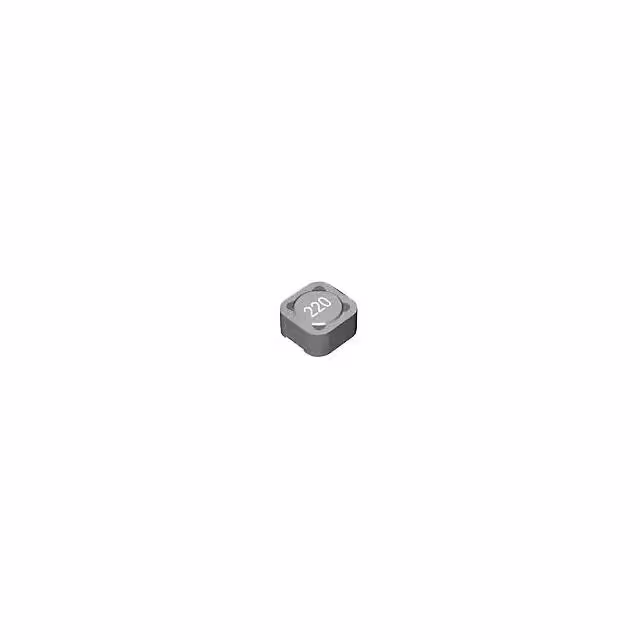

CTCDRH74F-270M27UH SMD SHIELDED POWER INDUCTOR |
10 |
|
Datasheet |
CTCDRH74F | Nonstandard | Tape & Reel (TR) | Active | - | - | 27 µH | ±20% | - | 1.1A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
CTCDRH74F-101M100UH SMD SHIELDED POWR INDUCTOR |
10 |
|
Datasheet |
CTCDRH74F | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | - | 600mA | Shielded | 610mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
CTCDRH74F-181M180UH SMD SHIELDED POWR INDUCTOR |
10 |
|
Datasheet |
CTCDRH74F | Nonstandard | Tape & Reel (TR) | Active | - | - | 180 µH | ±20% | - | 420mA | Shielded | 980mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
CTCDRH74F-330M33UH SMD SHIELDED POWER INDUCTOR |
10 |
|
Datasheet |
CTCDRH74F | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | - | 960mA | Shielded | 170mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
CTCDRH74F-820M82UH SMD SHIELDED POWER INDUCTOR |
10 |
|
Datasheet |
CTCDRH74F | Nonstandard | Tape & Reel (TR) | Active | - | - | 82 µH | ±20% | - | 610mA | Shielded | 430mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
CTCDRH74F-821M820UH SMD SHIELDED POWR INDUCTOR |
10 |
|
Datasheet |
CTCDRH74F | Nonstandard | Tape & Reel (TR) | Active | - | - | 820 µH | ±20% | - | 200mA | Shielded | 5.2Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
CTMMP5026F-3R3MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 3.3 µH | ±20% | 29 A | - | Shielded | 6.8mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.264" (6.70mm) |
|
|
CTMMP5026F-2R2MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 2.2 µH | ±20% | 33 A | - | Shielded | 4.2mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.264" (6.70mm) |
|
|
CTMMP5026F-220MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 22 µH | ±20% | 8 A | - | Shielded | 45mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.264" (6.70mm) |
|
|
CTMMP5026F-8R2MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 8.2 µH | ±20% | 16 A | - | Shielded | 16.6mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.264" (6.70mm) |
|
|
CTMMP5026F-5R6MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 5.6 µH | ±20% | 24 A | - | Shielded | 11.5mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.264" (6.70mm) |
|
|
CTMMP5026F-8R2NSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 8.2 µH | ±30% | 16 A | - | Shielded | 16.6mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.264" (6.70mm) |
|
|
CTCDRH74F-470M47UH SMD SHIELDED POWER INDUCTOR |
9 |
|
Datasheet |
CTCDRH74F | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | - | 880mA | Shielded | 260mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
CTMMP5026F-100MSMD Shielded Power Inductor |
7 |
|
Datasheet |
- | - | Bulk | Active | - | - | 10 µH | ±20% | 15.5 A | - | Shielded | 18.5mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.264" (6.70mm) |
|
CT916CYF-270MSMD SHIELDED POWER INDUCTOR |
5 |
|
Datasheet |
ct916cyf | - | Tape & Reel (TR) | Active | - | - | 27 µH | ±20% | - | - | - | 82mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CTCDRH74F-121M120UH SMD SHIELDED POWR INDUCTOR |
5 |
|
Datasheet |
CTCDRH74F | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 µH | ±20% | - | 520mA | Shielded | 660mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
CTCDRH74F-220M22UH SMD SHIELDED POWER INDUCTOR |
5 |
|
Datasheet |
CTCDRH74F | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | - | 1.2A | Shielded | 110mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
CT916CYF-470MSMD SHIELDED POWER INDUCTOR |
2 |
|
Datasheet |
ct916cyf | - | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | - | - | - | 17.8mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
CT187LYF-101KRAD LEADED FIXED SHLDED INDUCTOR |
20 |
|
Datasheet |
ct187lyf | - | Bulk | Active | - | - | 100 µH | ±10% | - | - | - | 2Ohm | - | 5.3MHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
