Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
252010CDMCCDS-R33MCFIXED IND SMD |
0 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CLQ4D10-6R8NCFIXED IND SMD |
0 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
201610CDMCCDS-R24MCFIXED IND SMD |
0 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SMAC15-10G-RCFIXED IND 12.55NH 1.6A 14MOHM SM |
0 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 12.55 nH | ±2% | 1.6 A | - | Unshielded | 14mOhm Max | 100 @ 800MHz | 4.6GHz | - | -40°C ~ 125°C | 800 MHz | - | Surface Mount | - | 0.159" L x 0.054" W (4.04mm x 1.37mm) | 0.061" (1.55mm) |
|
SMAC25-47J-RCFIXED IND 47NH 3A 5.6 MOHM SMD |
0 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 47 nH | ±5% | 3 A | - | Unshielded | 5.6mOhm Max | 100 @ 150MHz | 2.1GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|
PCSV65-150M-RCFIXED IND 15UH 2.2A 6 MOHM SMD |
0 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 2.2 A | 3.4A | Shielded | 6mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
PCSV80-220M-RCFIXED IND 22UH 2.6A 80 MOHM SMD |
0 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 2.6 A | 2.8A | Shielded | 80mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
FWPQ2817H-150KFIXED IND 15UH 28A 2.82 MOHM TH |
0 |
|
Datasheet |
- | Nonstandard | Tray | Active | Wirewound | - | 15 µH | ±10% | 28 A | 21.9A | Shielded | 2.82mOhm | - | 16MHz | - | -40°C ~ 85°C | 500 kHz | - | Through Hole | - | 1.102" L x 0.760" W (28.00mm x 19.30mm) | 0.906" (23.00mm) |
|

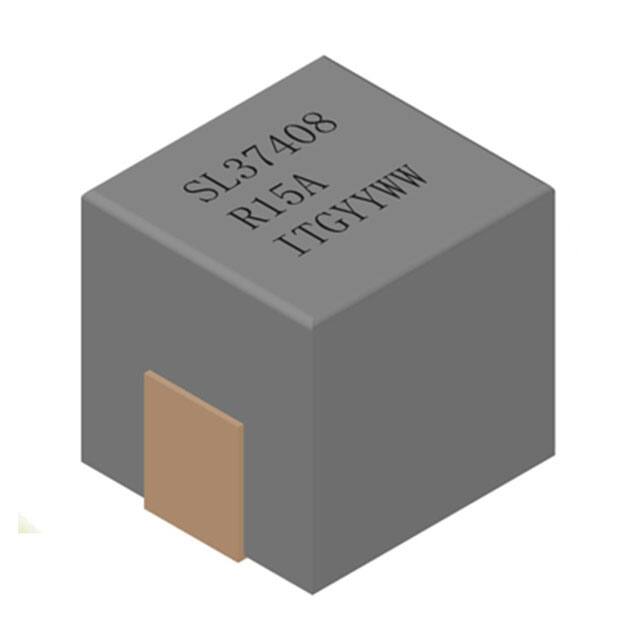

SL37408A-R15KHFFIXED IND 150NH 60A 0.23MOHM SMD |
0 |
|
Datasheet |
SL37408 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±10% | 60 A | 78A | - | 0.23mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | 2-SMD | 0.370" L x 0.315" W (9.41mm x 8.00mm) | 0.394" (10.00mm) |
|
|
AIUR-02H-222JFIXED IND 2.2MH 100MA 3 OHM TH |
0 |
|
- |
AIUR-02H | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 2.2 mH | ±5% | 100 mA | 200mA | Unshielded | 3Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.335" Dia (8.50mm) | 0.472" (12.00mm) |
|
|
AIUR-02H-1R0NFIXED IND 1UH 3.5A 21 MOHM TH |
0 |
|
Datasheet |
AIUR-02H | Radial, Vertical Cylinder | Bulk | Active | - | Ferrite | 1 µH | ±30% | 3.5 A | 8.6A | Unshielded | 21mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.335" Dia (8.50mm) | 0.472" (12.00mm) |
|
|
AIUR-02H-270JFIXED IND 27UH 1.3A 72 MOHM TH |
0 |
|
- |
AIUR-02H | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 27 µH | ±5% | 1.3 A | 2.2A | Unshielded | 72mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.335" Dia (8.50mm) | 0.472" (12.00mm) |
|
|
AIUR-02H-120JFIXED IND 12UH 1.9A 49 MOHM TH |
0 |
|
- |
AIUR-02H | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 12 µH | ±5% | 1.9 A | 3.1A | Unshielded | 49mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.335" Dia (8.50mm) | 0.472" (12.00mm) |
|
|
AIUR-02H-151JFIXED IND 150UH 610MA 270MOHM TH |
0 |
|
- |
AIUR-02H | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 150 µH | ±5% | 610 mA | 1.15A | Unshielded | 270mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.335" Dia (8.50mm) | 0.472" (12.00mm) |
|
|
AIUR-02H-390JFIXED IND 39UH 1.1A 101 MOHM TH |
0 |
|
- |
AIUR-02H | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 39 µH | ±5% | 1.1 A | 1.85A | Unshielded | 101mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.335" Dia (8.50mm) | 0.472" (12.00mm) |
|
|
AIUR-02H-330JFIXED IND 33UH 1.1A 80 MOHM TH |
0 |
|
- |
AIUR-02H | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 33 µH | ±5% | 1.1 A | 2.05A | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.335" Dia (8.50mm) | 0.472" (12.00mm) |
|
|
AIUR-02H-271JFIXED IND 270UH 410MA 390MOHM TH |
0 |
|
- |
AIUR-02H | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 270 µH | ±5% | 410 mA | 900mA | Unshielded | 390mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.335" Dia (8.50mm) | 0.472" (12.00mm) |
|
|
AIUR-02H-821JFIXED IND 820UH 240MA 1.03OHM TH |
0 |
|
- |
AIUR-02H | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 820 µH | ±5% | 240 mA | 560mA | Unshielded | 1.03Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.335" Dia (8.50mm) | 0.472" (12.00mm) |
|
|
AIUR-02H-681JFIXED IND 680UH 270MA 940MOHM TH |
0 |
|
- |
AIUR-02H | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 680 µH | ±5% | 270 mA | 590mA | Unshielded | 940mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.335" Dia (8.50mm) | 0.472" (12.00mm) |
|
|
AIUR-02H-101JFIXED IND 100UH 720MA 210MOHM TH |
0 |
|
- |
AIUR-02H | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 100 µH | ±5% | 720 mA | 1.4A | Unshielded | 210mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.335" Dia (8.50mm) | 0.472" (12.00mm) |
