Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

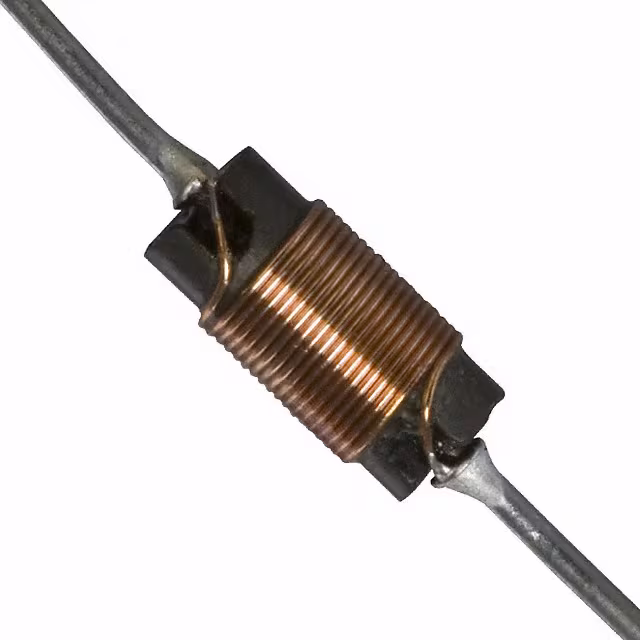

70F226AI-RCFIXED IND 2.2UH 1.132A 156MOHM Bourns Inc. |
0 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 2.2 µH | ±10% | 1.132 A | - | Unshielded | 156mOhm Max | 43 @ 7.9MHz | 87MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
|

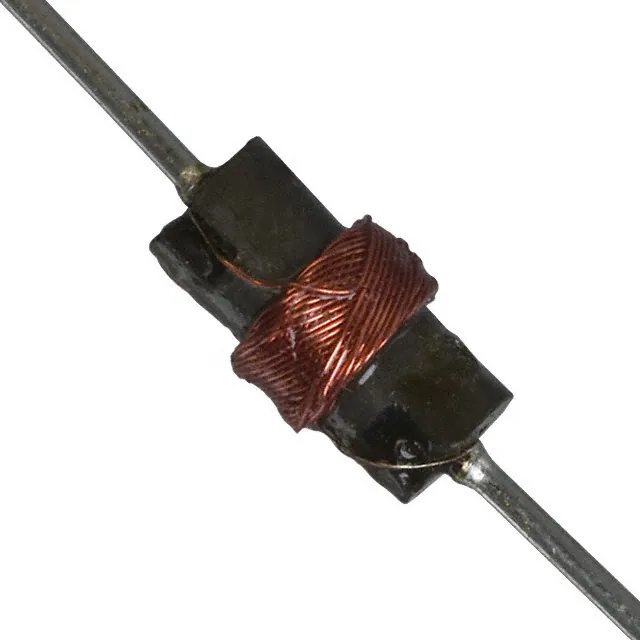

70F335AI-RCFIXED IND 33UH 208MA 2.76 OHM TH Bourns Inc. |
0 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 33 µH | ±5% | 208 mA | - | Unshielded | 2.76Ohm Max | 50 @ 2.5MHz | 10MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | - |
|

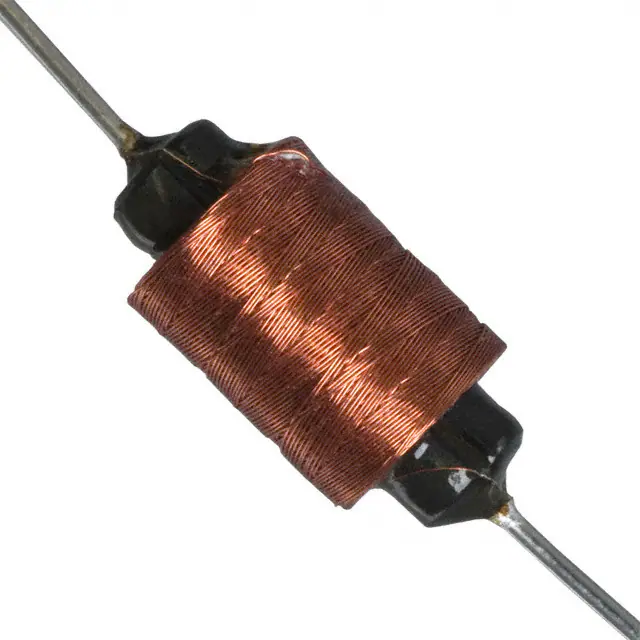

70F332AF-RCFIXED IND 33MH 43MA 134 OHM TH Bourns Inc. |
0 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 33 mH | ±5% | 43 mA | - | Unshielded | 134Ohm Max | 61 @ 79kHz | 232kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.350" Dia x 0.630" L (8.89mm x 16.00mm) | - |
|

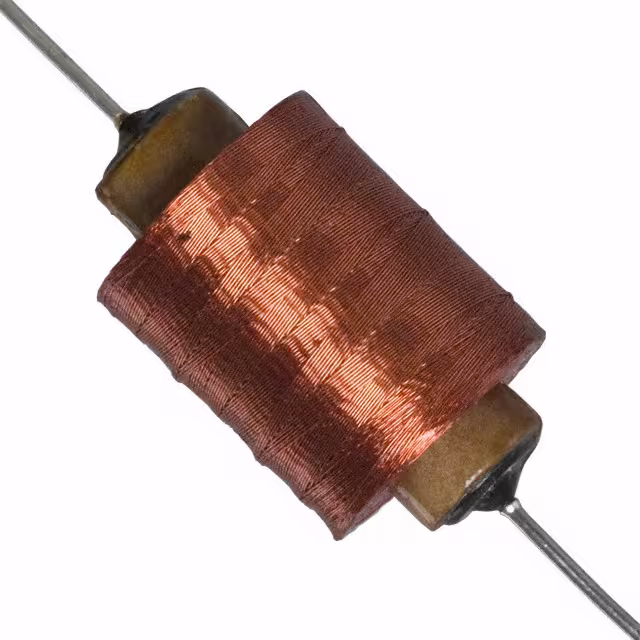

70F331AF-RCFIXED IND 330MH 34MA 540 OHM TH Bourns Inc. |
0 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 330 mH | ±5% | 34 mA | - | Unshielded | 540Ohm Max | 54 @ 25kHz | 60kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.580" Dia x 0.880" L (14.73mm x 22.35mm) | - |
|

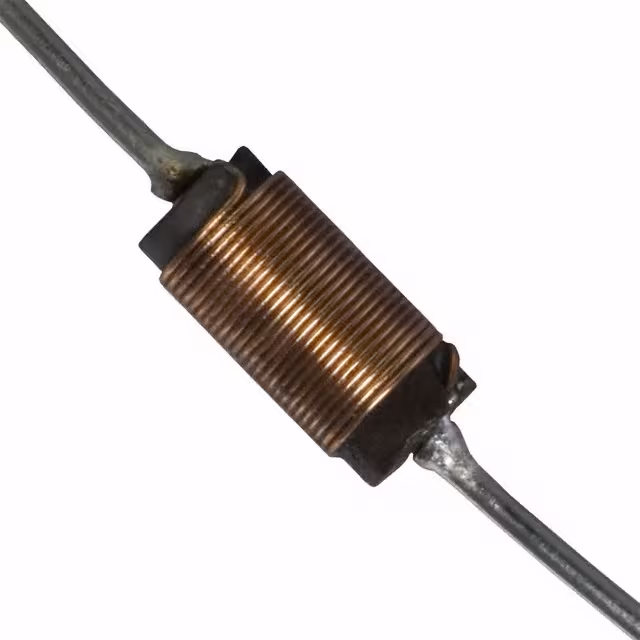

70F336AI-RCFIXED IND 3.3UH 912MA 240MOHM TH Bourns Inc. |
0 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 3.3 µH | ±10% | 912 mA | - | Unshielded | 240mOhm Max | 40 @ 7.9MHz | 66MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.150" Dia x 0.250" L (3.81mm x 6.35mm) | - |
|

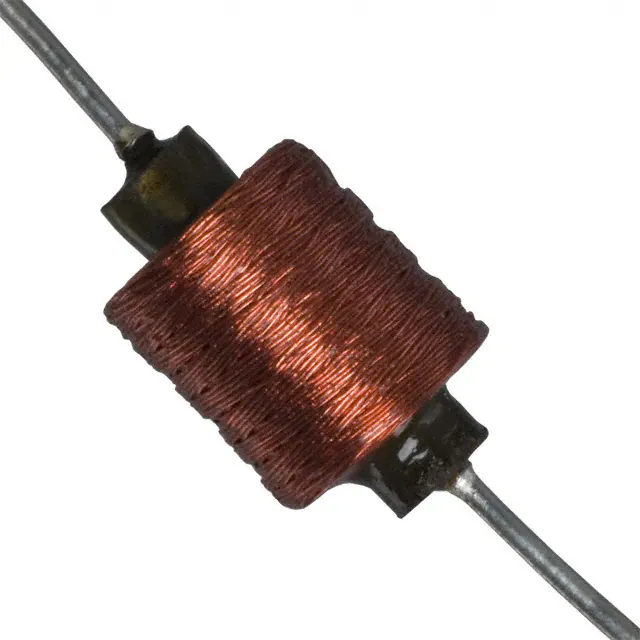

70F473AI-RCFIXED IND 4.7MH 48MA 64.8 OHM TH Bourns Inc. |
0 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 4.7 mH | ±5% | 48 mA | - | Unshielded | 64.8Ohm Max | 49 @ 250kHz | 680kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.280" Dia x 0.380" L (7.11mm x 9.65mm) | - |
|

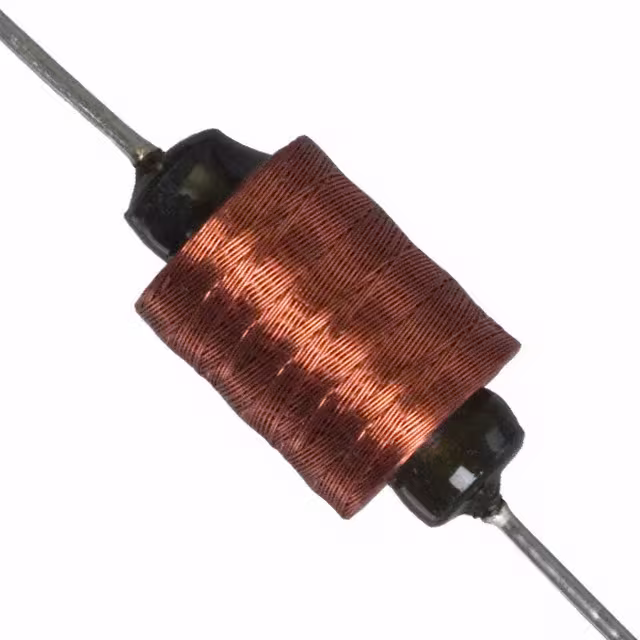

70F472AF-RCFIXED IND 47MH 38MA 168 OHM TH Bourns Inc. |
0 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 47 mH | ±5% | 38 mA | - | Unshielded | 168Ohm Max | 57 @ 79kHz | 206kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.380" Dia x 0.630" L (9.65mm x 16.00mm) | - |
|

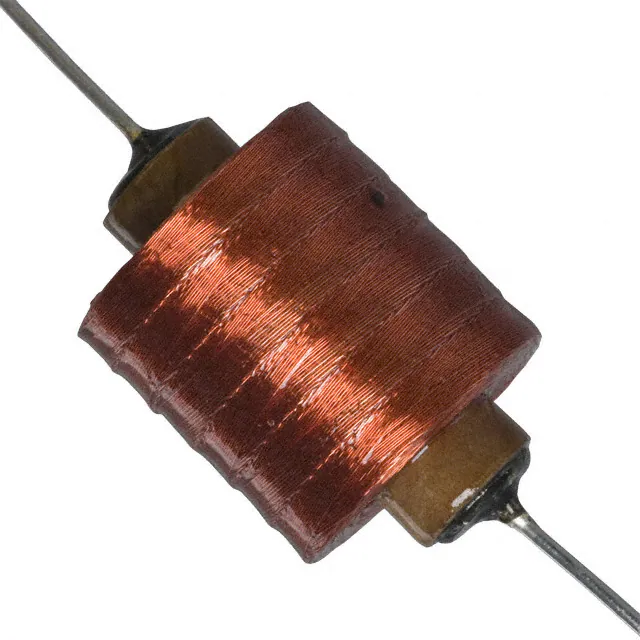

70F471AF-RCFIXED IND 470MH 30MA 704 OHM TH Bourns Inc. |
0 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 470 mH | ±5% | 30 mA | - | Unshielded | 704Ohm Max | 55 @ 25kHz | 54kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.610" Dia x 0.880" L (15.49mm x 22.35mm) | - |
|

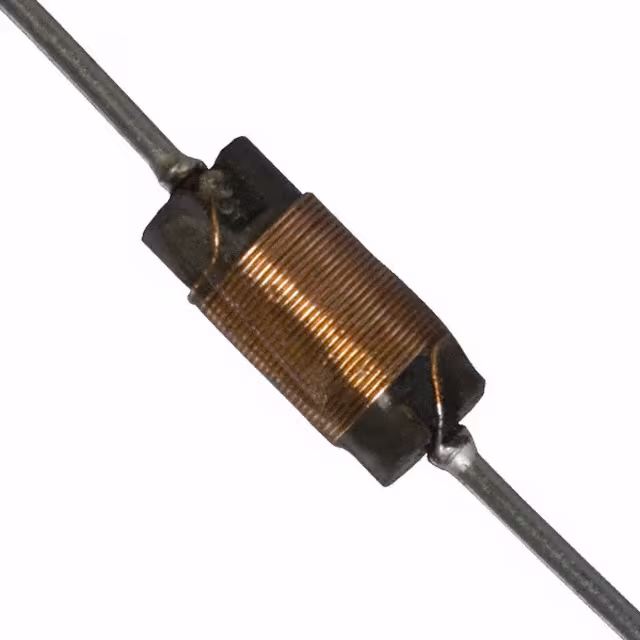

70F476AI-RCFIXED IND 4.7UH 661MA 457MOHM TH Bourns Inc. |
0 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 4.7 µH | ±10% | 661 mA | - | Unshielded | 457mOhm Max | 43 @ 7.9MHz | 53MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.150" Dia x 0.250" L (3.81mm x 6.35mm) | - |
|
70F683AI-RCFIXED IND 6.8MH 43MA 78 OHM TH Bourns Inc. |
0 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 6.8 mH | ±5% | 43 mA | - | Unshielded | 78Ohm Max | 51 @ 250kHz | 640kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.310" Dia x 0.380" L (7.87mm x 9.65mm) | - |
