Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XFHCL11-4R7MFIXED IND 4.7UH 9A 16.5 MOHM SMD XFMRS |
500 |
|
Datasheet |
XFHCL11 | - | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 9 A | 17A | Shielded | 16.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
XFHCL11-R36MFIXED IND 360NH 32A 1.4 MOHM SMD XFMRS |
500 |
|
Datasheet |
XFHCL11 | - | Tape & Reel (TR) | Active | Molded | - | 360 nH | ±20% | 32 A | 60A | Shielded | 1.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
XFHCL11-R56MFIXED IND 560NH 28A 1.8 MOHM SMD XFMRS |
500 |
|
Datasheet |
XFHCL11 | - | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 28 A | 49A | Shielded | 1.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
XFHCL11-5R6MFIXED IND 5.6UH 8.5A 19 MOHM SMD XFMRS |
500 |
|
Datasheet |
XFHCL11 | - | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 8.5 A | 16A | Shielded | 19mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
XFHCL11-2R2MFIXED IND 2.2UH 12A 9 MOHM SMD XFMRS |
500 |
|
Datasheet |
XFHCL11 | - | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 12 A | 25.5A | Shielded | 9mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
XFHCL11-1R0MFIXED IND 1UH 17.5A 4.1 MOHM SMD XFMRS |
800 |
|
Datasheet |
XFHCL11 | - | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 17.5 A | 36A | Shielded | 4.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
XFHCL11-1R5MFIXED IND 1.5UH 15A 5.8 MOHM SMD XFMRS |
500 |
|
Datasheet |
XFHCL11 | - | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 15 A | 27.5A | Shielded | 5.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
XFHCL4-100MFIXED IND 10UH 9A 25.5 MOHM SMD XFMRS |
500 |
|
Datasheet |
XFHCL4 | - | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 9 A | 16A | Shielded | 25.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
|
XFHCL4-4R7MFIXED IND 4.7UH 12A 15 MOHM SMD XFMRS |
500 |
|
Datasheet |
XFHCL4 | - | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 12 A | 27A | Shielded | 15mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
|

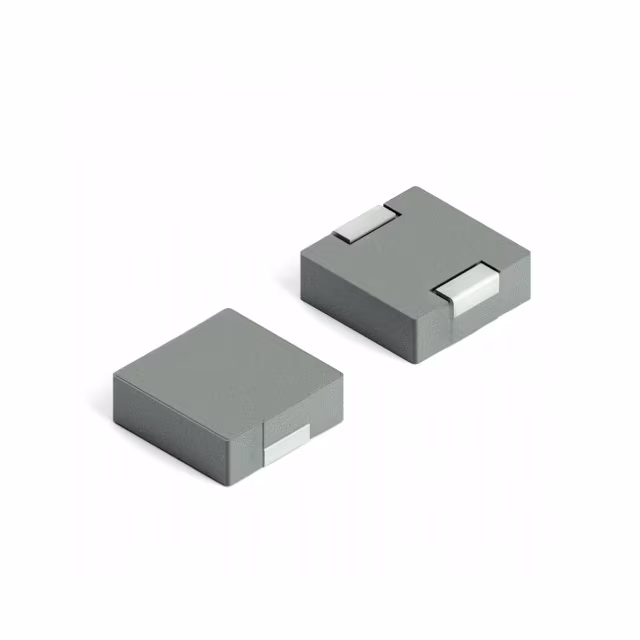

XFHCL4-3R3MFIXED IND 3.3UH 15A 9.2 MOHM SMD XFMRS |
250 |
|
Datasheet |
XFHCL4 | - | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 15 A | 32A | Shielded | 9.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
