Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-0,95mm.jpg)
|
LK2125R33M-TFIXED IND 330NH 250MA 400MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 330 nH | ±20% | 250 mA | - | Unshielded | 400mOhm Max | 20 @ 25MHz | 145MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
LK2125R39K-TFIXED IND 390NH 200MA 450MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 390 nH | ±10% | 200 mA | - | Unshielded | 450mOhm Max | 25 @ 25MHz | 135MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
LK2125R47K-TFIXED IND 470NH 200MA 500MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 470 nH | ±10% | 200 mA | - | Unshielded | 500mOhm Max | 25 @ 25MHz | 125MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LK2125R56K-TFIXED IND 560NH 150MA 550MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 560 nH | ±10% | 150 mA | - | Unshielded | 550mOhm Max | 25 @ 25MHz | 115MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LK2125R56M-TFIXED IND 560NH 150MA 550MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 560 nH | ±20% | 150 mA | - | Unshielded | 550mOhm Max | 25 @ 25MHz | 115MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LK2125R68K-TFIXED IND 680NH 150MA 600MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 680 nH | ±10% | 150 mA | - | Shielded | 600mOhm Max | 25 @ 25MHz | 105MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LK2125R68M-TFIXED IND 680NH 150MA 600MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 680 nH | ±20% | 150 mA | - | Unshielded | 600mOhm Max | 25 @ 25MHz | 105MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
-1,45mm.jpg)
|
LK2125R82K-TFIXED IND 820NH 150MA 650MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
LK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 820 nH | ±10% | 150 mA | - | Shielded | 650mOhm Max | 25 @ 25MHz | 100MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|

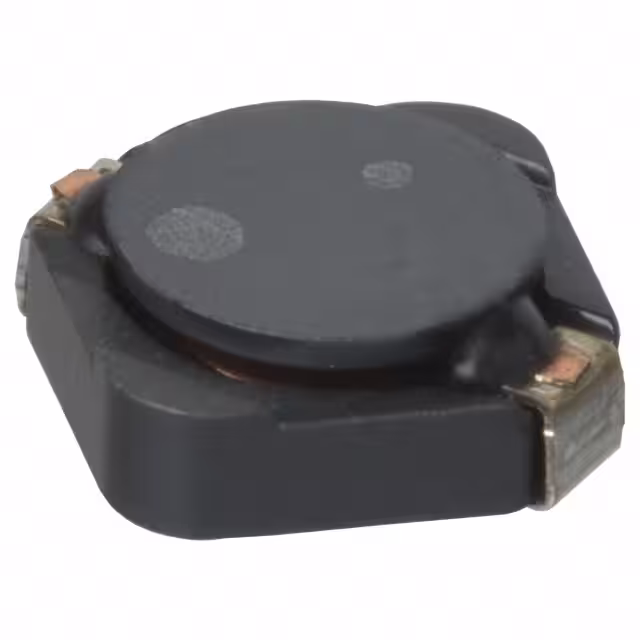

NP04SZB3R3NFIXED IND 3.3UH 2A 60 MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
N, P Type | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 3.3 µH | ±30% | 2 A | 2.2A | Shielded | 60mOhm Max | - | 30MHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

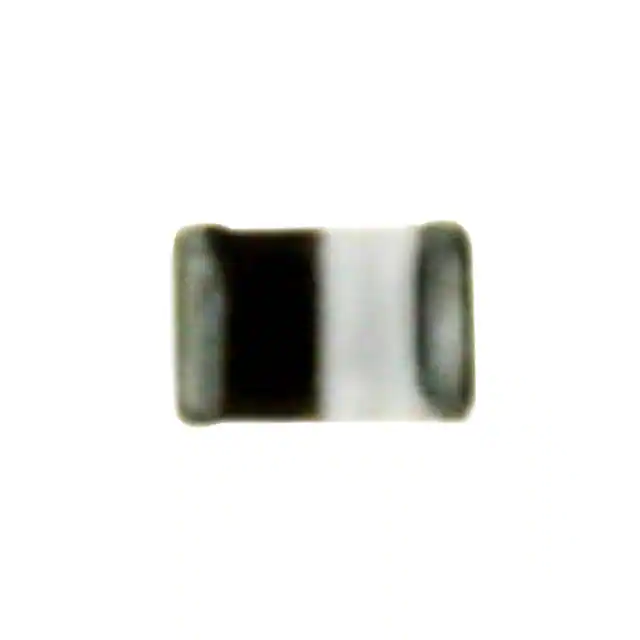

AQ10515NJ-TFIXED IND 15NH 360MA 450MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
AQ | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 15 nH | ±5% | 360 mA | - | Unshielded | 450mOhm Max | 8 @ 100MHz | 2.3GHz | - | -55°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.50mm) |
