Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-0,90mm.jpg)
|

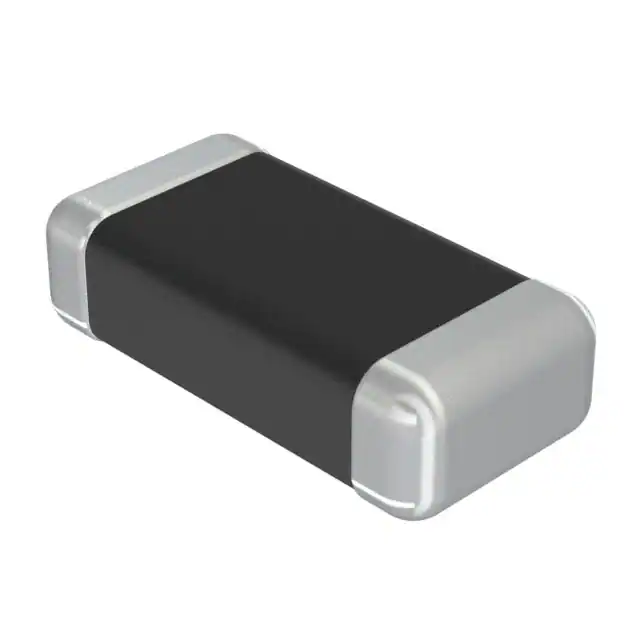

CKP32162R2M-TFIXED IND 2.2UH 900MA 140MOHM SM Taiyo Yuden |
0 |
|
- |
CK, P Type | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 2.2 µH | ±20% | 900 mA | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.90mm) |
|
|
CKP32163R3M-TFIXED IND 3.3UH 800MA 160MOHM SM Taiyo Yuden |
0 |
|
- |
CK, P Type | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 3.3 µH | ±20% | 800 mA | - | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.90mm) |
|
|
CKP32164R7M-TFIXED IND 4.7UH 700MA 200MOHM SM Taiyo Yuden |
0 |
|
- |
CK, P Type | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 4.7 µH | ±20% | 700 mA | - | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.90mm) |
-0,33mm.jpg)
|
HK06032N0S-TFIXED IND 2NH 380MA 170 MOHM SMD Taiyo Yuden |
0 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 2 nH | ±0.3nH | 380 mA | - | Unshielded | 170mOhm Max | 4 @ 100MHz | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HK06032N4S-TFIXED IND 2.4NH 350MA 200MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 2.4 nH | ±0.3nH | 350 mA | - | Unshielded | 200mOhm Max | 4 @ 100MHz | 8.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HK06033N6S-TFIXED IND 3.6NH 310MA 250MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 3.6 nH | ±0.3nH | 310 mA | - | Unshielded | 250mOhm Max | 5 @ 100MHz | 6.4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HK06034N3S-TFIXED IND 4.3NH 280MA 300MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 4.3 nH | ±0.3nH | 280 mA | - | Unshielded | 300mOhm Max | 5 @ 100MHz | 5.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HK06035N1S-TFIXED IND 5.1NH 270MA 330MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 5.1 nH | ±0.3nH | 270 mA | - | Unshielded | 330mOhm Max | 5 @ 100MHz | 5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HK06036N2S-TFIXED IND 6.2NH 250MA 380MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 6.2 nH | ±0.3nH | 250 mA | - | Unshielded | 380mOhm Max | 5 @ 100MHz | 4.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HK06037N5J-TFIXED IND 7.5NH 240MA 410MOHM SM Taiyo Yuden |
0 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 7.5 nH | ±5% | 240 mA | - | Unshielded | 410mOhm Max | 5 @ 100MHz | 3.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
