Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NRS8030T220MJGJFIXED IND 22UH 1.9A 91 MOHM SMD Taiyo Yuden |
4,303 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.9 A | 1.75A | Shielded | 91mOhm Max | - | 16MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
NRS8040T3R6NJGJFIXED IND 3.6UH 4.9A 19.5MOHM SM Taiyo Yuden |
2,052 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.6 µH | ±30% | 4.9 A | 6.4A | Shielded | 19.5mOhm Max | - | 34MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
NRS8030T150MJGJFIXED IND 15UH 2.2A 78 MOHM SMD Taiyo Yuden |
85,608 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.2 A | 2A | Shielded | 78mOhm Max | - | 20MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
|
NRS8030T100MJGJFIXED IND 10UH 3A 42.9 MOHM SMD Taiyo Yuden |
47,463 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3 A | 2.4A | Shielded | 42.9mOhm Max | - | 27MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
|
NRS8030T2R2NJGJFIXED IND 2.2UH 4.8A 19.5MOHM SM Taiyo Yuden |
41,434 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 4.8 A | 4.9A | Shielded | 19.5mOhm Max | - | 60MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|

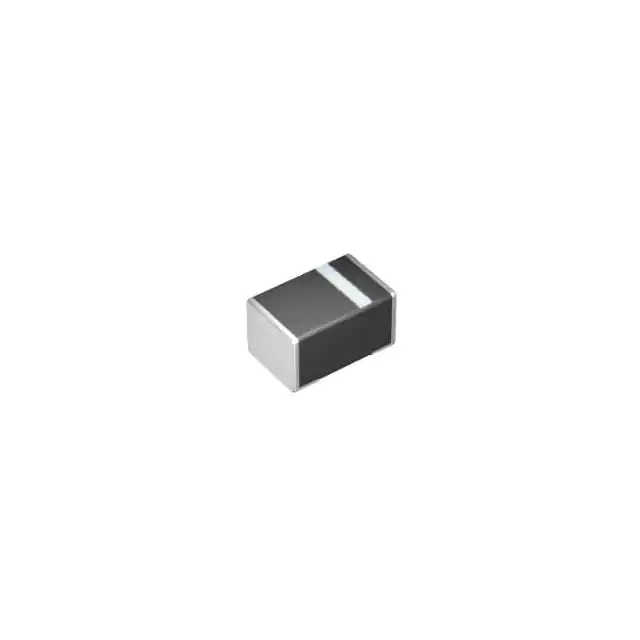

LSCNB1005EET1R0MBFIXED IND 1UH 800MA 300 MOHM SMD Taiyo Yuden |
10,011 |
|
Datasheet |
LSCN | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 1 µH | ±20% | 800 mA | 1A | Unshielded | 300mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
NRS8030T4R7MJGJFIXED IND 4.7UH 4A 28.6 MOHM SMD Taiyo Yuden |
6,726 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4 A | 3.6A | Shielded | 28.6mOhm Max | - | 40MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
|
NRS8030T330MJGJFIXED IND 33UH 1.5A 156 MOHM SMD Taiyo Yuden |
2,933 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.5 A | 1.3A | Shielded | 156mOhm Max | - | 13MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
|
NRS8030T3R3MJGJFIXED IND 3.3UH 4.3A 19 MOHM SMD Taiyo Yuden |
2,215 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 4.3 A | 4.2A | Shielded | 19mOhm | - | 50MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
LSCNB1005EETR47MBFIXED IND 470NH 1.2A 140MOHM SMD Taiyo Yuden |
17,953 |
|
Datasheet |
LSCN | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 470 nH | ±20% | 1.2 A | 1.2A | Shielded | 140mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
