Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

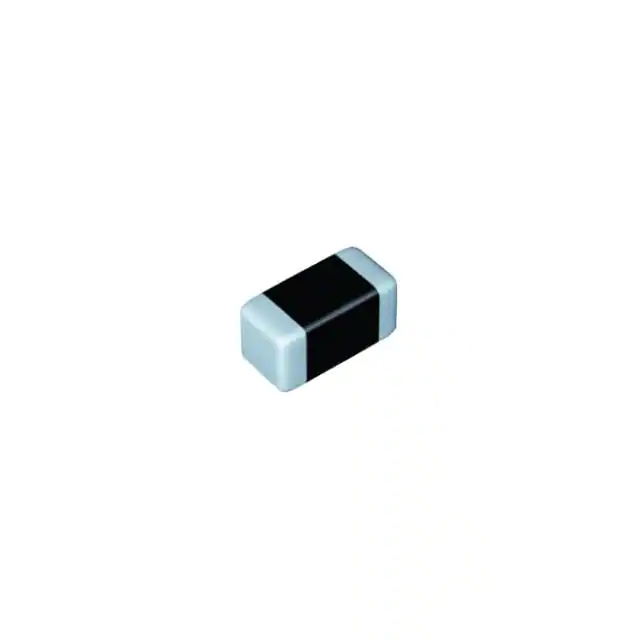

LSQPA322525T101MRFIXED IND 100UH 340MA 1.82OHM SM Taiyo Yuden |
4,024 |
|
Datasheet |
LSQP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 340 mA | 270mA | Unshielded | 1.82Ohm Max | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
-1,45mm.jpg)
|
CB2012T100KRVFIXED IND 10UH 300MA 650MOHM SMD Taiyo Yuden |
3,288 |
|
Datasheet |
CB | 0805 (2012 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 300 mA | 200mA | Unshielded | 650mOhm Max | - | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
-BR-Series.jpg)
|
BRL2012T2R2MFIXED IND 2.2UH 550MA 390MOHM SM Taiyo Yuden |
2,660 |
|
Datasheet |
BR, L Type | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 550 mA | 600mA | Unshielded | 390mOhm Max | - | 200MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
NRS3015T2R2MNGHFIXED IND 2.2UH 1.5A 58 MOHM SMD Taiyo Yuden |
14,642 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.5 A | 1.48A | Shielded | 58mOhm Max | - | 64MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
NRS3015T4R7MNGHFIXED IND 4.7UH 1.04A 120MOHM SM Taiyo Yuden |
10,086 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.04 A | 1.02A | Shielded | 120mOhm Max | - | 40MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
NRS5020T220MMGJFIXED IND 22UH 1A 312 MOHM SMD Taiyo Yuden |
6,897 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1 A | 900mA | Shielded | 312mOhm Max | - | 17MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
|
|
NRH3012T4R7MNVFIXED IND 4.7UH 1.06A 156MOHM SM Taiyo Yuden |
5,442 |
|
Datasheet |
NR, H Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.06 A | 1A | Shielded | 156mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
NRS5020T1R0NMGJFIXED IND 1UH 3.6A 25.2 MOHM SMD Taiyo Yuden |
4,202 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 3.6 A | 4A | Shielded | 25.2mOhm Max | - | 81MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
|

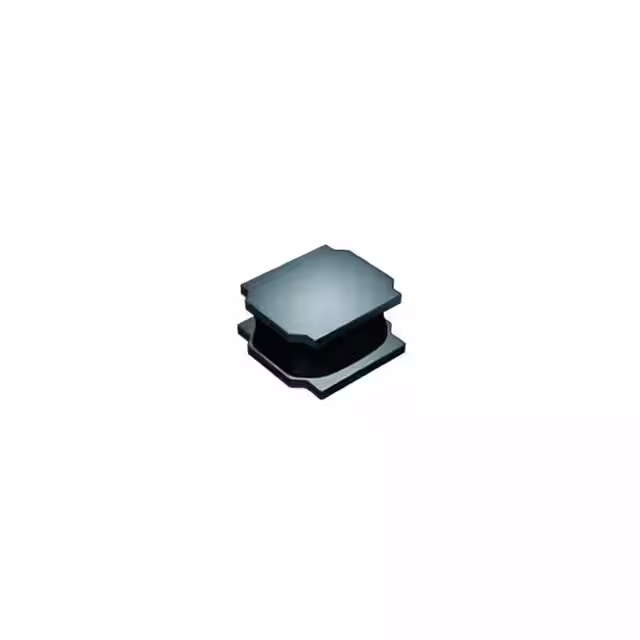

LSXND3030QKT100MNGFIXED IND 10UH 700MA 264MOHM SMD Taiyo Yuden |
2,970 |
|
Datasheet |
LSXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 710 mA | 700mA | Shielded | 264mOhm Max | - | 28MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

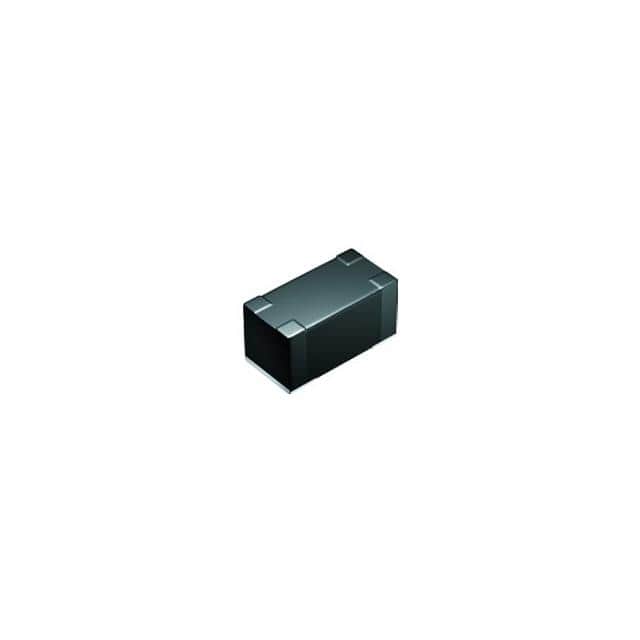

LSQPB201214T2R2MDFIXED IND 2.2UH 1A 143 MOHM SMD Taiyo Yuden |
2,027 |
|
Datasheet |
LSQP | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 1 A | 1.1A | Unshielded | 143mOhm Max | - | 350MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
