Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPIAIG-QLR4020-R68M-TFIXED IND 680NH 12A 8.2 MOHM SMD Abracon LLC |
0 |
|
Datasheet |
ASPIAIG-QLR4020 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 12 A | 10A | Shielded | 8.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
ASPI-1040HI-R16MFIXED IND 160NH 40A 0.65MOHM SMD Abracon LLC |
0 |
|
Datasheet |
ASPI-1040HI | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Ferrite | 160 nH | ±20% | 40 A | 75A | Unshielded | 0.65mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.167" (4.25mm) |
|
|
ASPI-0403S-103MFIXED IND 10MH 20MA 32.8 OHM SMD Abracon LLC |
0 |
|
Datasheet |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ASPI-0403S-822MFIXED IND 8.2MH 30MA 29.81 OHM Abracon LLC |
0 |
|
Datasheet |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

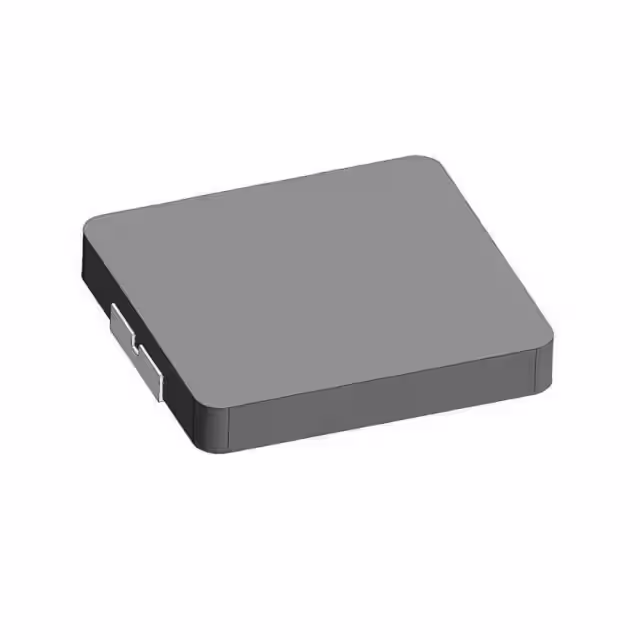

AMPLA7012Q-1R5MTFIXED IND 1.5UH 4.5A 40 MOHM SMD Abracon LLC |
0 |
|
Datasheet |
AMPLA7012Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1.5 µH | ±20% | 4.5 A | 6.5A | Shielded | 40mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.047" (1.20mm) |
|
|
AMPLA7012Q-100MTFIXED IND 10UH 1.8A 290 MOHM SMD Abracon LLC |
0 |
|
Datasheet |
AMPLA7012Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 10 µH | ±20% | 1.8 A | 2.5A | Shielded | 290mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.047" (1.20mm) |
|
|
AMPLA7012Q-R68MTFIXED IND 680NH 7A 19 MOHM SMD Abracon LLC |
0 |
|
Datasheet |
AMPLA7012Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 680 nH | ±20% | 7 A | 9A | Shielded | 19mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.047" (1.20mm) |
|
|
AMPLA7012Q-3R3MTFIXED IND 3.3UH 3.2A 103MOHM SMD Abracon LLC |
0 |
|
Datasheet |
AMPLA7012Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 3.3 µH | ±20% | 3.2 A | 4A | Shielded | 103mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.047" (1.20mm) |
|

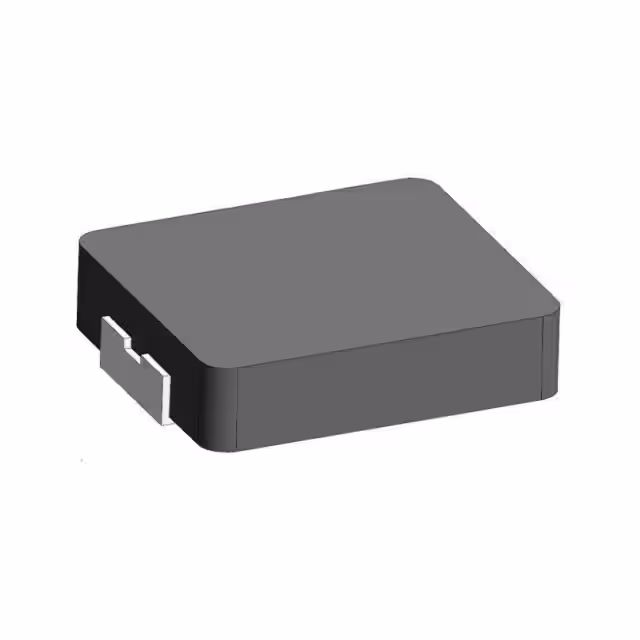

AMDLA4010Q-R47MTFIXED IND 470NH 8.5A 18.5MOHM SM Abracon LLC |
0 |
|
Datasheet |
AMDLA4010Q | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Molded | Metal | 470 nH | ±20% | 8.5 A | 11A | Shielded | 18.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.173" L x 0.157" W (4.40mm x 4.00mm) | 0.039" (1.00mm) |
|
|
AIUR-02H-222JFIXED IND 2.2MH 100MA 3 OHM TH Abracon LLC |
0 |
|
- |
AIUR-02H | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 2.2 mH | ±5% | 100 mA | 200mA | Unshielded | 3Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.335" Dia (8.50mm) | 0.472" (12.00mm) |
