Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL8405NLFIXED IND 4UH 22.4A 3.4 MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 4 µH | - | 22.4 A | - | Unshielded | 3.4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 1.280" L x 1.070" W (32.51mm x 27.18mm) | 0.510" (12.95mm) |
|

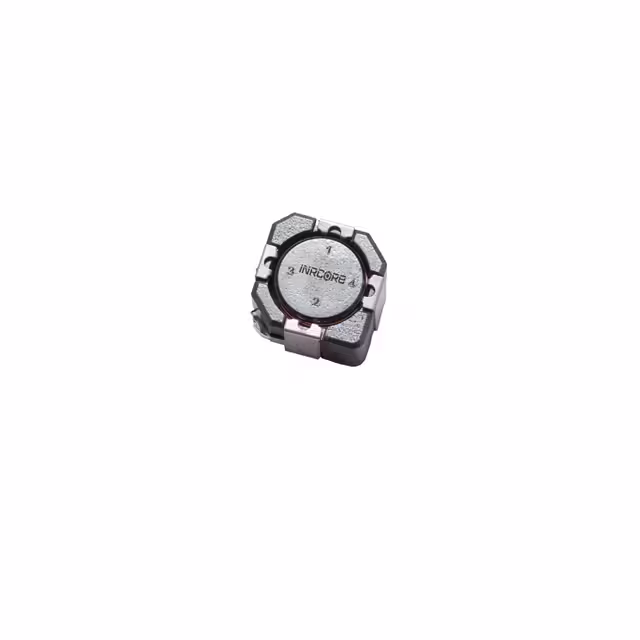

PL9202TFIXED IND 1.6UH 7.4A 7.9MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.6 µH | ±30% | 7.4 A | 8.8A | Shielded | 7.9mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
PL9209TFIXED IND 12UH 3.3A 37 MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 3.3 A | 3.7A | Shielded | 37mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
PL9214TFIXED IND 33UH 2.1A 94 MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 2.1 A | 2.2A | Shielded | 94mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
PL9225TFIXED IND 270UH 780MA 775MOHM SM iNRCORE, LLC |
0 |
|
Datasheet |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 270 µH | ±20% | 780 mA | 790mA | Shielded | 775mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
|
PL9228NLTFIXED IND 470UH 540MA 1.403 OHM iNRCORE, LLC |
0 |
|
Datasheet |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 µH | ±20% | 540 mA | 590mA | Shielded | 1.403Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|

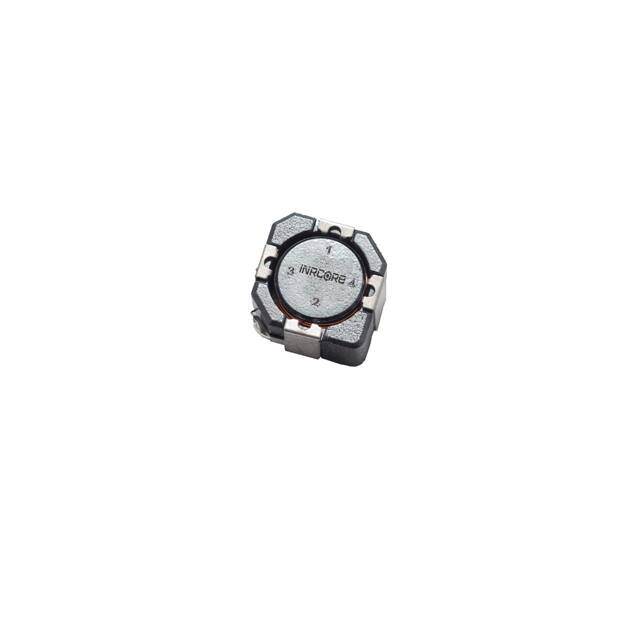

PL9229TFIXED IND 560UH 530MA 1.623 OHM iNRCORE, LLC |
0 |
|
Datasheet |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 560 µH | ±20% | 530 mA | 540mA | Shielded | 1.623Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
PL9230TFIXED IND 680UH 490MA 1.824 OHM iNRCORE, LLC |
0 |
|
Datasheet |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 680 µH | ±20% | 490 mA | 490mA | Shielded | 1.824Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
|
PL8913NLTFIXED IND 27UH 3.4A 45.9MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 27 µH | ±20% | 3.4 A | 3.4A | Shielded | 45.9mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
PL9231TFIXED IND 820UH 430MA 2.355 OHM iNRCORE, LLC |
0 |
|
Datasheet |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 820 µH | ±20% | 430 mA | 450mA | Shielded | 2.355Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
