Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL8403NLTFIXED IND 880NH 23.8A 3 MOHM SMD iNRCORE, LLC |
0 |
|
- |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 880 nH | - | 23.8 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.910" L x 0.700" W (23.11mm x 17.78mm) | 0.510" (12.95mm) |
|
PL8403TFIXED IND 880NH 23.8A 3 MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 880 nH | - | 23.8 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.910" L x 0.700" W (23.11mm x 17.78mm) | 0.510" (12.95mm) |
|
|
PL8404NLTFIXED IND 2.1UH 21A 2.5 MOHM SMD iNRCORE, LLC |
0 |
|
- |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 2.1 µH | - | 21 A | - | Unshielded | 2.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.910" L x 0.700" W (23.11mm x 17.78mm) | 0.510" (12.95mm) |
|

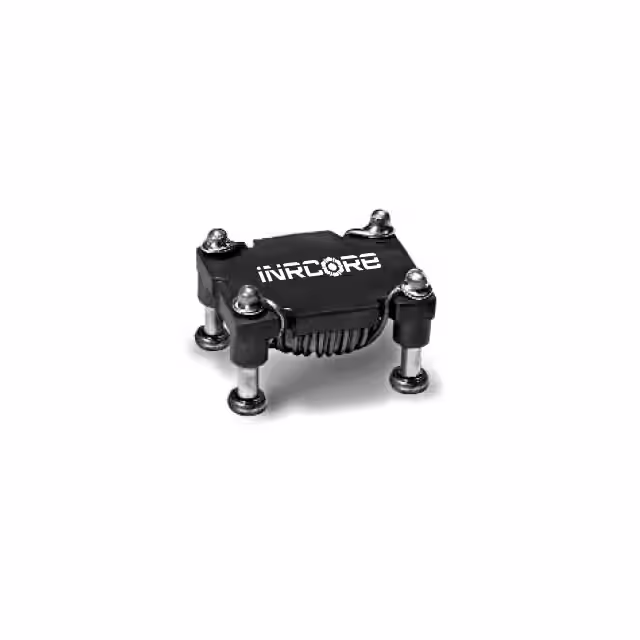

PL8404TFIXED IND 2.1UH 21A 2.5 MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 2.1 µH | - | 21 A | - | Unshielded | 2.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.910" L x 0.700" W (23.11mm x 17.78mm) | 0.510" (12.95mm) |
|
|
PL9217NLTFIXED IND 56UH 1.6A 157 MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 56 µH | ±20% | 1.6 A | 1.7A | Shielded | 157mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
|
PL8702NLTFIXED IND 5.9UH 8.1A 10.47 MOHM iNRCORE, LLC |
0 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 5.9 µH | ±20% | 8.1 A | - | Unshielded | 10.47mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
PL8702TFIXED IND 5.9UH 8.1A 10.47 MOHM iNRCORE, LLC |
0 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 5.9 µH | ±20% | 8.1 A | - | Unshielded | 10.47mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
|
PL8701NLTFIXED IND 3.5UH 9.4A 6.54MOHM SM iNRCORE, LLC |
0 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 3.5 µH | ±20% | 9.4 A | - | Unshielded | 6.54mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
PL8701TFIXED IND 3.5UH 9.4A 6.54MOHM SM iNRCORE, LLC |
0 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 3.5 µH | ±20% | 9.4 A | - | Unshielded | 6.54mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
|
PL9218NLTFIXED IND 68UH 1.45A 202MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 1.45 A | 1.6A | Shielded | 202mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
