Linear Voltage Regulator Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Voltage - Output | Current - Output | Voltage - Input | Regulator Type | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL80136EVAL1ZEVAL BOARD FOR ISL80136 |
0 |
|
Datasheet |
- | Box | Active | 1 - Single | 2.5V ~ 12V | 50mA | 6V ~ 40V | Positive Adjustable | Board(s) | ISL80136 |
|
|
ISL80138EVAL1ZEVAL BOARD FOR ISL80138 |
0 |
|
Datasheet |
- | Box | Active | 1 - Single | 2.5V ~ 12V | 150mA | 6V ~ 40V | Positive Adjustable | Board(s) | ISL80138 |
|
LP38856-1.2EVALEVAL BOARD FOR LP38856 |
4 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 1.2V | 3A | 3V ~ 5.5V | Positive Fixed | Board(s) | LP38856 |
|
LP3991TL-1.8EVEVAL BOARD FOR LP3991 |
1 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 1.8V | 300mA | 1.65V ~ 4V | Positive Fixed | Board(s) | LP3991 |
|
|
LP5952TL-1.5EVEVAL BOARD FOR LP5952 |
0 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 1.5V | 350mA | 3V ~ 5.5V | Positive Fixed | Board(s) | LP5952 |
|
|
LP5952TL-1.8EVEVAL BOARD FOR LP5952 |
0 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 1.8V | 350mA | 3V ~ 5.5V | Positive Fixed | Board(s) | LP5952 |
|
|
LP38512TS-1.8EVEVAL BOARD FOR LP38512 |
0 |
|
Datasheet |
- | Bulk | Obsolete | 1 - Single | 1.8V | 1.5A | 2.25V ~ 5.5V | Positive Fixed | Board(s) | LP38512 |
|
|
SMP-TPS7A3001-MVKEVAL BOARD FOR TPS7A3001 |
0 |
|
Datasheet |
MAVRK | Box | Obsolete | 1 - Single | -2.5V | 200mA | -3V ~ -36V | Negative Adjustable | Board(s) | TPS7A3001 |
|
|
SMP-TPS7A4001-MVKEVAL BOARD FOR TPS7A4001 |
0 |
|
Datasheet |
MAVRK | Box | Obsolete | 1 - Single | 12V | 50mA | 7V ~ 100V | Positive Adjustable | Board(s) | TPS7A4001 |
|
|
SMP-TPS7A4901-MVKEVAL BOARD FOR TPS7A4901 |
0 |
|
Datasheet |
MAVRK | Box | Obsolete | 1 - Single | 3.3V | 150mA | 3V ~ 36V | Positive Adjustable | Board(s) | TPS7A4901 |
|
|
ISL80101AEVAL2ZEVAL BOARD FOR ISL80101A |
0 |
|
Datasheet |
- | Box | Active | 1 - Single | 0.8V ~ 5V | 1A | 2.2V ~ 6V | Positive Adjustable | Board(s) | ISL80101A |
|
|
ISL80121-5EVAL2ZEVAL BOARD FOR ISL801215 |
0 |
|
Datasheet |
- | Box | Active | 1 - Single | 5V | 1A | 5V ~ 6V | Positive Fixed | Board(s) | ISL80121-5 |
|

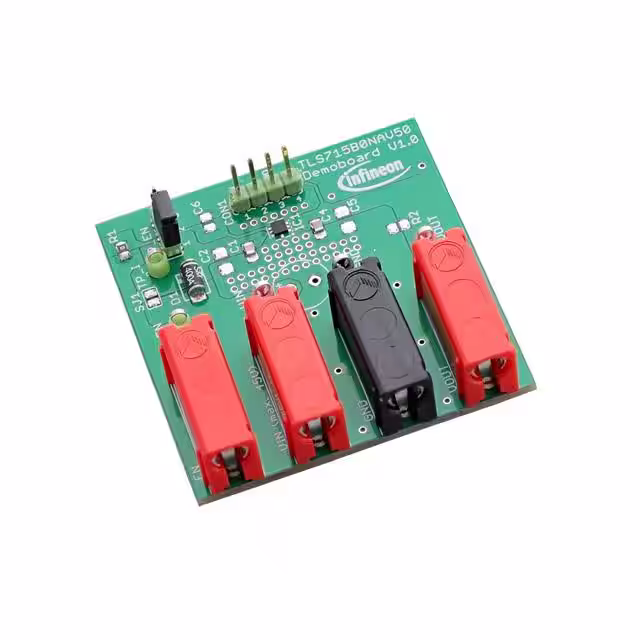

TLS715B0TSNPBOARDTOBO1EVAL BOARD FOR TLS715B0NAV50 |
2 |
|
- |
OPTIREG™ | Box | Discontinued at Digi-Key | 1 - Single | 5V | 150mA | 4V ~ 40V | Positive Fixed | Board(s) | TLS715B0NAV50 |
|
LP5952LC-1.5EVEVAL BOARD FOR LP5952 |
0 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 1.5V | 350mA | 3V ~ 5.5V | Positive Fixed | Board(s) | LP5952 |
|
|
ISL80111EVAL1ZEVAL BOARD FOR ISL80111 |
0 |
|
Datasheet |
- | Box | Active | 1 - Single | 0.8V ~ 3.3V | 1A | 1V ~ 3.6V | Positive Adjustable | Board(s) | ISL80111 |
|
LP3991TL-1.2EVEVAL BOARD FOR LP3991 |
1 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 1.2V | 300mA | 1.65V ~ 4V | Positive Fixed | Board(s) | LP3991 |
|
MIC38300HYHL-EVEVAL BOARD FOR MIC38300 |
0 |
|
Datasheet |
HELDO™ | Box | Obsolete | 1 - Single | 1.8V | 3A | 3V ~ 5.5V | Positive Adjustable | Board(s) | MIC38300 |
|

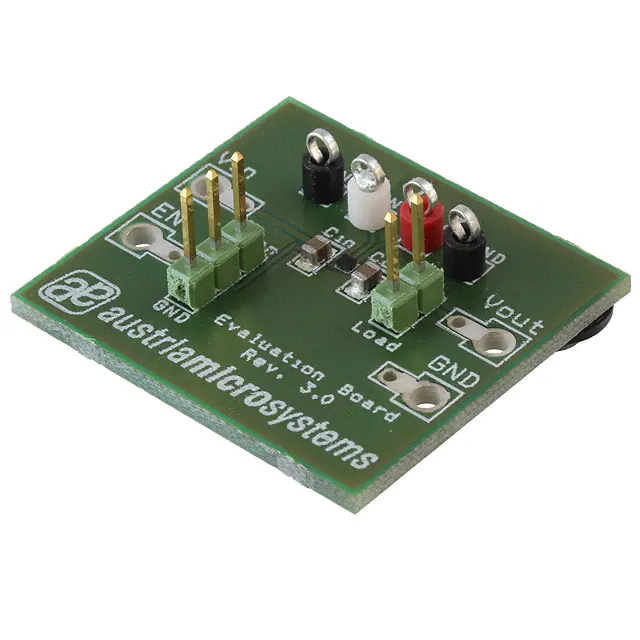

AS1369-WL-28_EK_STEVAL BOARD FOR AS1369 |
5 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 2.8V | 200mA | 2V ~ 5.5V | Positive Fixed | Board(s) | AS1369 |
|

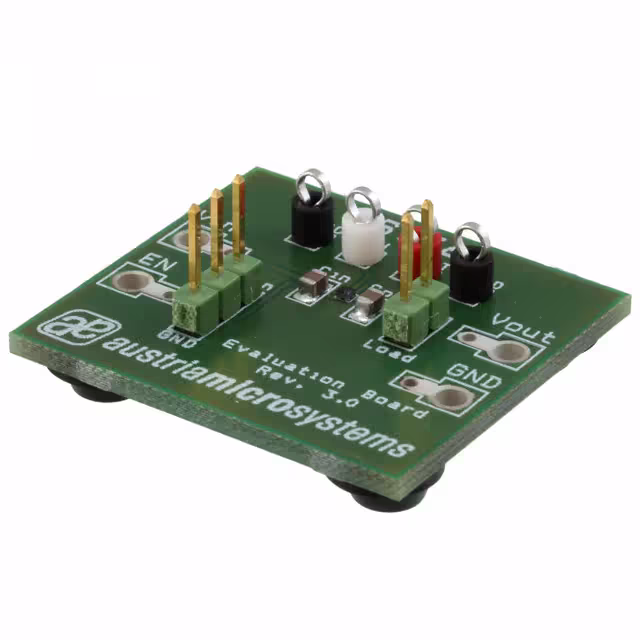

AS1369-WL-12_EK_STEVAL BOARD FOR AS1369 |
3 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 1.2V | 200mA | 2V ~ 5.5V | Positive Fixed | Board(s) | AS1369 |
|
AS1369-WL-13_EK_STEVAL BOARD FOR AS1369 |
3 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 1.3V | 200mA | 2V ~ 5.5V | Positive Fixed | Board(s) | AS1369 |
