Linear Voltage Regulator Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Voltage - Output | Current - Output | Voltage - Input | Regulator Type | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLS850B0TB33BOARDTOBO1EVAL BOARD FOR TLS850B0TBV33 |
3 |
|
Datasheet |
OPTIREG™ | Box | Active | 1 - Single | 3.3V | 500mA | 3V ~ 40V | Positive Fixed | Board(s) | TLS850B0TBV33 |
|
|

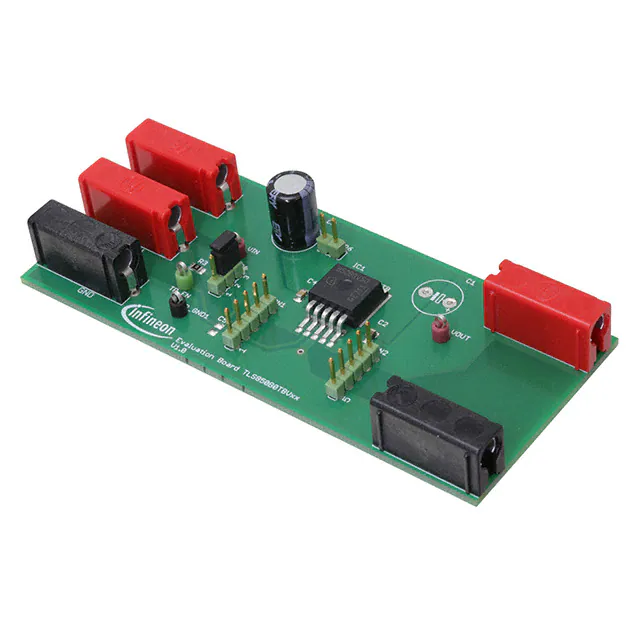

TLS850B0TB50BOARDTOBO1EVAL BOARD FOR TLS850B0TBV50 |
2 |
|
Datasheet |
OPTIREG™ | Box | Active | 1 - Single | 5V | 500mA | 3V ~ 40V | Positive Fixed | Board(s) | TLS850B0TBV50 |
|

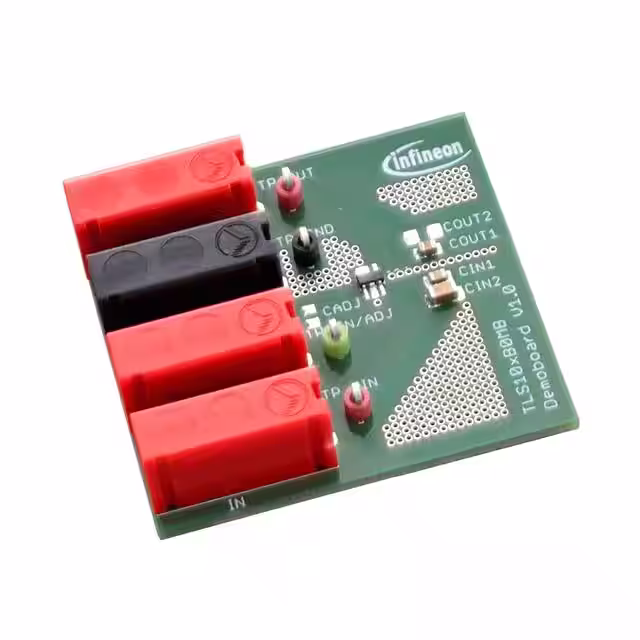

TLS102B0MBBOARDTOBO1EVAL BOARD FOR TLS102B0MB |
1 |
|
Datasheet |
- | Box | Active | 1 - Single | 2V ~ 14V | 20mA | 4V ~ 45V | Positive Adjustable | Board(s) | TLS102B0MB |
|

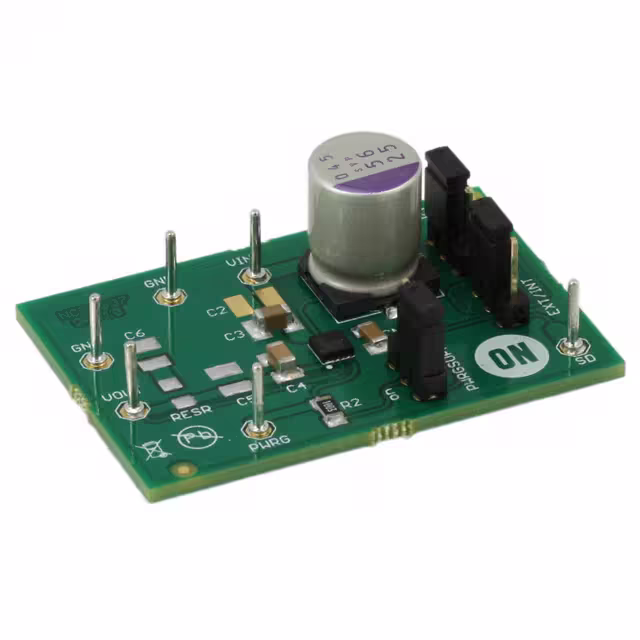

NCP3337MN330GEVBEVAL BOARD FOR NCP3337 |
4 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 3.3V | 500mA | 2.9V ~ 12V | Positive Fixed | Board(s) | NCP3337 |
|

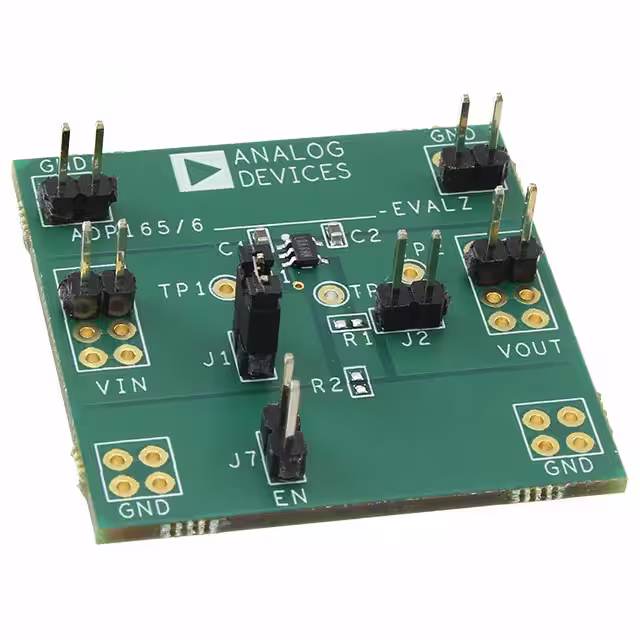

ADP166UJ-EVALZEVAL BOARD FOR ADP166 |
1 |
|
Datasheet |
- | Box | Active | 1 - Single | 3.3V | 150mA | 2.2V ~ 5.5V | Positive Adjustable | Board(s) | ADP166 |
|

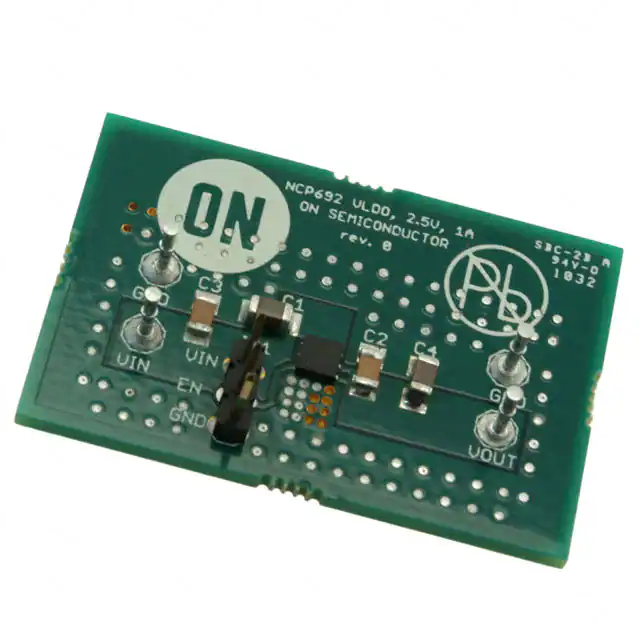

NCP692MN25T2GEVBEVAL BOARD FOR NCP692 |
2 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 2.5V | 1A | - | Positive Fixed | Board(s) | NCP692 |
|

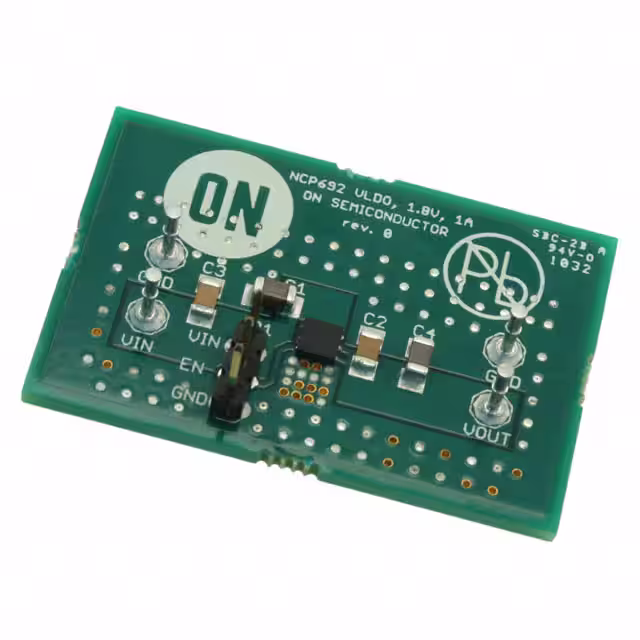

NCP692MN18T2GEVBEVAL BOARD FOR NCP692 |
1 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 1.8V | 1A | - | Positive Fixed | Board(s) | NCP692 |
|

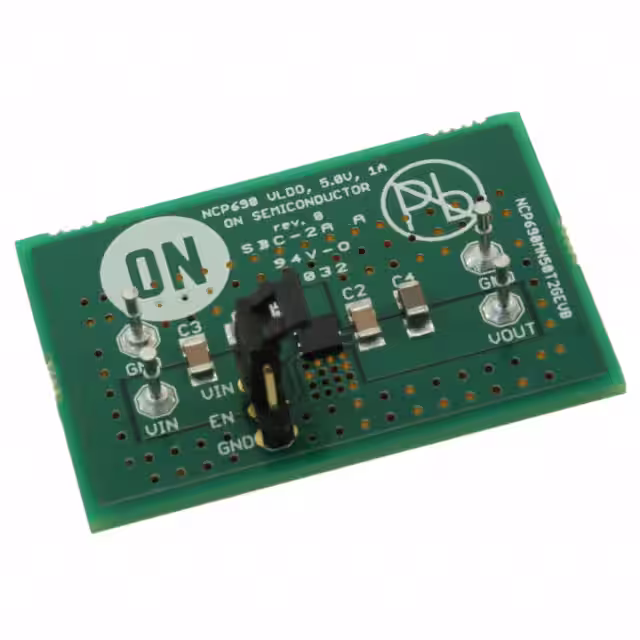

NCP690MN50T2GEVBEVAL BOARD FOR NCP690 |
0 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 5V | 1A | - | Positive Fixed | Board(s) | NCP690 |
|

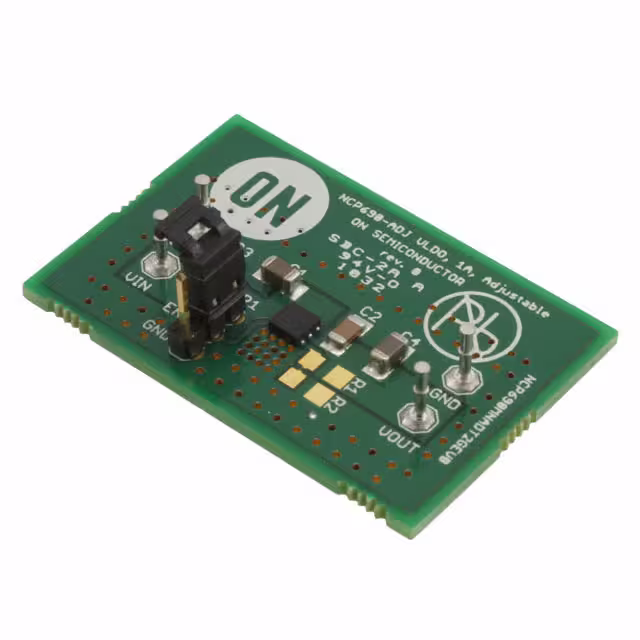

NCP690MNADT2GEVBEVAL BOARD FOR NCP690 |
0 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 1.25V ~ 5V | 1A | - | Positive Adjustable | Board(s) | NCP690 |
|
ADP1762-1.3-EVALZEVAL BOARD FOR ADP1762 |
1 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.3V | 2A | - | Positive Fixed | Board(s) | ADP1762 |
|

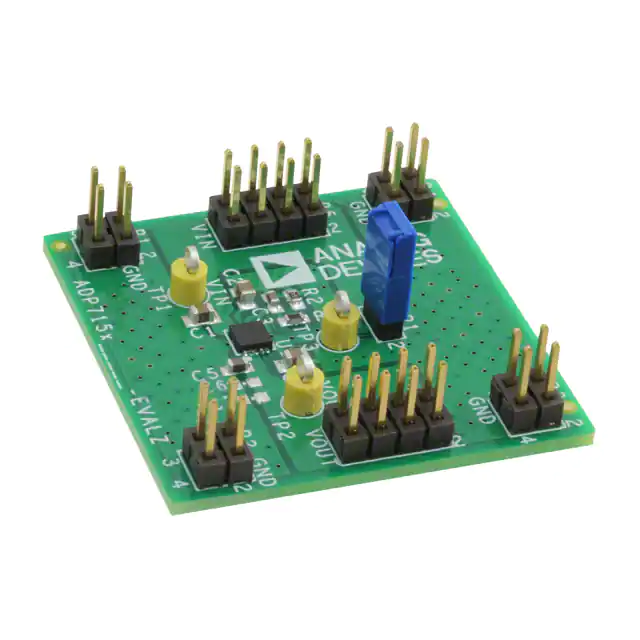

ADP7157CP-04-EVALZEVAL BOARD FOR ADP7157 |
1 |
|
Datasheet |
- | Box | Active | 1 - Single | - | 1.2A | 2.3V ~ 5.5V | Positive Adjustable | Board(s) | ADP7157 |
|
ADP1763-1.3-EVALZEVAL BOARD FOR ADP1763 |
1 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.3V | 3A | - | Positive Fixed | Board(s) | ADP1763 |
|
ADP1761-ADJ-EVALZEVAL BOARD FOR ADP1761 |
0 |
|
Datasheet |
- | Box | Active | 1 - Single | 0.5V ~ 1.5V | 1A | - | Positive Adjustable | Board(s) | ADP1761 |
|
SCP-ADP7182-EVALZEVAL BOARD FOR ADP7182 |
0 |
|
Datasheet |
SCP | Bulk | Active | 1 - Single | -27.58V | 200mA | -2.7V ~ -28V | Negative Adjustable | Board(s) | ADP7182 |
|

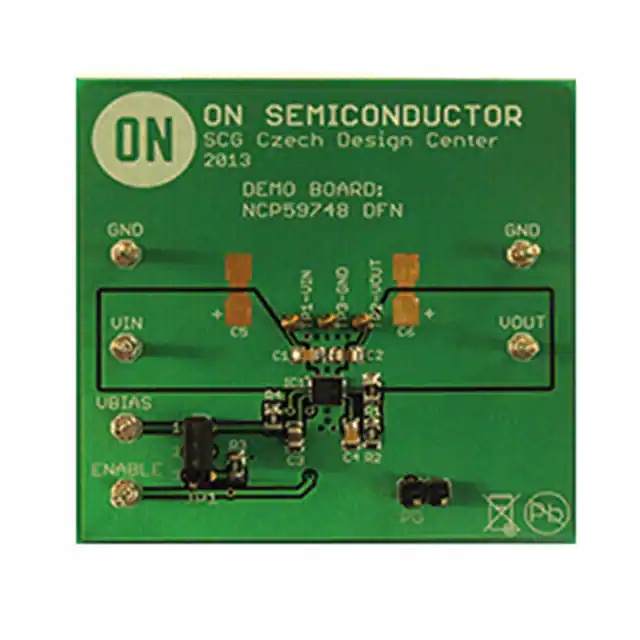

NCP59748MN1ADJTBGEVBEVAL BOARD FOR NCP59748 |
1 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.2V | 1.5A | 1.5V | Positive Adjustable | Board(s) | NCP59748 |
|

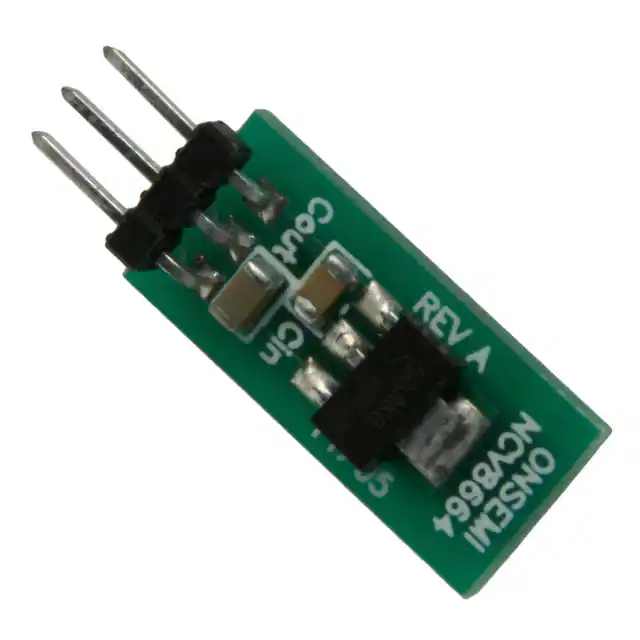

NV8664ST50T3GEVBEVAL BOARD FOR NV8664 |
0 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 5V | 150mA | 5.5V ~ 45V | Positive Fixed | Board(s) | NV8664 |
|

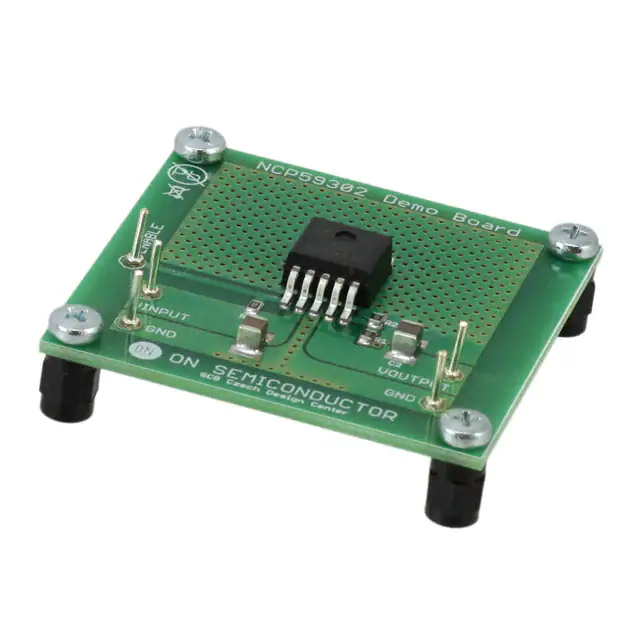

NCP59302DSADGEVBEVAL BOARD FOR NCP59302 |
0 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 2.5V | 3A | - | Positive Adjustable | Board(s) | NCP59302 |
|
ADP121CB-3.3-EVALZEVAL BOARD FOR ADP121 |
0 |
|
Datasheet |
- | Box | Active | 1 - Single | 3.3V | 150mA | 2.3V ~ 5.5V | Positive Fixed | Board(s) | ADP121 |
|

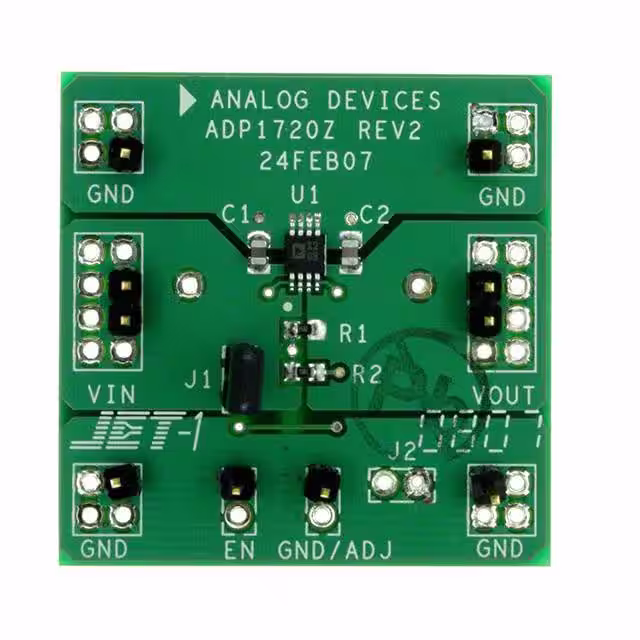

ADP1720-EVALZEVAL BOARD FOR ADP1720 |
0 |
|
Datasheet |
- | Box | Active | 1 - Single | 3V | 50mA | 4V ~ 28V | Positive Adjustable | Board(s) | ADP1720 |
|
ADP1710-EVALZEVAL BOARD FOR ADP1710AUJZ |
1 |
|
Datasheet |
- | Box | Active | 1 - Single | 0.8V ~ 5V | 150mA | 2.5V ~ 5.5V | Positive Adjustable | Board(s) | ADP1710AUJZ |
